Lanai Window Balances and Parts

A home owner from Venice, FL says:
October 8, 2019

I am looking for spring balance for "Versa- Sash" non-tilt window. Pictures attached. #3130 stamped on the balance. The metal portion is 32" long.

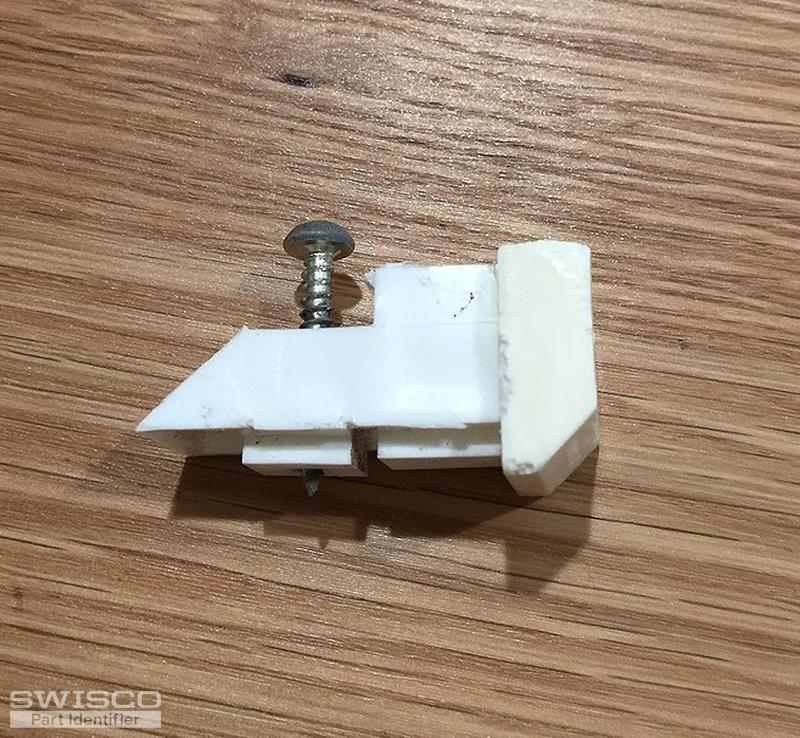

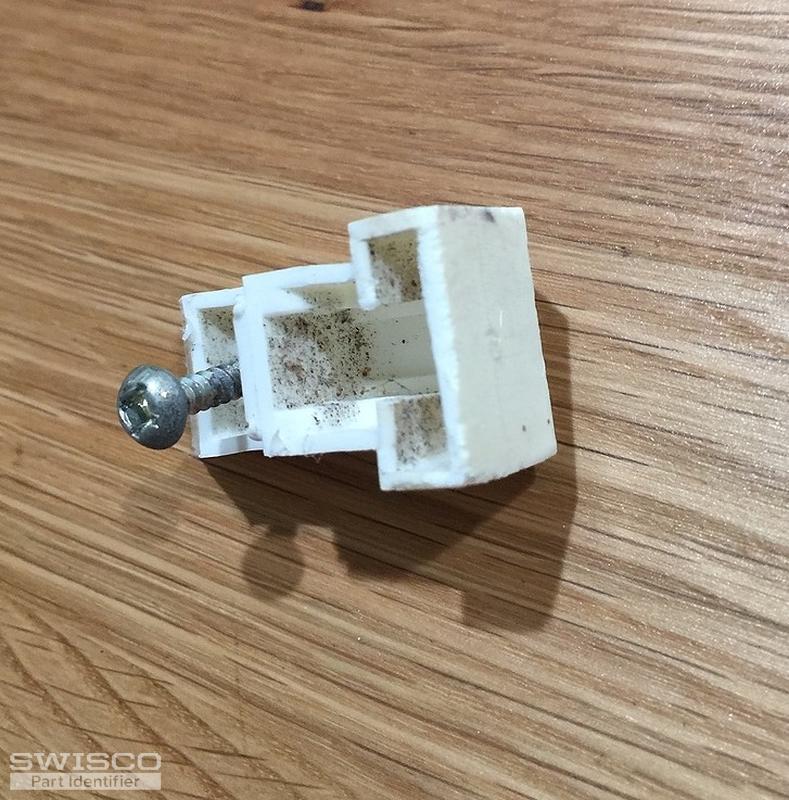

I also need the plastic part that screws to the top of the window and engages the balance. (I am not sure what they are called.).

Please reference the #3130 in your response.

(I am sending a separate request for a different window in our home.)

Thank You.

Don

Thumbnail of the uploaded file named IMG_2152.JPG
Thumbnail of the uploaded file named IMG_2153.JPG
Thumbnail of the uploaded file named IMG_2157.JPG
Thumbnail of the uploaded file named IMG_2164.JPG
Thumbnail of the uploaded file named IMG_2165.JPG
Profile picture of Bob
Bob from SWISCO responded:
October 14, 2019

Thanks for writing in, Don. See our S351-32 or S390-32. The only difference between these two balances is the 'depth' of the bottom nylon shoe, so compare both with your old hardware to see what matches best. You'll need a stamp option of 3130. For your Top Sash Guide, take a look at our 18-110. Compare the dimensions and see if this matches what you need.
32" Series 351 Channel Balance
32" Series 351 Channel Balance
S351-32
$11.52
32" Series 390 Channel Balance
32" Series 390 Channel Balance
S390-32
$11.52
Top Sash Guide, SeasonAll
Top Sash Guide, SeasonAll
18-110
$1.70
