Large patio door

Handy Person from 45 w grand ave Lakevilla IL

Jan 23, 2021 5:52 pm

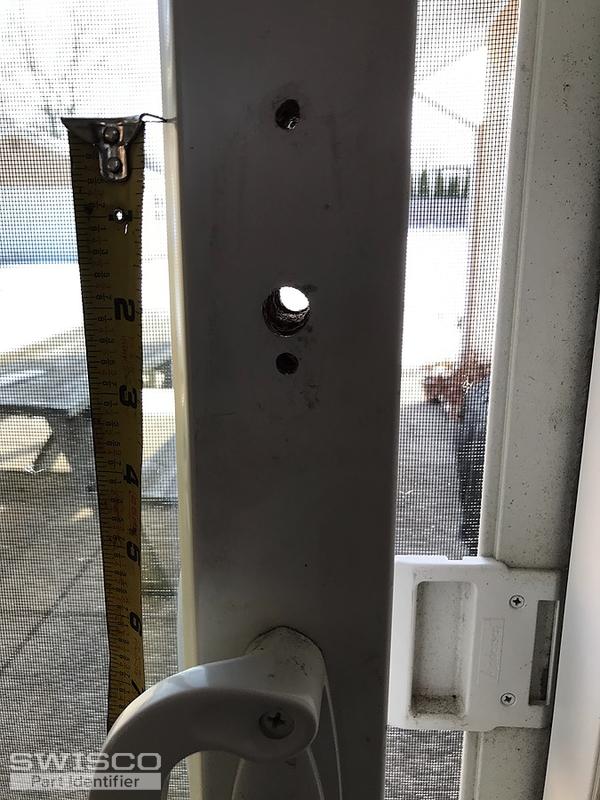

I am missing the lock mechanism for my 8 foot patio sliding door. I sent you for photographs hopefully you could identify the proper parts. Thank you

4 user uploaded images

4 Replies

Tom from SWISCO

Jan 26, 2021 10:17 am

Hello! Looks like you've got an Andersen brand door here. With that in mind, I recommend the 82-043 thumb latch and 82-037 mortise set. I think these parts will work very well for your door. Please let me know if you had any questions about them!

Handy Person from 45 w grand ave Lakevilla IL

Feb 1, 2021 9:27 am

These are the right parts for sure, however there are the same holes on the the other side of the door as well, probably for a locking mechanism. Is there a part like that available?

Tom from SWISCO

Feb 1, 2021 10:12 am

Sure, that would be either the 82-316 or 82-317, depending on what side you need. Handing for these key locks is determined from the outside looking in, based on the operating door; if I'm looking at your photos correctly, then the operating door is on the left, if I were standing outside. That means you want the 82-316.

Please correct me if I'm wrong about handing. I haven't had breakfast yet so my eyes could be playing tricks on me!
