Larson storm door part

Home Owner from Washington

Jul 20, 2021 10:22 pm

I am interested in a replacement part that looks like the attached photo for a Larson storm door. But I need a white one.

Thank you for your assistance.

1 user uploaded image

4 Replies

Tom from SWISCO

Jul 27, 2021 1:45 pm

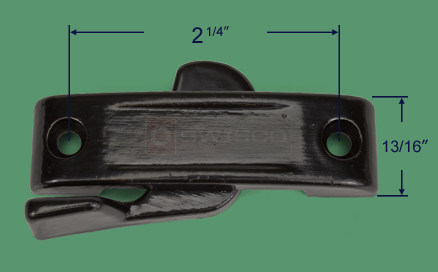

Your lock design is similar to our 90-272, though I'm concerned that the size might not be the same. The two most important dimensions to consider here are the overall width, which is 13/16" on ours, and the center-to-center hole spacing, which is 2-1/4" on ours. Refer to the diagram below and let me know if this would match. If it differs, tell me how and I will see if I can find something better.

Home Owner from Washington

Jul 30, 2021 6:33 pm

Thank you for your reply. I've measured the latch. The body is ½ inch deep, and the spacing between the screw holes is 1 11/16 inch.

At 2 ¼, I could drill new holes for yours to secure to, but I do not believe the depth will not work.

Tom from SWISCO

Aug 2, 2021 8:15 am

Thank you. Unfortunately, we do not have a lock that is as shallow as 1/2". That is very, very skinny. I am sorry that we cannot be of more help.

Your next best bet at this point is to contact the original manufacturer of the door directly.
