Latch from a HADCO window

A quick learner from Chicago says:
February 14, 2023
Hi I am searching for replacement latches for the latch in the picture with the broken slide piece. It is the longer of the two latches. I purchased a new latch (also pictured) from a local window manufacturer but the screw holes are not aligned and the new latch dimensions are smaller. The distance between the two screw holes is 2.25"
Thumbnail of the uploaded file named 24F5BE49-8BA9-4344-AD06-949A965EA851.jpeg
Thumbnail of the uploaded file named C0E2C054-5938-451A-8E0E-5BF6DC579D67.jpeg
Profile picture of Emily
Emily from SWISCO responded:
February 15, 2023

Hello!

I'm afraid we have no tilt latch with 2-1/4" hole center spacing. Can you verify that dimension for us? You'll want to measure from the center of each installation hole, not the edge.

A quick learner from Chicago says:
February 16, 2023
Hi Emily, I am waiting to get another sample of the broken latch. When I get one I will take measurements and get back to you.
Profile picture of Emily
Emily from SWISCO responded:
February 17, 2023

Sounds good! I'll be here to help.

A quick learner from Chicago says:
February 23, 2023

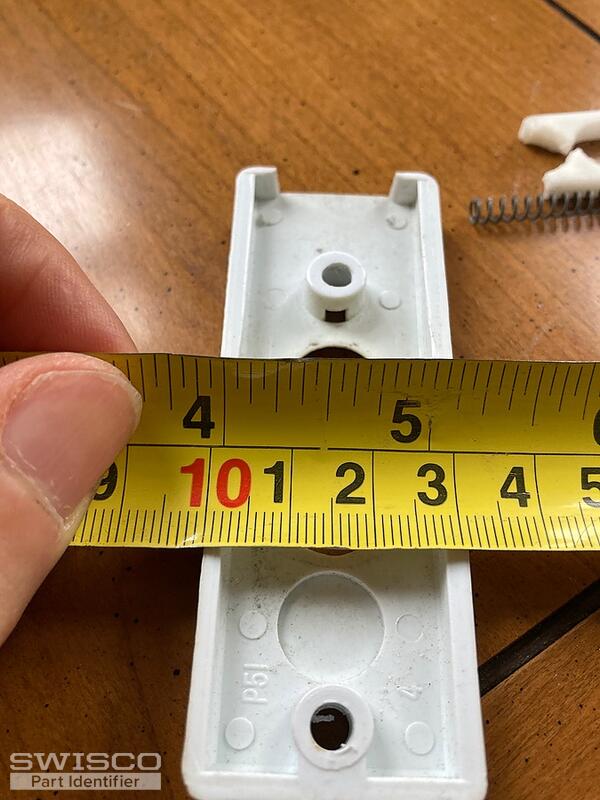

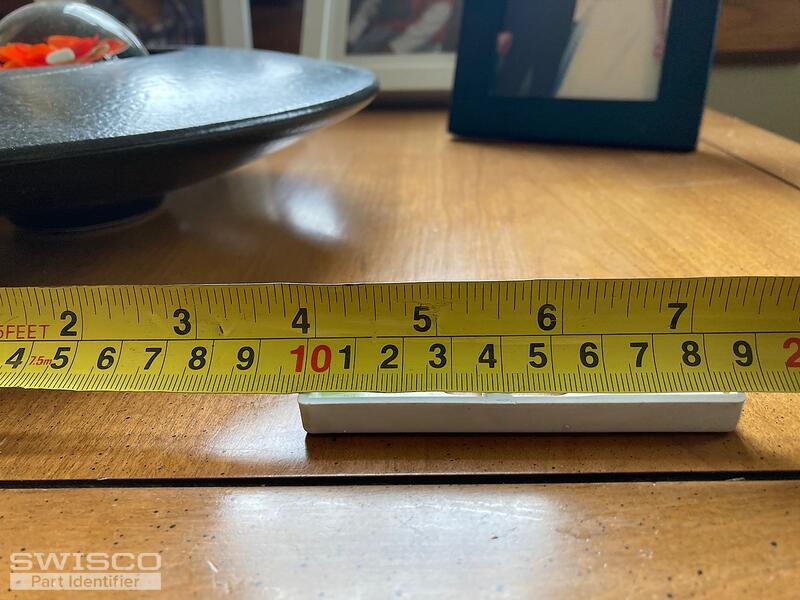

Hi Emily, I measure the hole to hole distance at 58mm, the edge to edge width at 85mm, and edge to edge depth at 30mm. There is a marking in the plastic that reads "P5I" and another "4".

Keeping my fingers crossed you have a match.
Thumbnail of the uploaded file named 95B12E79-65A8-4A4C-9E8F-7FEEED01521A.jpeg
Thumbnail of the uploaded file named B629FF99-55B3-45F2-82D4-B369D57D9E80.jpeg
Thumbnail of the uploaded file named 754A8EE2-785C-4FA1-B0C3-EB9DCDD7C516.jpeg
Profile picture of Emily
Emily from SWISCO responded:
February 24, 2023

Thank you for getting back to me. We don't have a tilt latch with these specifications, unfortunately. It appears the 26-078 and 26-079 comes close but this measures 2-5/16" on installation hole centers. Your best bet may be to contact the original manufacturer of the window directly. I am very sorry for the inconvenience.

A quick learner from Chicago says:
February 24, 2023
Hi Emily it's close enough I'd like to give it a shot. Even if the holes for the latch don't align, I bet the broken slide inserts are close enough in size I could replace those and use them with the old latches. I can purchase the parts directly from the website?
Thanks for all your help!
Profile picture of Emily
Emily from SWISCO responded:
February 24, 2023

Yes, all orders can be placed directly on our website at your convenience! You can also view our return policy here just in case!

LH Top Tilt Latch, 2-5/16"
LH Top Tilt Latch, 2-5/16"
26-078
$2.32
RH Top Tilt Latch, 2-5/16"
RH Top Tilt Latch, 2-5/16"
26-079
$2.32
