Latch mechanism for my window

Quick Learner from Rhode Island

Feb 13, 2016 5:23 pm

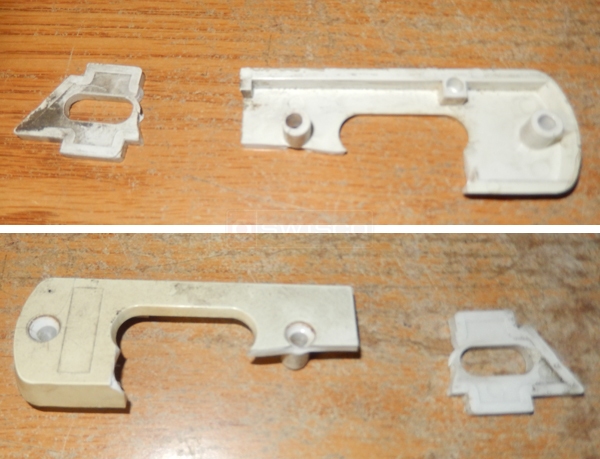

I am stumped as to what manufacturer made my window. I am hoping that with the two pictures I've provided you might be able to locate this sash part for me. It is the window latch that locks the window back once you have tilted it in to clean it or open it. Thanks!

4 Replies

Paul from SWISCO

Feb 15, 2016 3:19 pm

We might be able to help, but I will need some more measurements. Can you give me the distance between the two screw holes (center to center) and the total width and length of the housing? Thanks!

Quick Learner

Feb 17, 2016 5:54 pm

The housing is 2 1/2 inches between the two screw holes from the centers. It looks to be 3 1/2 inches long from the rounded side to the straight side. I'm not sure if this is the way it's suppose to be with it being straight on one side or not. It's because it's broke that i can't tell. This housing is 1 1/14 inch wide.

Paul from SWISCO

Feb 18, 2016 11:31 am

Thank you! Start by looking at our 26-439. This may be the latch you want. It's very close to your measurements.
