Lavatory hardware question

A handy person from Kittery Maine says:

September 15, 2014

I've attached 3 photos to show what we have for doors. If you have a product that will fit I'd love to order 3. The 10-559 did not work, the return I sent in will arrive on Monday.
Cheers,
Sarah

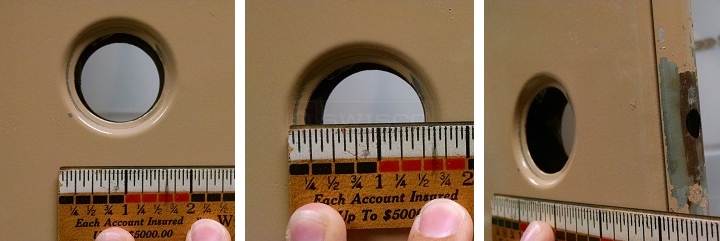

User submitted photos of lavatory hardware.

Dave Sr. from SWISCO responded:

September 17, 2014

Thanks for posting, Sarah. Can you specify how the 10-559 failed? Do you also have the original knob assembly that went on this door? Seeing that would help. In the meantime, could our 10-558 work? This is a straight bolt, not an off-set type like the 10-559 .

A quick learner says:

September 18, 2014

I do not have an original knob for the door but it is the same design as your 10-559 . The bolt was the issue with that part as it was not long enough to reach the almost 3 inches to make it through the door to latch (see 3rd picture). I don't know that the straight vs bent makes much difference as much as the overall length was too short.

Dave Sr. from SWISCO responded:

September 29, 2014

Looking at the measurements in your pictures, it looks like a fairly standard back set and hole diameter. The length should have been enough. Either way, we haven't been able to find these latches with a longer length rod. The only thing I can think of is that the offset prevented it from reaching the hole.

Concealed Latch Knob Assembly

10-558

$7.72

Concealed Latch Knob Assembly

10-559

$7.99
