Lawson Sash Guide

A handy person from Florida says:
June 5, 2021

I have Lawson windows from 1999.

This looks somewhat like the 18-201. Hopefully the necessary dimensions are close enough.

From the front the top is 7/8" and length is 1-7/16" overall. The screw hole is 7/8" from the very top or 13/16" from bottom of top header. The top notch is 1/2" from the very top without missing tang.

From the side the top is 1/2" and the top notch is 7/16" and the bottom section is 5/16".

Thank you.

William

Thumbnail of the uploaded file named 20210605_104559-1_resized.jpg
Thumbnail of the uploaded file named 20210605_121949_resized.jpg
Thumbnail of the uploaded file named 20210605_122022_resized.jpg

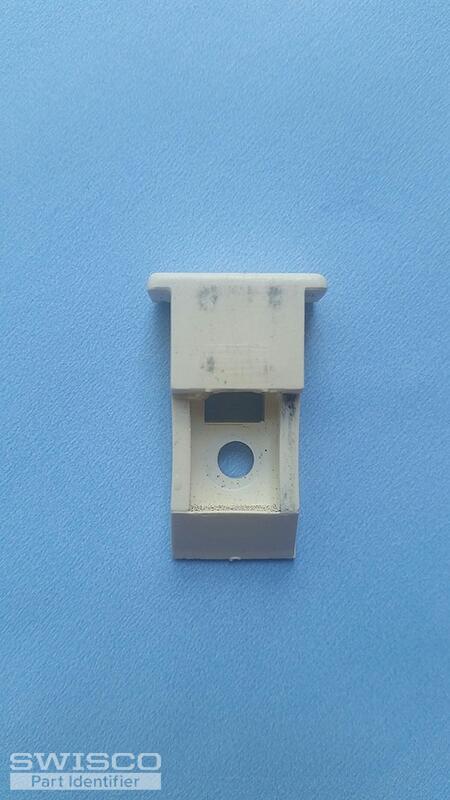

Thumbnail of the uploaded file named 20210605_122002_resized.jpg
Profile picture of Emily
Emily from SWISCO responded:
June 9, 2021

Hi, William.

I agree, this reminds me of our 18-201. Just be sure to double check your dimensions and compare them to ours.

Dimensions for 18-201
Dimensions for 18-201
Alternate view of 18-201
Alternate view of 18-201
5/8" Sash Guide, Lawson
5/8" Sash Guide, Lawson
18-201
$1.33
How to Replace a Top Sash Guide [1080p]
How to Replace a Top Sash Guide [1080p]
VIDEO
WATCH >
