Lawson Window Stabilizer

Quick Learner from Fix it myself, need to order part

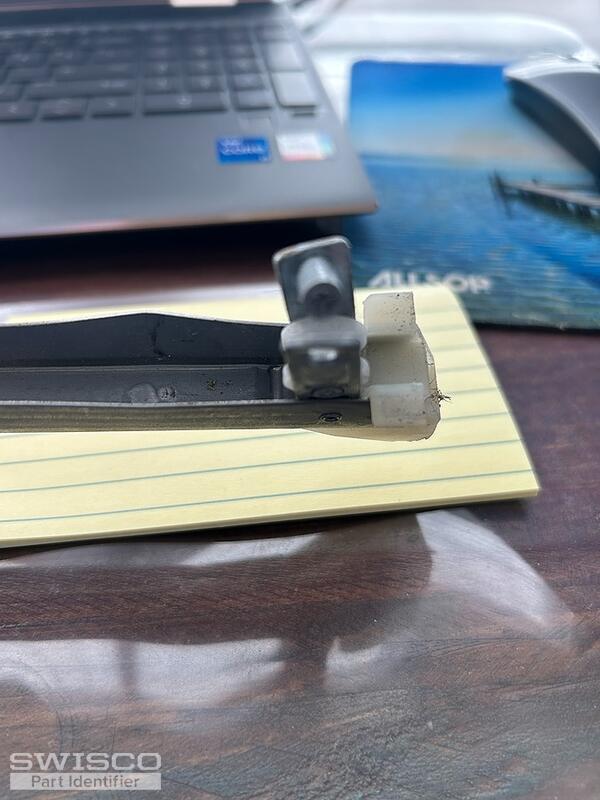

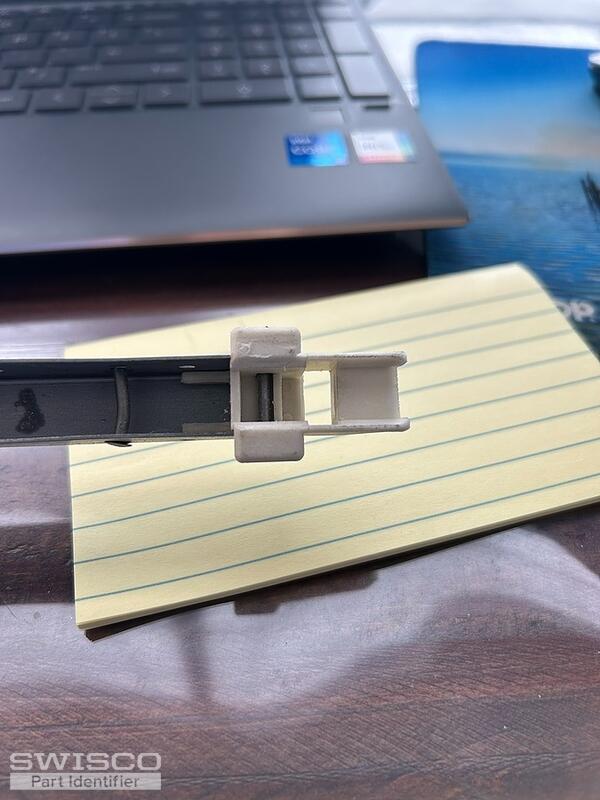

How do I know which stabilizer? Metal is 30 inches long. See photos
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. This looks like either an S380-30 or S385-30 Channel Balance. The only difference between these two balances is the depth of that bottom nylon shoe, or the measurement from 'heel' to 'toe'. See the diagram below for reference. Compare both options with your old balance to determine what matches best.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

You then need to choose a stamp option, which designates the strength of the balance. Your old balance's stamp of 29DS38 is unlike any in our selection; however, the '38' should denote the weight of the window sash that these balances support, 38 pounds. If that is the case, then select our stamp option of 2965, which designates a balance that can support a window sash in the weight range of 35 through 39 pounds. Let us know if you have further questions.
