Lawson channel balance replacement

A quick learner from Jupiter FL says:
January 19, 2020

Good Afternoon,

I have some Lawson 3520 36" channel balances I need to order. Just want to make sure I order the correct ones. The top and bottom pieces do not look the same on your web site. Please let me know which ones I need to order pictures attached.

Thank you,

John

Thumbnail of the uploaded file named IMG_2282.JPEG
Thumbnail of the uploaded file named IMG_2291.JPG
Thumbnail of the uploaded file named IMG_2305.JPEG

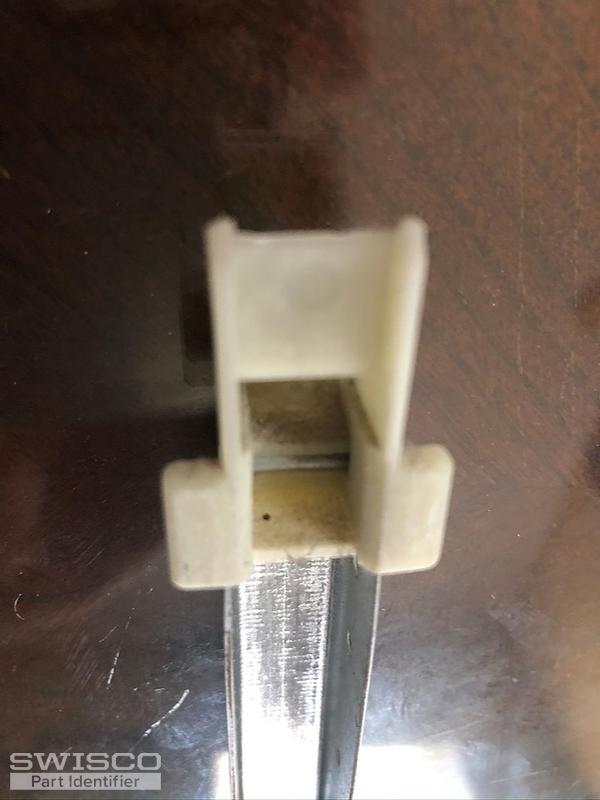

Thumbnail of the uploaded file named IMG_2306.JPEG

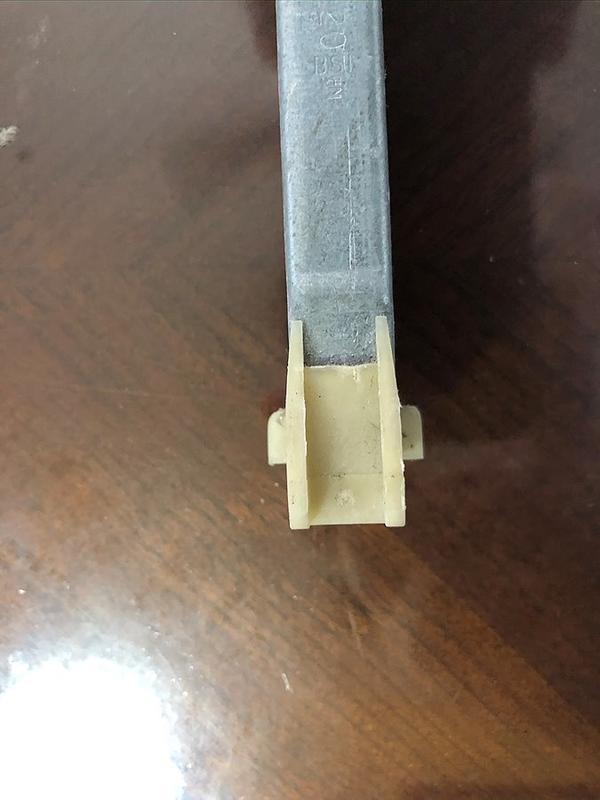

Thumbnail of the uploaded file named IMG_2304.JPEG
Profile picture of Casey
Casey from SWISCO responded:
January 22, 2020

Hey there, John. Have a look at both our S380-36 and S385-36 channel balance. You will need to measure the 'depth' of your bottom balance shoe to determine which of the two balances is the better match. The 'depth' measurement of the bottom shoe for the Series 380 is 1" and for the Series 385 is 1-3/32". Whichever one chosen will use a 3520 option that holds up a sash weight of 13-18 pounds.
A quick learner from Jupiter FL says:
January 23, 2020
Thanks that answers my question.
36" Series 380 Channel Balance
36" Series 380 Channel Balance
S380-36
$12.27
36" Series 385 Channel Balance
36" Series 385 Channel Balance
S385-36
$12.27
