Lawson series SH-7500

Question

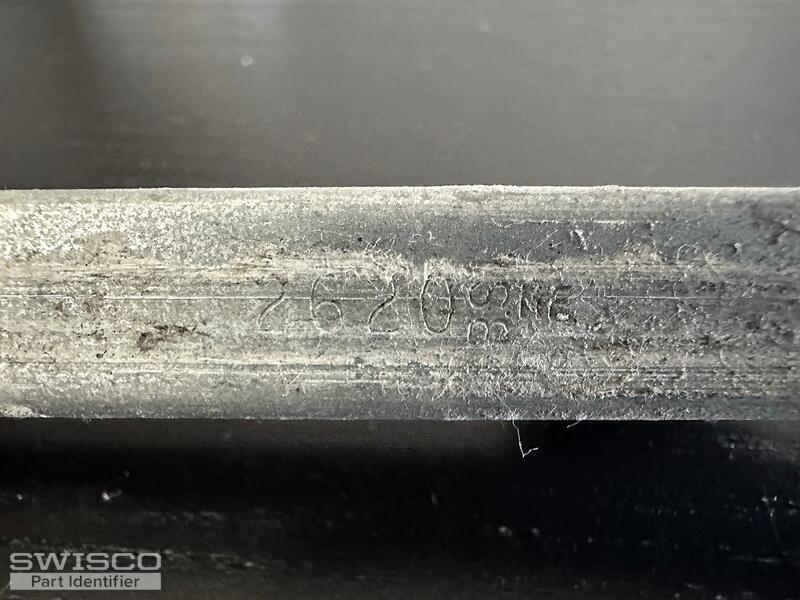

Hello, the metal channel is 27 inch in length and about 9/16 inch in width. I have accidentally broken the bottom clip (which holds the string). The description printed on the side is 2620. Would i need to replace both springs for the window or just one if the other one works fine? Thank you.

Casey · Accepted Answer

With this combination of attachments, you may have either the S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. If your shoe measures 7/8" deep, you would need the 15-029, which we can supply through a custom order.

Comparison of the S378, S380 and S385 balance shoes.

Dimensions for 15-029

You'll also need 2620 spring strength options for your replacement balances. It is also important to replace the balances on both sides so that the sash is equally supported. Thank you and let us know if you have any other questions or concerns.
