Elson NW bedroom window
Handy Person from Littleton, CO
May 6, 2023 9:04 am

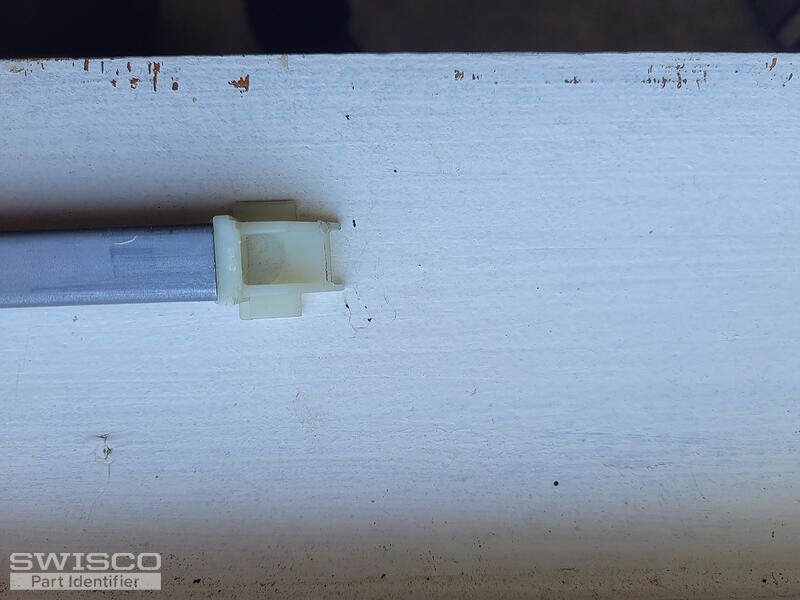

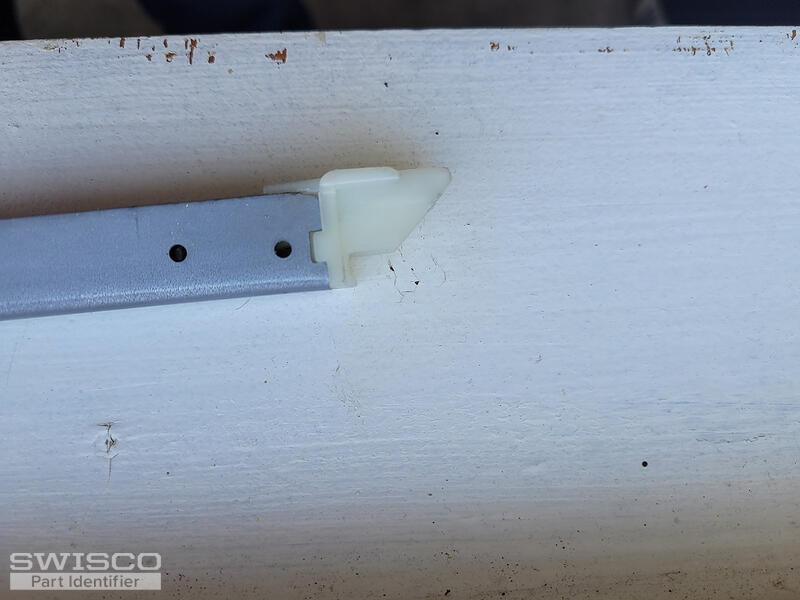

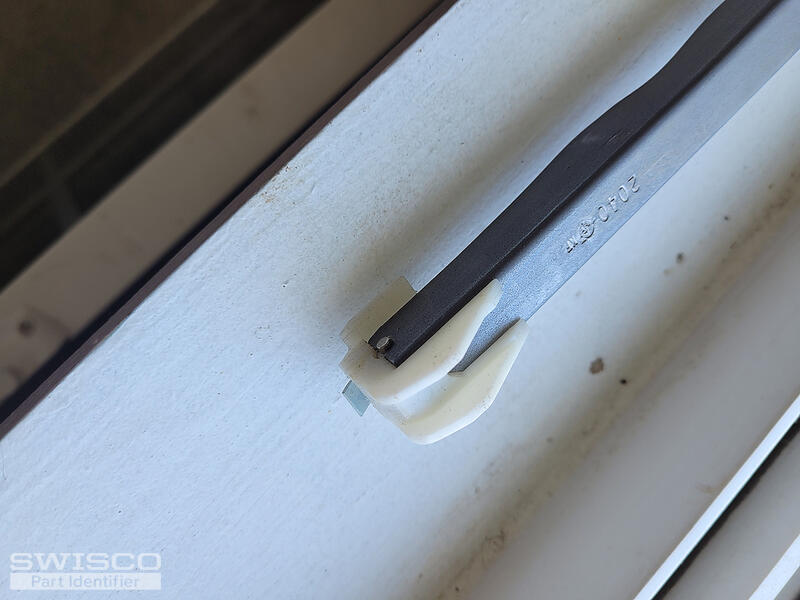

Lee has three windows that need new channel balances. The photos are of a 2040 balance that measures 21 inches long. There are two windows that use a 2640 balance that measures 27 inches long. I have a couple of other photos, but reached the upload limit. I will send them on second upload.
5 user uploaded images
3 Replies
Handy Person from Littleton, CO
May 6, 2023 9:08 am

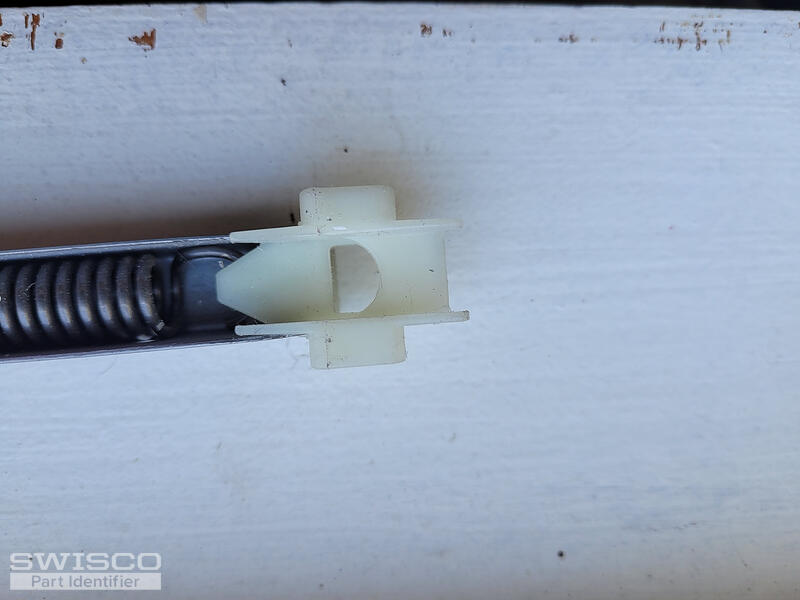

These are the last two photos I took. What I noticed is that most of the top and bottom channel balance shoes I've seen are riveted on. Mine appear to be held in place with the spring.
2 user uploaded images
Casey from SWISCO
May 8, 2023 4:10 pm
Hello,
We can supply your replacement balances but it will need to be a custom order due to the length, extended travel pulley system and unique combination of end attachments. We just sent over an order link and price quote for two 20-7/8" and four 26-7/8" long balances that you requested. Take a look and let us know if you need anything else. Thank you!
