Left Side Window Crank Assembly

A quick learner from Morganton, NC says:

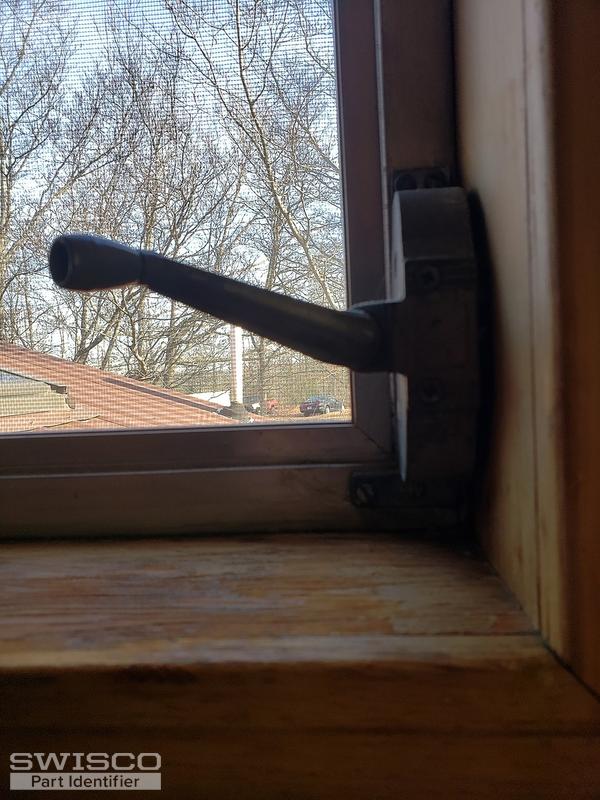

Need to replace a broken left side window crank for an old metal window.
Thumbnail of the uploaded file named 20191207_155242.jpg
Thumbnail of the uploaded file named 20191220_145052.jpg
Thumbnail of the uploaded file named 20191220_145058.jpg
Thumbnail of the uploaded file named 20191220_145119.jpg
Profile picture of Tom
Tom from SWISCO responded:

I'm afraid we don't have an exact match for this operator. One of ours may work as a substitute, but I'm not sure what to recommend. Could I see a picture of the link arm? It's currently obscured in your photos. You'll have to remove the operator from the window first so that we can see it clearly.

Can you also tell me the distance between the center of one of the top holes to the center of one of the bottom holes? Thanks!

A quick learner from Morganton, NC says:

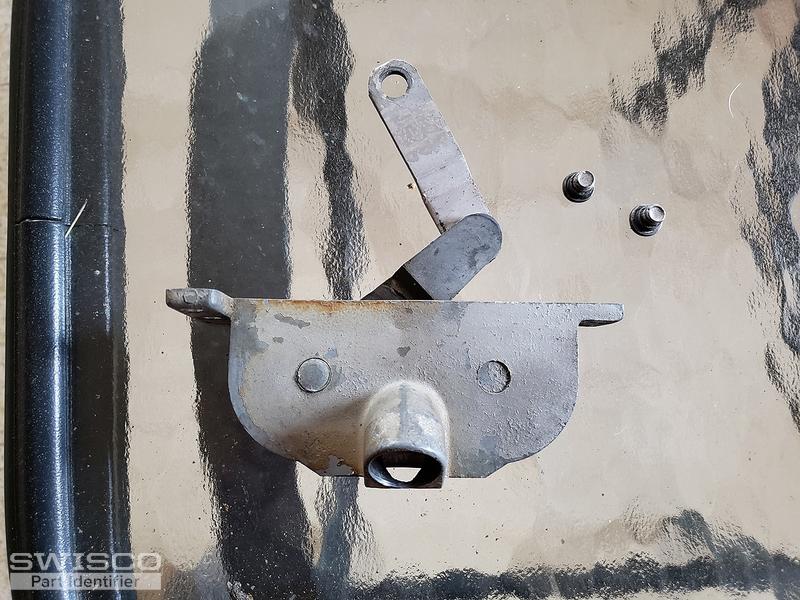

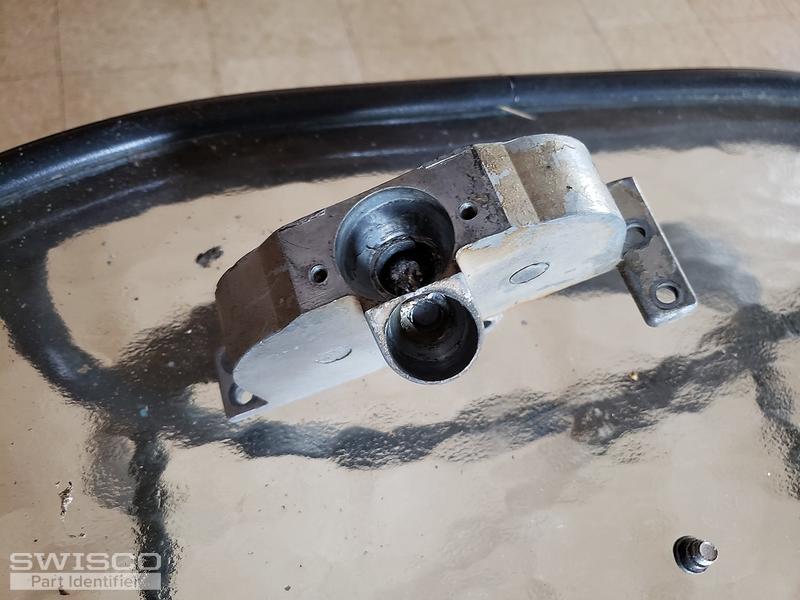

The distance from center to center between the 2 holes is 5.25". The arm is 3.125" long and 2.5" from center hole to center hole.
Thumbnail of the uploaded file named 20191227_143518.jpg
Thumbnail of the uploaded file named 20191227_143552.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thank you! This is definitely an older style. The best option I was able to find was our 39-057 . This has a similar installation hole pattern with the same distance (5-1/4"), and perhaps more importantly it seems to have the same kind of link arm. The length isn't exactly the same but that shouldn't matter too much; what does matter is that it has the same kind of offset and it has a large 3/8" diameter hole. Look it over and let me know what you think.

A quick learner from Morganton, NC says:
This looks like the right one. Should I just go ahead and order it if the website?
Profile picture of Tom
Tom from SWISCO responded:

Sure, you can place your order whenever you wish. Just in case it's not a match, you may also want to review our return policy here . You can always get a refund if it doesn't work.
