I need to replace these in most of my windows. Left and right.
Many thanks. Simon

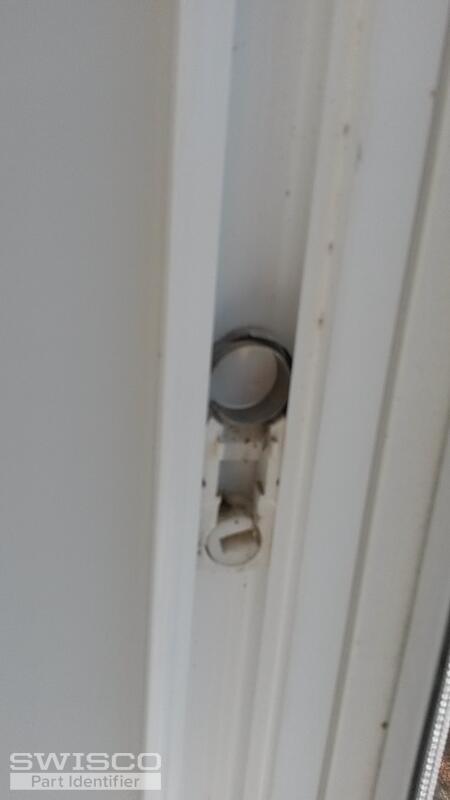

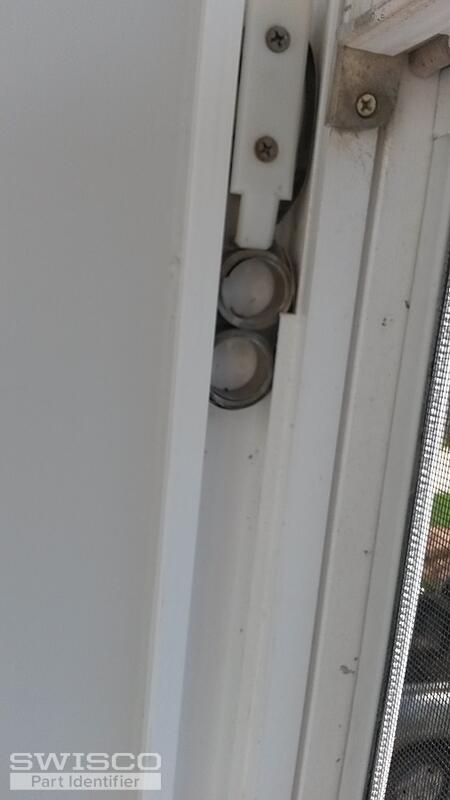

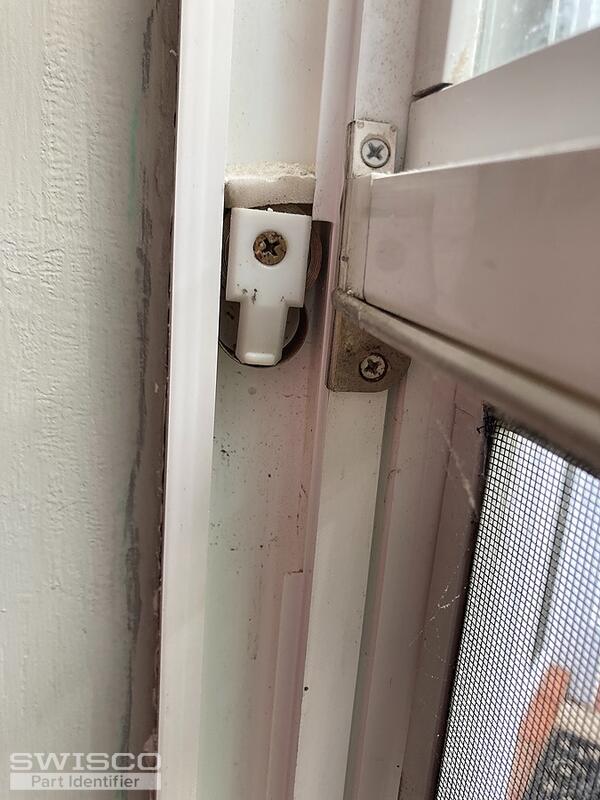

Left side coil balance
Home Owner from Gastonia NC
May 9, 2021 7:33 am
2 user uploaded images
9 Replies
Emily from SWISCO
May 10, 2021 11:05 am
Hi there!
We can help but we'll need to see your pivot shoe removed from your window, along with dimensions, to compare to our inventory. If we can identify the pivot shoe, that will tell us the coils and accessories that you'll need.
Thank you!
Home Owner from Gastonia NC
May 11, 2021 9:47 am

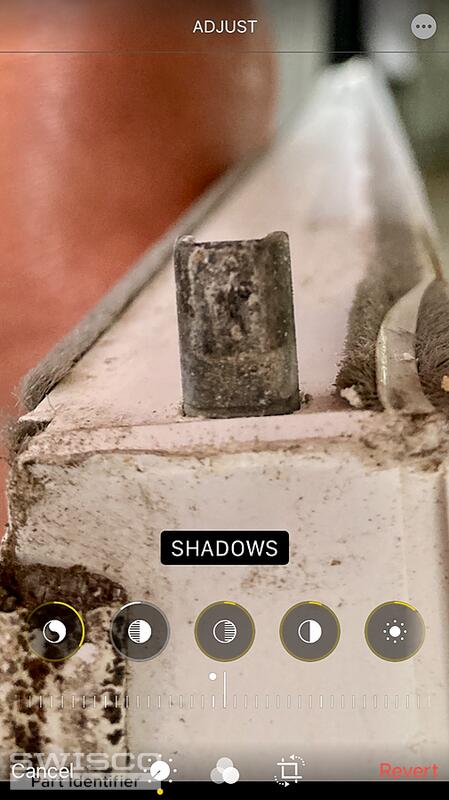

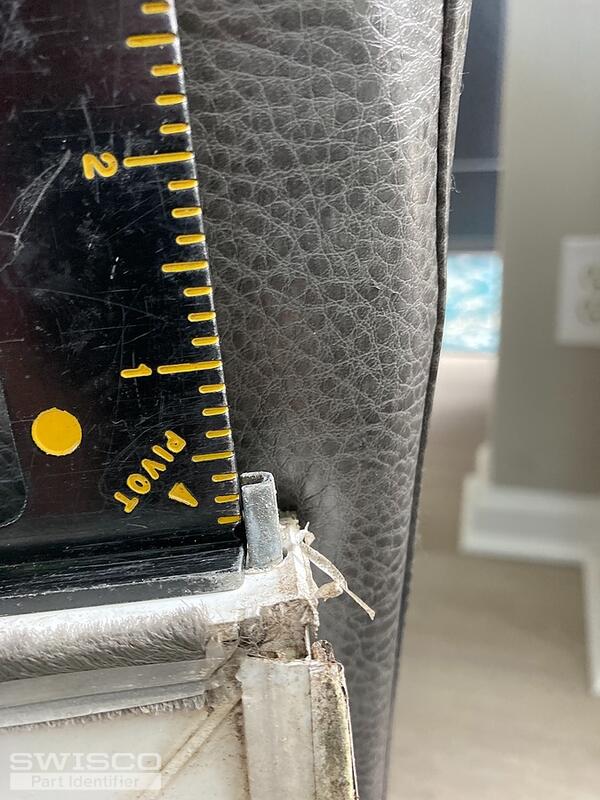

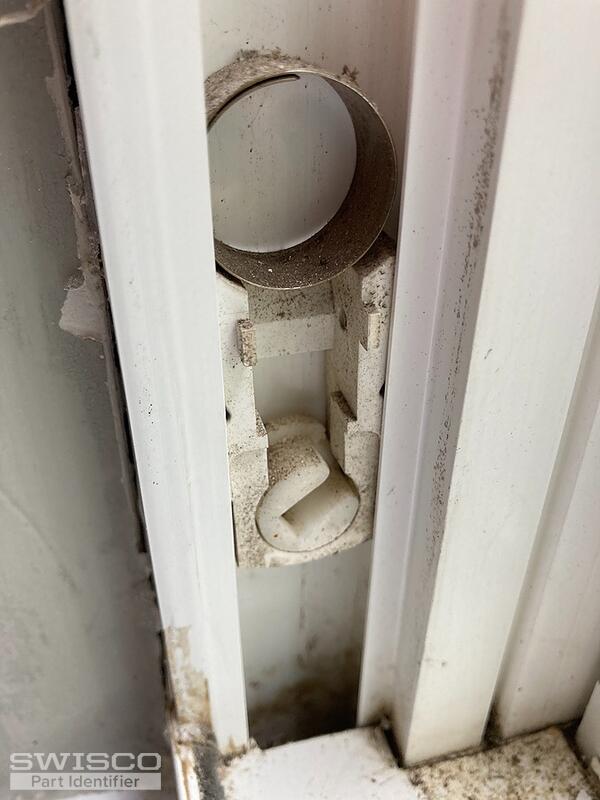

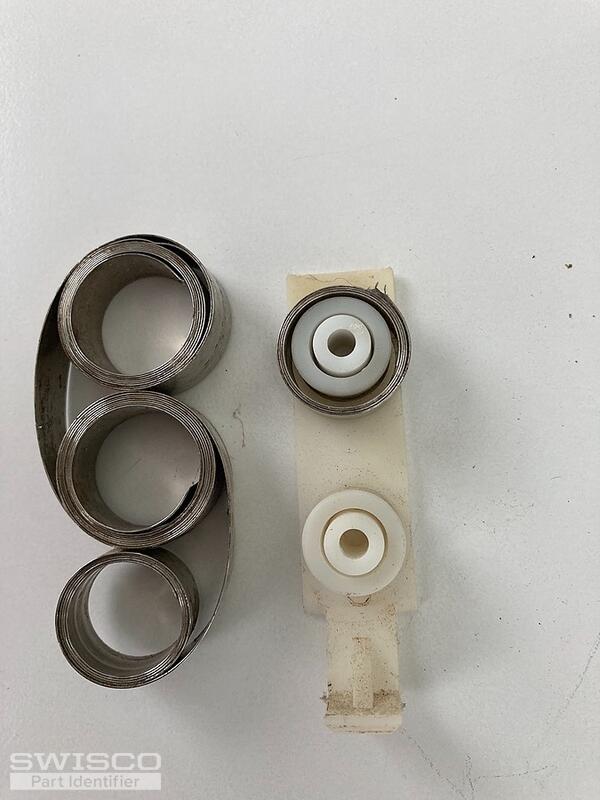

Many thanks for contacting me. Here are pics. A small metal tube sticks out of windows which is the pivot. I also enclosed pics of smaller window coil mechanism.
Any help would greatly appreciated. I will need to install 2 small window and 13 larger ones. Both left and right. Thanks again, Simon
Any help would greatly appreciated. I will need to install 2 small window and 13 larger ones. Both left and right. Thanks again, Simon
4 user uploaded images
Home Owner from Gastonia NC
May 11, 2021 12:49 pm

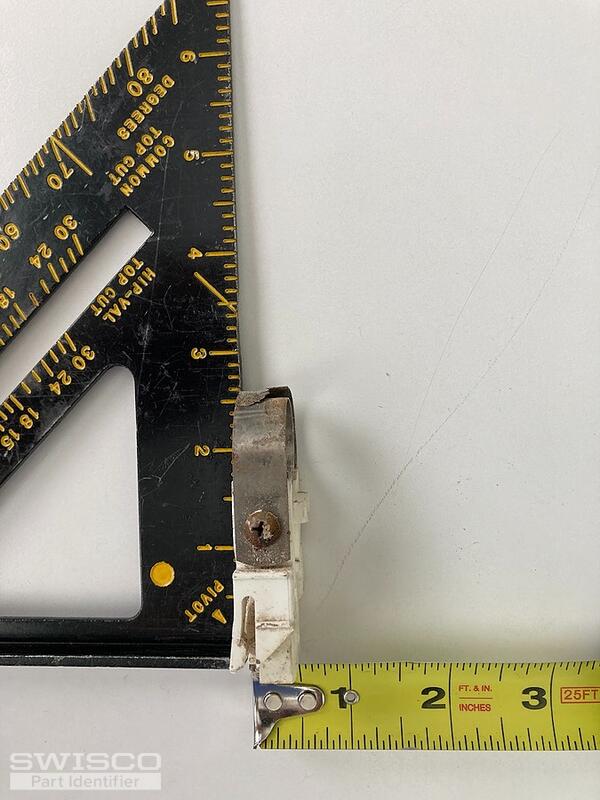

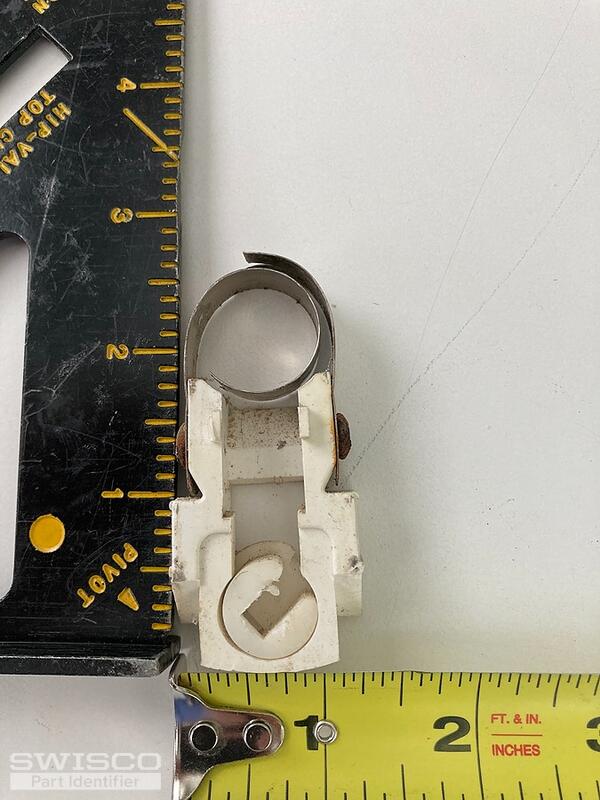

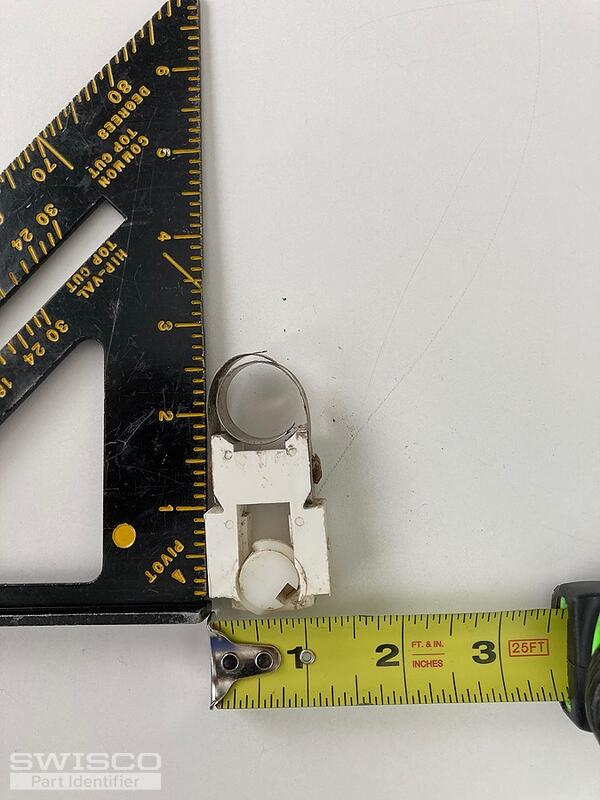

Here are the rest of pics. Again any help would be greatly appreciated. Simon
4 user uploaded images
Emily from SWISCO
May 12, 2021 8:10 am
It looks like you have our 15-180 coil balance shoe which uses the Series 190 coil spring. Compare our dimensions to your current pivot shoe and see if everything matches up for what you need.
Home Owner from Gastonia NC
May 12, 2021 9:27 am
Thanks so much for your help. Does your company sell a complete assembly? Coil Springs, bushings and shoe? Thanks ago, Simon
Home Owner from Gastonia NC
May 12, 2021 11:52 am
I'm ready to order my coil springs but am unable to find any number stamped. What do you suggest I order for. Single and double balances. Thanks. Simon
Emily from SWISCO
May 13, 2021 8:22 am
If you don't see a stamped number, you'll need to weigh your sash and divide the weight between the number of coils in your assembly.
If you have any further questions just let me know.
