Home Owner from New York

Jul 22, 2023 1:38 pm

Do these units come as Left or Right?

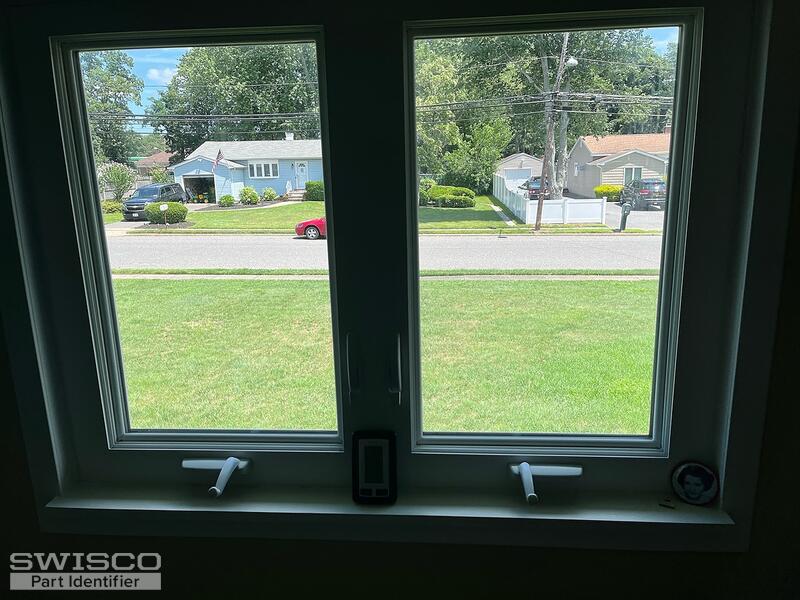

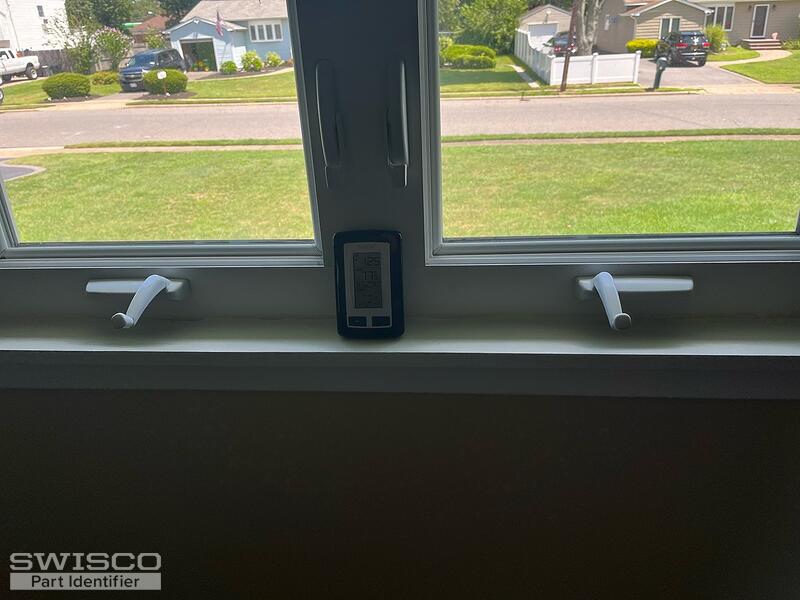

I have side by side Simonton Casement windows with cranks operating in the opposite direction. see photos.
Thank you

2 user uploaded images

4 Replies

Jasmine from SWISCO

Jul 25, 2023 9:57 am

Thanks for posting! We do sell the left and right handed assembly for many of our crank operators however, I am not able to determine your operators based on the brand alone. I'll need to see a photo of the body of the operator as well as the arm(s) and how the operator connects to the bottom of the window to confirm the correct recommendation.

Please let me know if you have any questions in the meantime.

Home Owner from New York

Jul 26, 2023 8:08 pm

Hi Jasmine

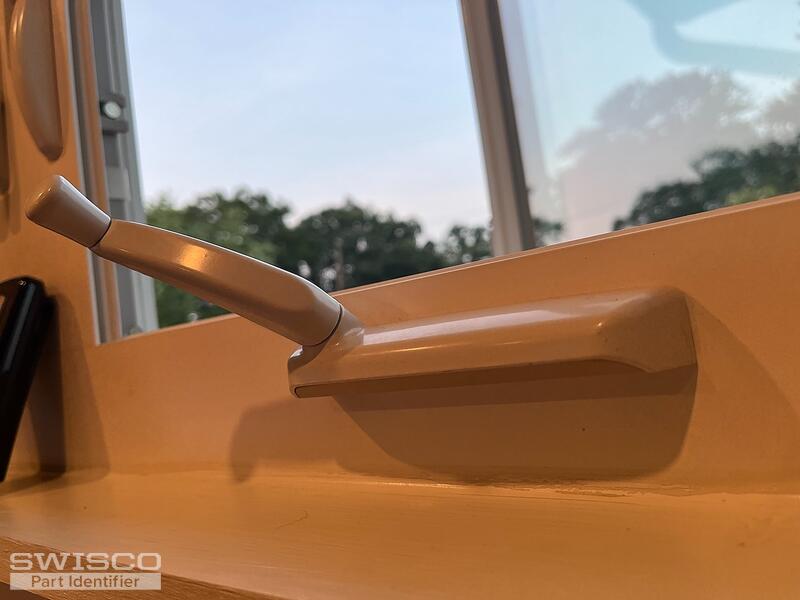

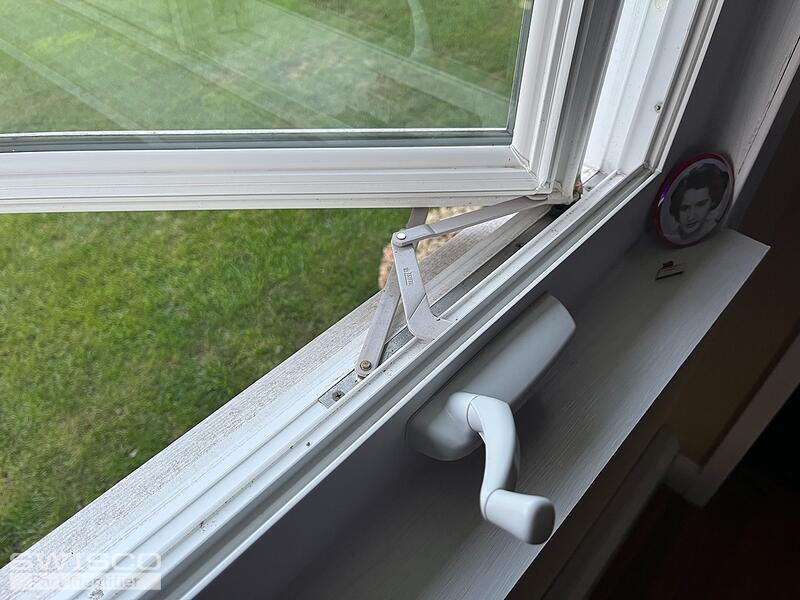

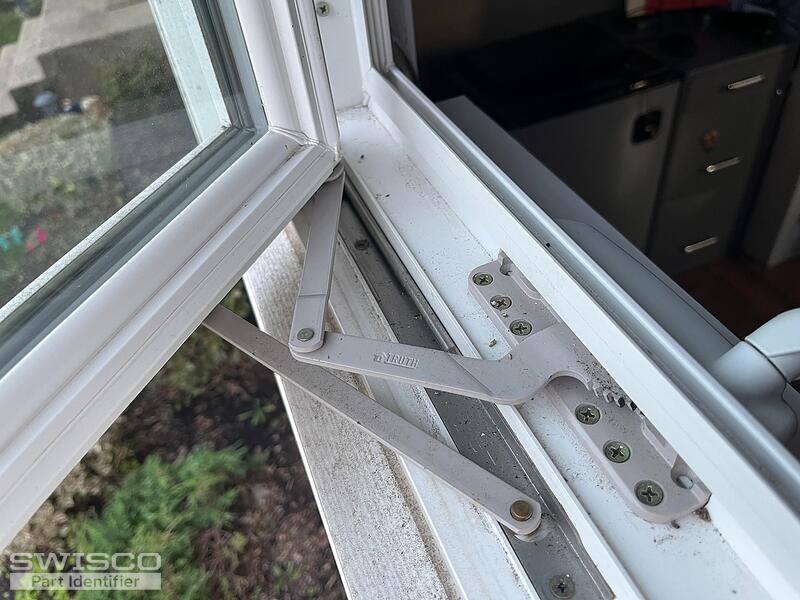

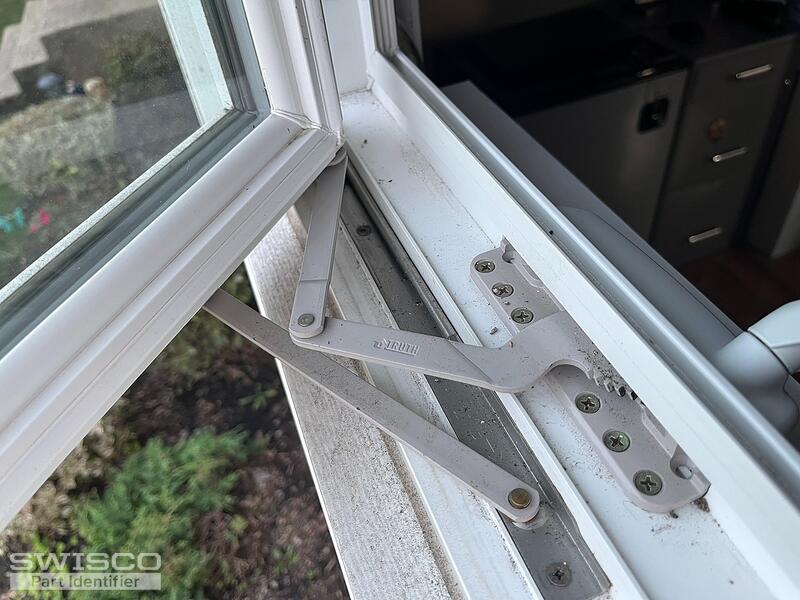

Thanks for your response. I have attached some photos to help you to identify my parts.

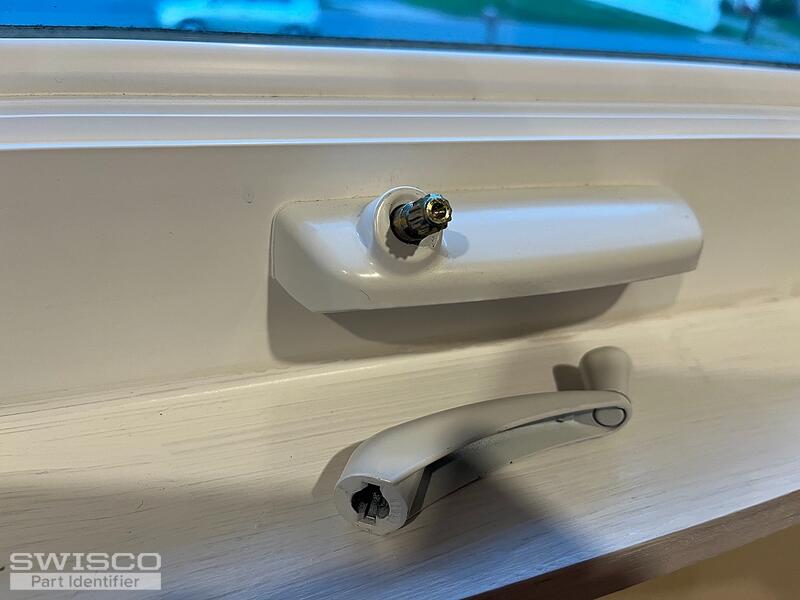

On another note- the website does not give the option to select Left/right on this part. That is, The fold up handle.

5 user uploaded images

Jasmine from SWISCO

Jul 27, 2023 10:24 am

Thanks for the photos! Your casement operator resembles our 39-220B and its opposite handed version part 39-221B. Take a look over the dimensions and compare your existing hardware to determine if these are the replacements you need.

These operators are compatible with the 39-451 and 39-452 Truth Operator Covers and Handles.

Detail of 39-220B
