Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2")

A quick learner from Annandale, Virginia says:
Hello,

I would like to replace my very old sliding glass handle with a Keyed Lock handle set with internal mortise lock.

Does part number 82-086 Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2") have everything, including mortise lock and key set?

Please see attached pictures of my old sliding glass handle set. Please help me select a key lock for the sliding glass door.
Thumbnail of the uploaded file named IMG_3470.JPG
Thumbnail of the uploaded file named IMG_3471.JPG
Thumbnail of the uploaded file named IMG_3472.JPG

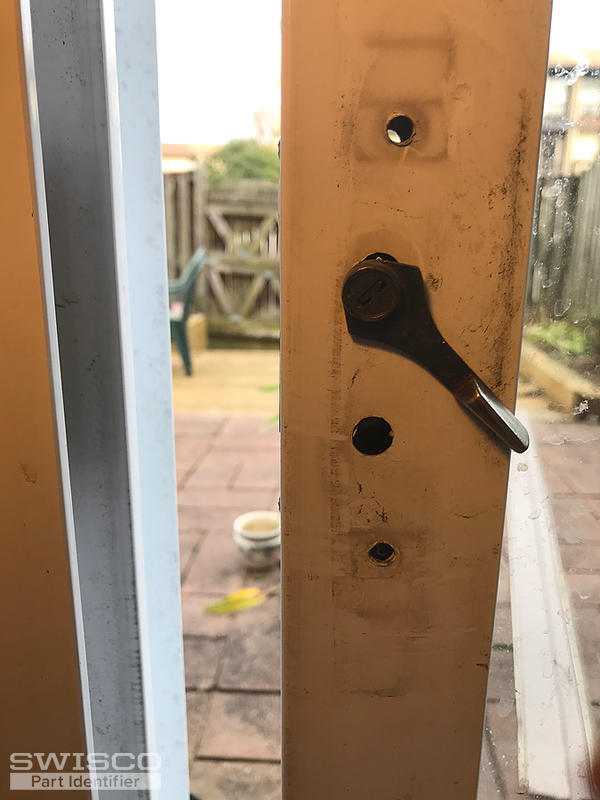

Thumbnail of the uploaded file named IMG_3473.JPG

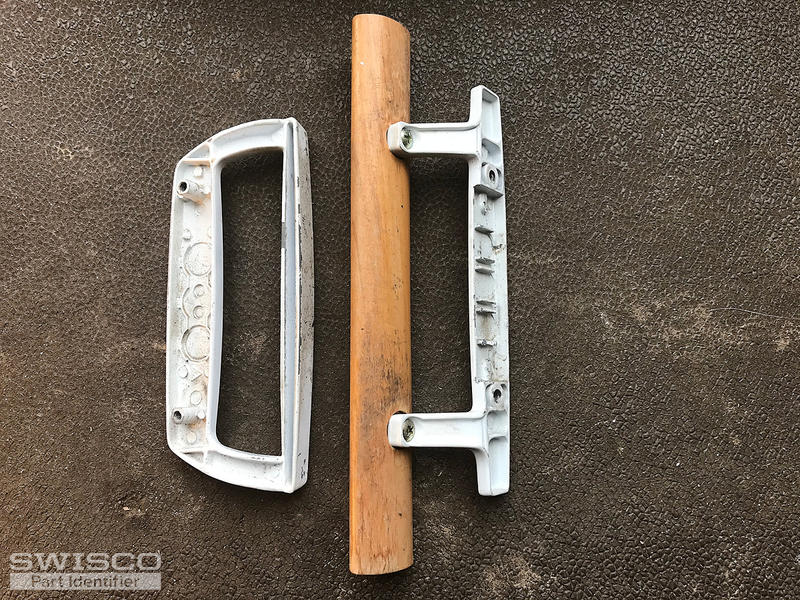

Thumbnail of the uploaded file named IMG_3478.JPG
Profile picture of Julia
Julia from SWISCO responded:

Hi there, thanks for writing in. It looks to me like you have our 82-035 handle set. This can be converted into a keyed handle with our 82-315. Our handles don't come with mortise locks, but yours looks similar to our 82-218, though I would confirm that by comparing the distance between the installation holes. Let me know what you think!

A quick learner from Annandale, Virginia says:
Thank you very much, Julia, for the information on the handle, key, and mortise. I will buy them.
Profile picture of Julia
Julia from SWISCO responded:

It’s my pleasure. Thank you for choosing SWISCO.com. We really appreciate your business and hope you will consider us for your future hardware replacement needs.

A quick learner from Annandale, Virginia says:
The Key Lock And Housing Product Code 82-315 is not available. And I can not wait any longer.

Can I use Legacy Keyed Handle Set, 3-15/16" (1-1/8" to 2-1/2") Product Code 82-086, which has a key lock? It seems that it has the same dimension as Patio Door Handle Set, 3-15/16" Product Code 82-035.

Thank you
Profile picture of Julia
Julia from SWISCO responded:

I apologize for this inconvenience. The 82-086 won't work as a replacement because the thumb turn lever is offset, whereas yours is centered. However, take a look at our 82-030. I think this is a viable alternative, and it can be keyed with our 82-310. Let me know what you think!

A quick learner from Annandale, Virginia says:
Thank you for the info.

Will Mortise Lock, Round Face, 3-11/16" (Product Code: 82-218) fit into Sliding Patio Door Handle Set, 3-15/16" (Product Code: 82-030)? I also need a mortise lock.


I believe I will need to knock-out the hole on the patio door handle 82-030 to install the key lock 82-310.

Thank you
Profile picture of Tom
Tom from SWISCO responded:

Yep, the 82-030 handle set and 82-218 mortise are fully compatible. The 82-030 is actually the same as the 82-086, it's just a slightly different style and lacks a key lock. As you said, the 82-310 will work perfectly fine for it.

A quick learner from Annandale, Virginia says:
Thank you. I just made a purchase.
A quick learner from Annandale, Virginia says:
I received 82-030 handle set. Before I can install it, I need to install the 82-310 key lock.

There are three circles on the exterior handle for key lock. Do I knock out the center circle to install the 82-310 key lock? I want to make sure before I knock out one of the circle. Base on video, I use a hammer and a strong device (such as screw driver) to knock out the circle (inside & outside). Please confirm. Thank you
Profile picture of Tom
Tom from SWISCO responded:

That is exactly how you knock out those punch circles, yes. As for whether it needs to be the center hole or not, I can't answer that. You need to see how those punch circles align with where your key lock is meant to install and knock out whichever one is needed.
