Legacy locking door handle

Home Owner from Colorado

Jan 5, 2021 6:16 pm

I am replacing a patio door handle that does not lock with the Legacy, which I already bought. I did not buy the part that inserts in the door because I already had one. When I went to slide the tail ends in, there was only room for one. Do I need another part to replace the mortise (is the right woed for that piece) ? Thank you.

6 Replies

Casey from SWISCO

Jan 7, 2021 9:57 am

Hello, thank you for writing in. Could you please show me your original handle set and mortise lock? This will help me to determine of the 82-086 was the correct replacement, and hopefully find a solution to the issue you are experiencing. Thanks!

Home Owner from Colorado

Jan 7, 2021 2:15 pm

I have the pictures as attachments. Can I direct email them?

Casey from SWISCO

Jan 7, 2021 2:39 pm

If you are unable to upload them here, you can e-mail them to our customer service department at help@swisco.com.

Home Owner from Colorado

Jan 7, 2021 4:26 pm

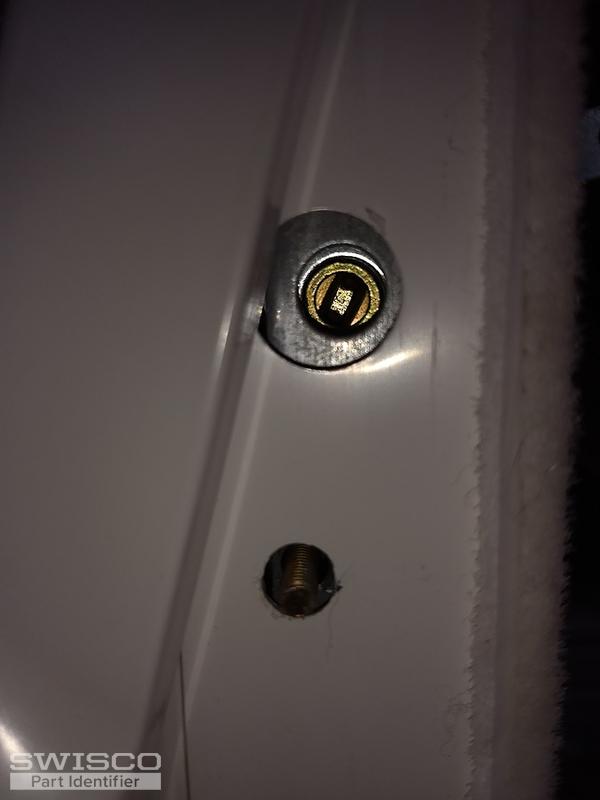

Re: Customer Service query D200226; Here are the attachments of the current door handle. Everything fit with the replacement I bought, except that both stems would not go into the center part. Only one seemed to fit. I did not break them back yet. Thank you.

4 user uploaded images

Casey from SWISCO

Jan 8, 2021 11:09 am

Hello,

as long as the mounting holes line up with the door, it sounds like you just need to cut down the spindle that comes with the key lock, which comes in a longer length to accommodate a wide range of door thicknesses. Take a look at our legacy handle guide here that will help you confirm that this is the correct replacement for your door and walk you through the process of cutting down the key lock spindle. Thank you!
