Legance III patio door

Quick Learner from West Chester Pa 19380

hello

We have Legance III Patio door approx. 16 years

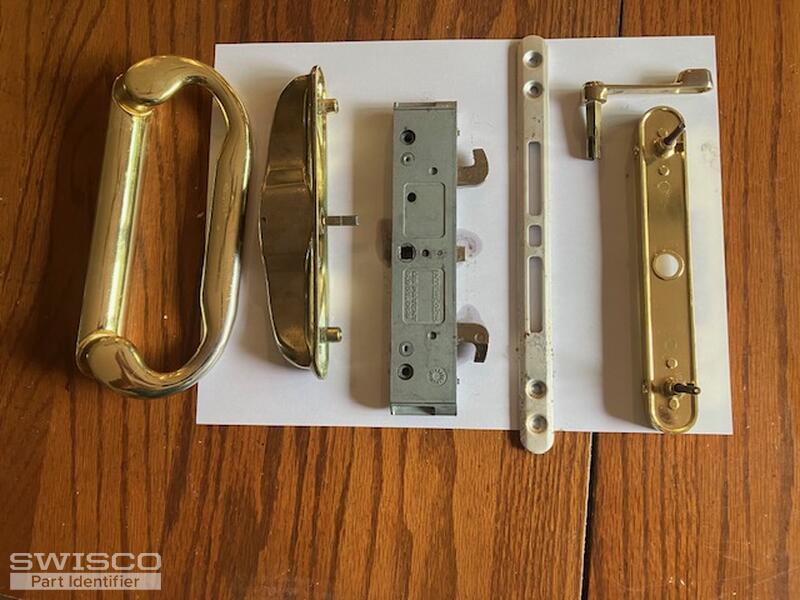

it appears the locking mechanism is frozen

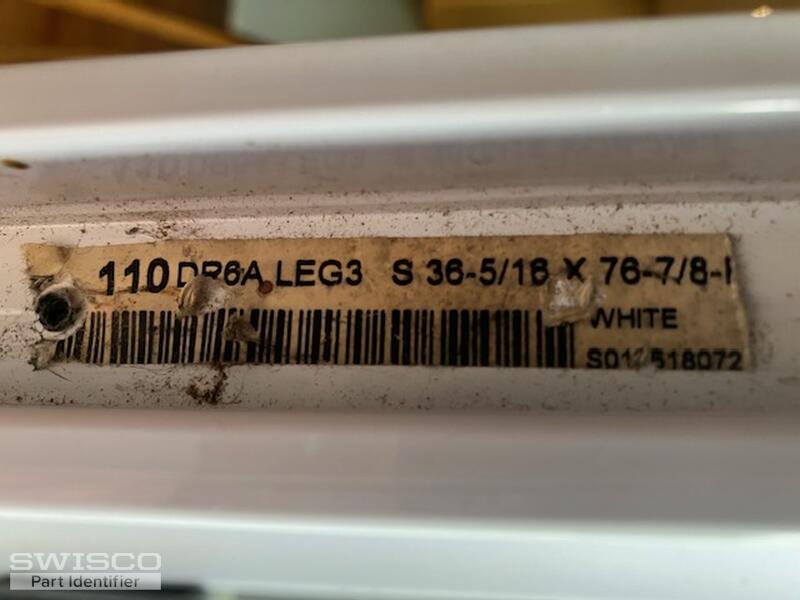

looking to replace, the only numbering on the mechanism - Interlock US Patent 5,951,068

C to C openings appear to be 5 inches

Hope you can help

Thank You

Steve

5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hey Steve. The mortise lock is our 82-238. For the handle set with a key lock, see the 82-081. I am afraid we do not carry this handle set style in a brass finish. I apologize for any inconvenience. Let us know if you have further questions.

Quick Learner from West Chester Pa 19380
I guess my question is, will my existing hardware be compatible with the Mortise lock or will In
need to replace the entire handle set ?

Thanks
Bob
Bob from SWISCO
SWISCO
Expert

Hey Steve--sorry, I should have read more closely. If your old handle set is undamaged, then it should by all means be compatible with the new 82-238 mortise lock, and therefore the new mortise lock should be all you need. Let me know if you have further questions.
