Lock Cylinder

Quick Learner from Kailua-Kona Hawaii

Jun 25, 2023 1:52 pm

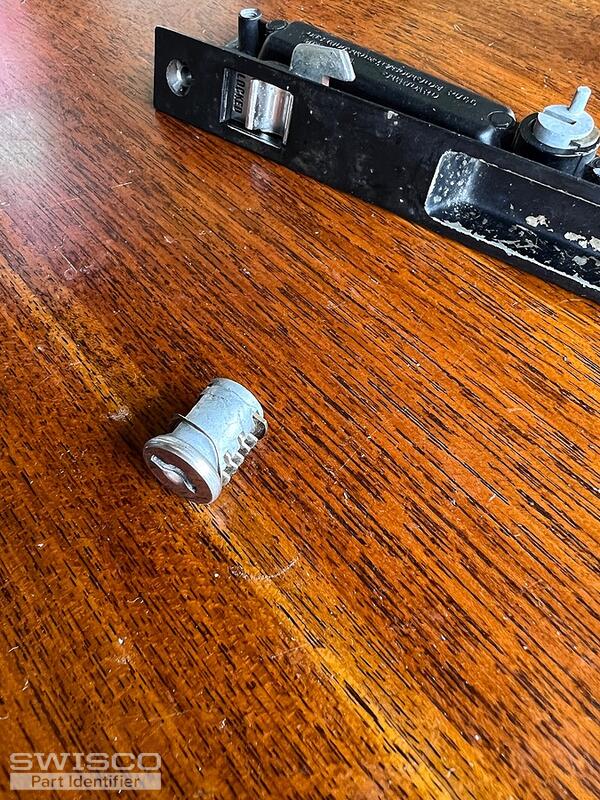

Looking for a keyed lock cylinder for this DNS pull that is 7.36 " long. Door is from about 1990. No numbers or markings on the lock. The pull is stamped DNS Industries, Miami, Fla 13/23 Outside Pull Standard

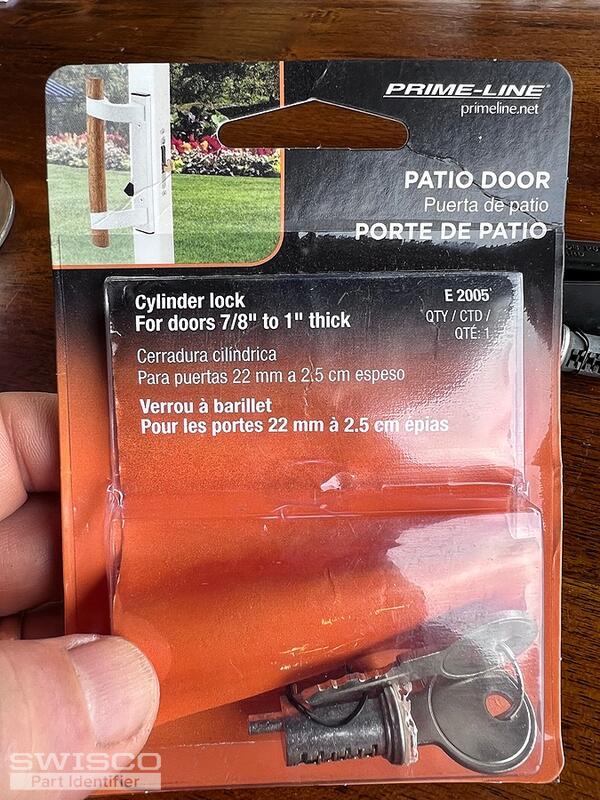

The last picture is a lock set I bought but it is too small

Thanks

5 user uploaded images

3 Replies

+ Add a Comment

Bob from SWISCO

Jun 25, 2023 4:47 pm

EXPERT

Thanks for posting. What is the thickness of the door that uses this lockset? We carry a similar key cylinder, the 82-302, but I believe the max door thickness it can work with is 1-1/8". If your door is thicker than this, you might be able to reuse the hold hook/tooth and screws with a replacement handle set like our 82-002K. Take a look and let me know what you think before proceeding.

Quick Learner from Kailua-Kona Hawaii

Jun 26, 2023 3:26 pm

Thanks
The door is 1". I think your 82-002K is the same as the one I already purchased.(pic was in the original message).

I can make the one I bought work but the barrel is a little too long and the lock moves back and forth.

Was hoping to find the exact fit. Are exact replacement parts still available for the DNS?
