Lock Needed : SWISCO.com

Professional from Plymouth, NH

Jul 11, 2024 8:51 am

Hello,

My customer needs a lock for this setup and I am not sure what brand of door it is. Can you help me identify the right part?

Thank you!
Diana

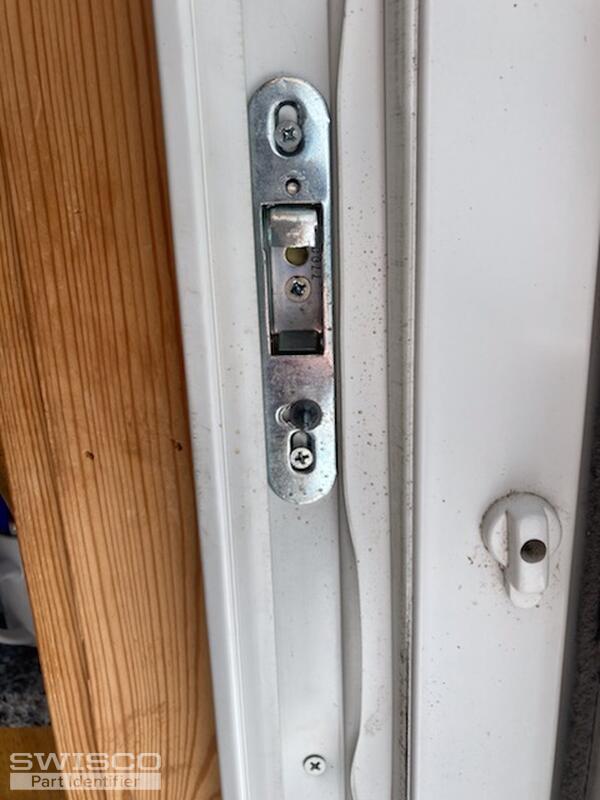

1 user uploaded image

8 Replies

Jasmine from SWISCO

Jul 12, 2024 3:48 pm

Thanks for posting! It appears your customer has the 82-241 Andersen Thumb Latch Lock.

Alternate image for 82-241

This thumb latch is compatible with either the 82-318 or 82-319 Gliding Door Key Lock. To determine which of these you need for the thumb latch, you'll need to look on the back of the lock to see if it is stamped with an L or an R.

Side view of 82-318

Back view of 82-318

Back view of 82-319

Professional from Plymouth, NH

Jul 12, 2024 4:07 pm

Thank you! I see the note that the internal mortise often needs to be replaced as well, do you happen to have a part number for that too?

Jasmine from SWISCO

Jul 15, 2024 8:57 am

I'm happy to provide you with a replacement recommendation but I'll need to see a photo of your existing mortise to confirm the right fit. Are you able to send a photo?

Professional from Plymouth, NH

Jul 15, 2024 9:43 am

Turns out my customer is just going with the thumb latch for now- I will reach back out with a photo if we end up needing anything else.

Thank you for your help!

Diana

Jasmine from SWISCO

Jul 15, 2024 10:45 am

Hi Diana,

Okay great! Please let me know if there is anything else I can assist with.

Have a great day!

Professional from Plymouth, NH

Aug 16, 2024 2:28 pm

Hello,

Turns out my customer does want the internal assembly as well - is this enough to identify the proper part?

Thank you!

Diana

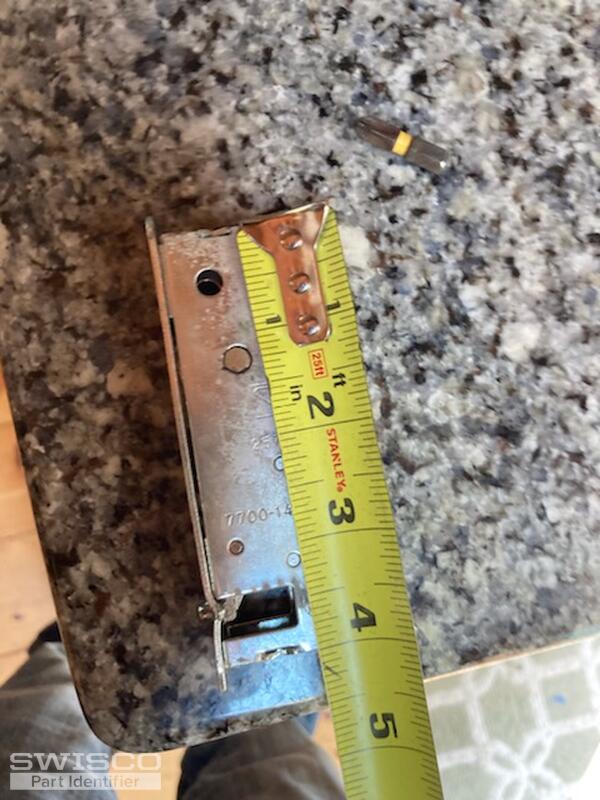

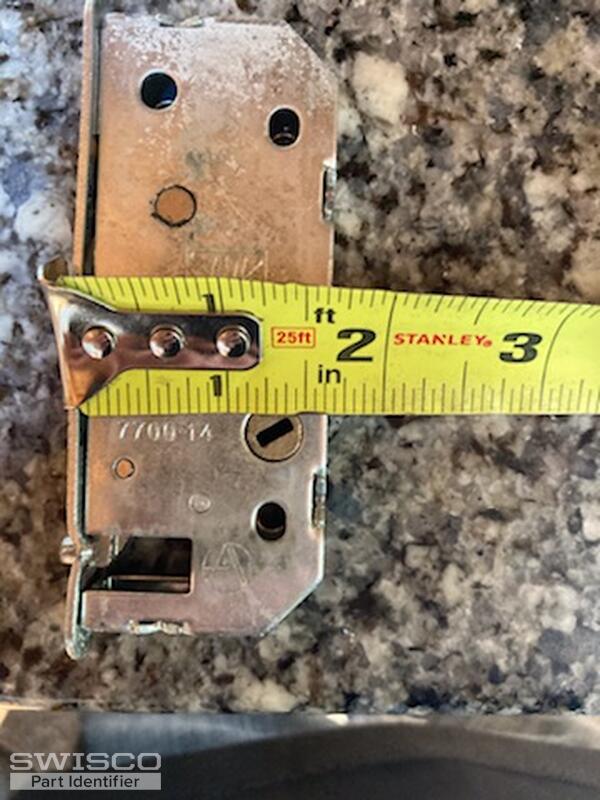

5 user uploaded images

Jasmine from SWISCO

Aug 16, 2024 4:15 pm

Hi Diana,

We appreciate you contacting us again! This mortise lock can be replaced with the 82-037 Andersen Reachout Deadlock Assembly. Be sure to take a look over the dimensions below to confirm.

Alternate image for 82-037

Detail of receiver 82-037
