Lock Replacement

Hi Bill,

Thanks for reaching out! There is a chance that we can supply you with a replacement lock for your sliding glass door, however, I'll need a bit more information to confirm. Unfortunately, I am not able to identify it based on the door information provided.

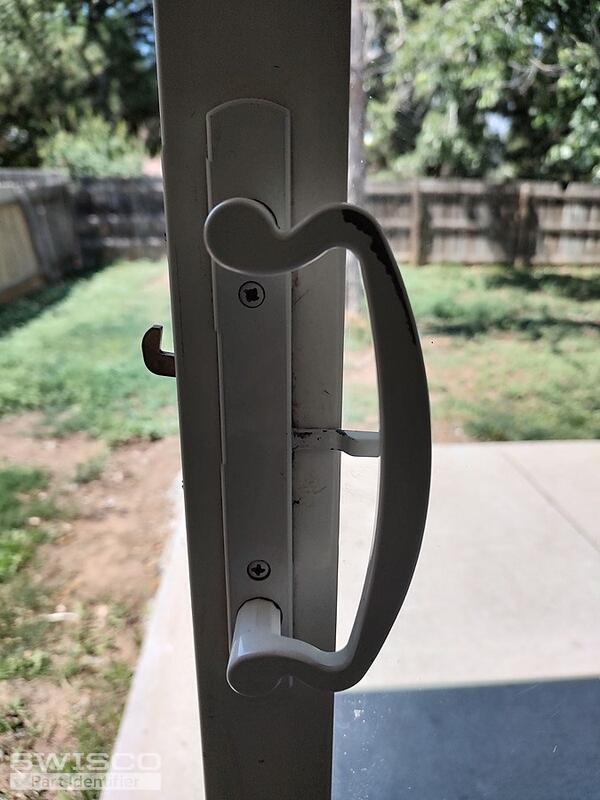

To start, I'll need to see a photo of your existing lock.

Please let me know if you have any questions.

Thanks for the photo. We do not have an exact match for the handle you have in your photo but our 82-030 should work well as a replacement. Take a look over the dimensions and compare them to your existing handle set to determine if this is the right fit for you.

The internal mortise lock is sold separately. If you are looking to replace that part, I'll need to see a photo of the internal lock as well.

Hole center dimensions for 82-030

Dimensions for 82-030

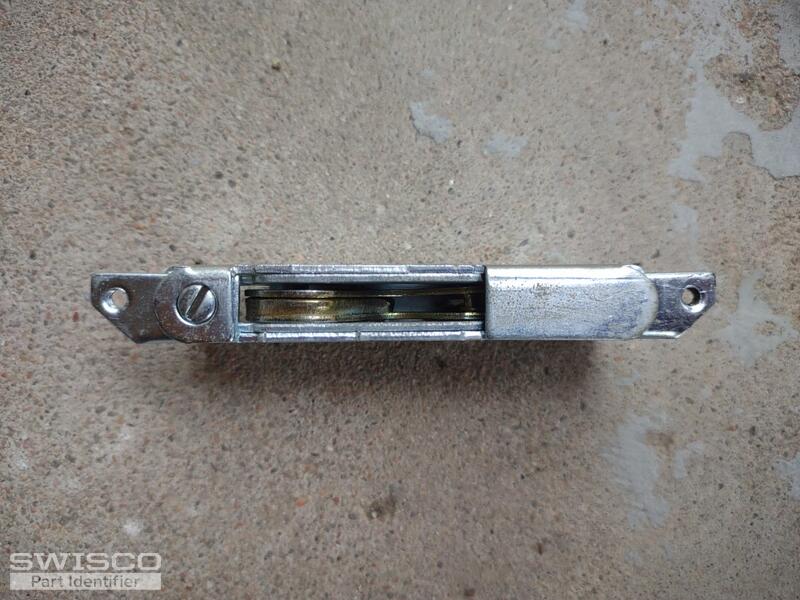

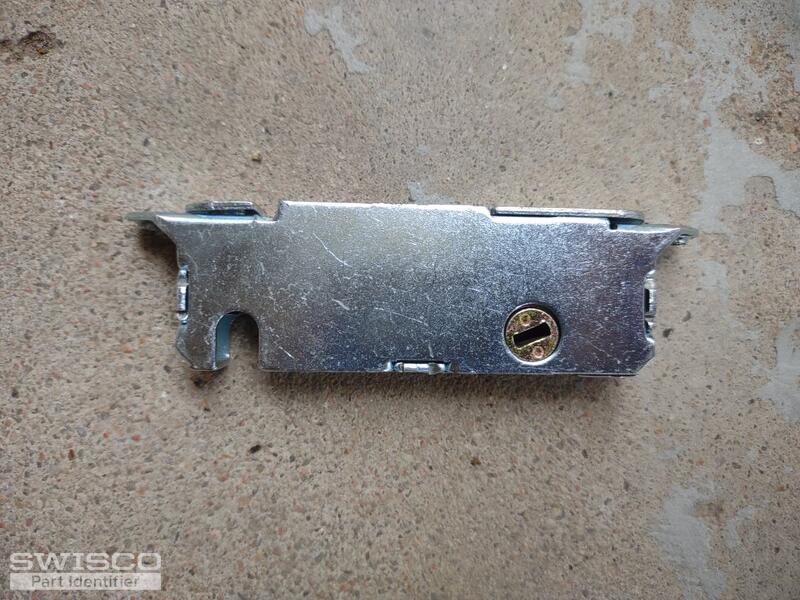

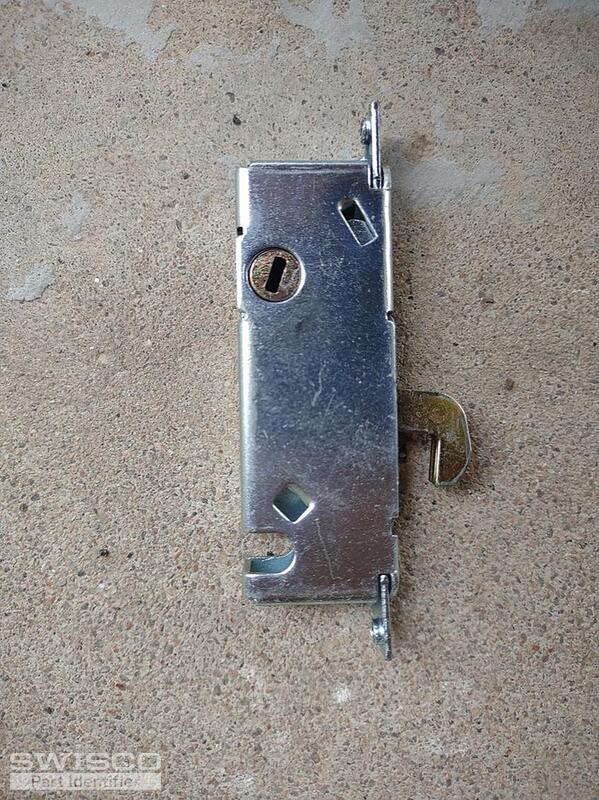

We'd be happy to research the replacement options for your mortise lock as well but we would need to see a straight-on photo of the entire assembly in the center of the door to compare to our inventory. Thank you.

Thanks for the photos. Your mortise lock reminds me of our 82-218. Take look over the dimensions and compare them to your existing lock to determine if this is the right fit.

Profile view of 82-218

Opposite side view 82-218

The size used for these is typically a #6-32 x 3/8" screw. I hope this helps!

Please let me know if you have any other questions.
