Lock handle set for patio door

A home owner from Washington says:
July 11, 2020
Hi I?d like to order a handle lock set with keyed lock installed from your company, to replace my existing set which does not lock. I need two sets for two identical doors as pictured below.

Can you please help me to learn how to measure to ensure I am ordering the correct sized set. Is there a specific way for me to measure? Thank you very much. Scott
Thumbnail of the uploaded file named 135FFB57-0D97-4D60-825E-3FE51C70C45E.jpeg
Thumbnail of the uploaded file named 79FD6EDE-887E-4F41-A3BB-DEED0EA71EB9.jpeg
Thumbnail of the uploaded file named E367534D-8584-4522-9D97-E722F8FB1192.jpeg
Profile picture of Tom
Tom from SWISCO responded:
July 14, 2020

Sure, I feel very confident that our 82-081 handle set will work for your door. This has a 4-15/16" hole spacing, center-to-center, which should match what you have now. It will also be fully compatible with your existing mortise lock.
A home owner from Washington says:
July 14, 2020
Thank you sir. I will order today. Thanks again for your assistance.
A home owner from Washington says:
July 14, 2020
Hi Tom
One quick follow up. I see it says
"Includes installation fasteners for doors up to 1-3/8" thick"

My door appears to be 1- 1/2" thick.

Is there any other parts or accessories I should buy along with the 82-0281 to ensue a good fit?

Thanks.
Profile picture of Tom
Tom from SWISCO responded:
July 14, 2020

In your case, I would advise reusing your original screws. That should allow you to use our handle set.
A home owner from Washington says:
July 14, 2020
That's Tom.
A home owner from Washington says:
July 20, 2020
Hi Tom,

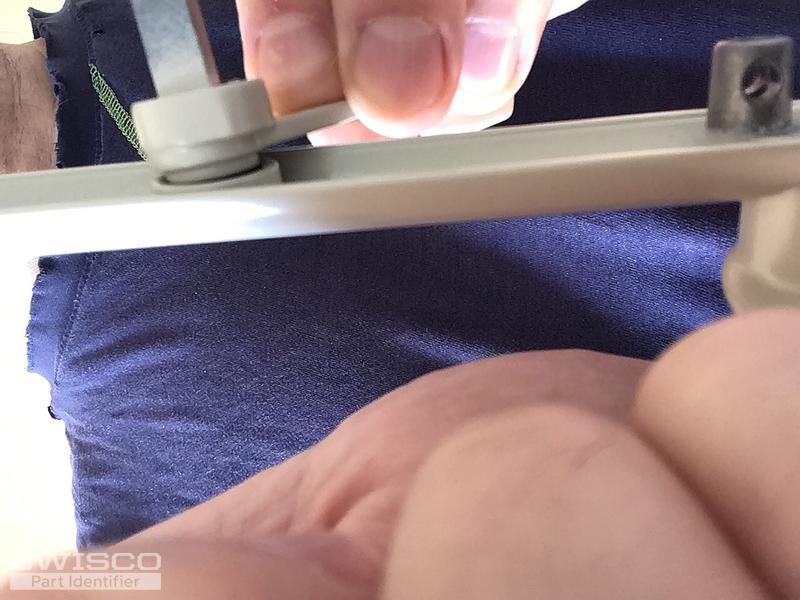

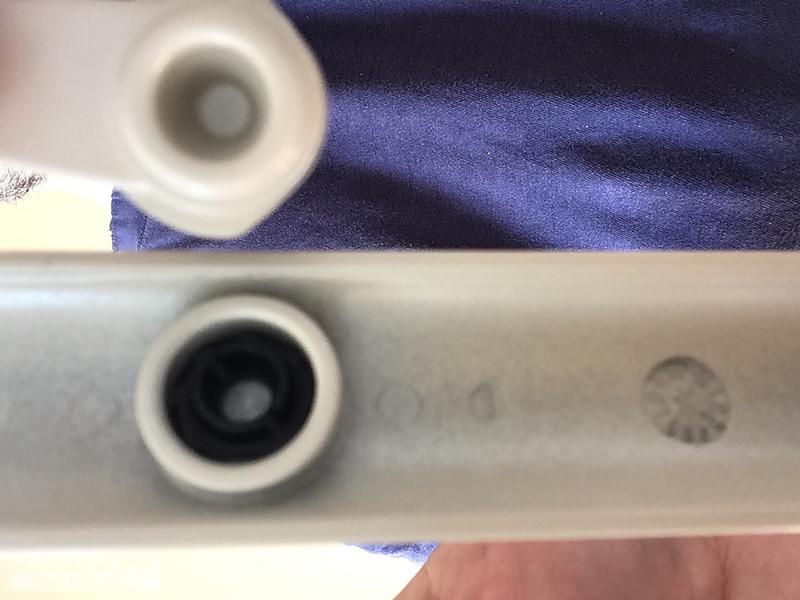

This part of the lever does not seem to fit flush over the black plastic piece in the handle. Can you advise. Thanks. Scott
Thumbnail of the uploaded file named E8733DCD-50FD-462E-AB5B-AD8F3DB0E00E.jpeg
Thumbnail of the uploaded file named 884F9405-F141-4CA5-B515-066CA63D7C96.jpeg
Profile picture of Tom
Tom from SWISCO responded:
July 21, 2020

I would try removing that black plastic piece from the handle to install the thumb lever.
A home owner from Washington says:
July 22, 2020
Thanks I will give that try.
A home owner from Washington says:
July 24, 2020

Success

Thanks. Ordered another one today.

I had a difficult time cutting the spindle. I used hack I saw and couldn't make a cut. Wound up snapping it in a couple of places and got lucky.

What TPI blade would you generally use to cut the spindle.

I ordered an extra spindle just in case I mess it up.
