Key Lock replacement on my patio door handle

A quick learner from Lomalinda ca. says:
February 19, 2020
Patio door lock broke. The inside handle functions as handle and lock actuator. Need to replace lock handle is ok
Thumbnail of the uploaded file named 20200219_185418.jpg
Thumbnail of the uploaded file named 20200219_185313.jpg
Thumbnail of the uploaded file named 20200219_185303.jpg

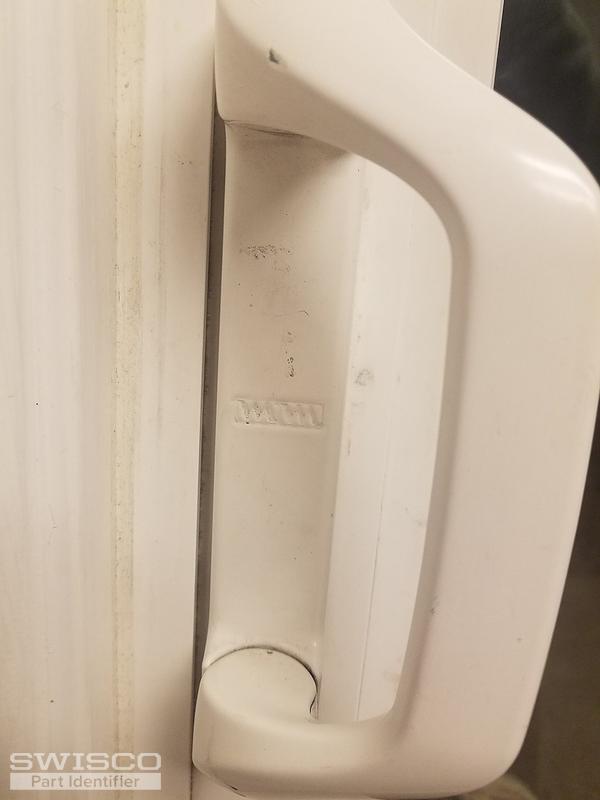

Thumbnail of the uploaded file named 20200219_185245.jpg
Profile picture of Tom
Tom from SWISCO responded:
February 20, 2020

Hi there! If all you need is a key lock, then I recommend our 82-310. I'm confident this will work with your old handle set and mortise.

Let me know if you needed anything else!
A quick learner from Lomalinda ca. says:
February 20, 2020
I need the otherside as well. It has a sproket on the end of it and q fork like end that the lock slides into. It the piece that the door handle use to put the lock in the lock or unlock position. The piece at the top of photo 1
Profile picture of Tom
Tom from SWISCO responded:
February 20, 2020

Oh, I see. Sounds like you might need a new thumb lever. That's a little trickier; we carry the 82-240, but this is specifically designed to work for our 82-081 handle set. This is similar to yours but I believe it's a newer model. I can't predict if the newer 82-240 thumb lever can work on your older model handle set.
A quick learner from Lomalinda ca. says:
February 20, 2020
Ok. Yeah there is no thumb lever on my handle. The handle itself does the lockinf and unlocking. Sounds like im gonna need to put a different handle. Do you have one that will fit my current setup in white pls if possible
Profile picture of Tom
Tom from SWISCO responded:
February 21, 2020

Sure, the 82-081 I mentioned should work perfectly. The size and shape is slightly different but it otherwise functions the same way. It's just an updated version of your old set.
Keyed Mortise Style Handle Set, 4-15/16"
Keyed Mortise Style Handle Set, 4-15/16"
82-081
$62.05
Key Lock
Key Lock
82-310
$14.30
Double Hook Mortise Lock
Double Hook Mortise Lock
82-238
$39.80
