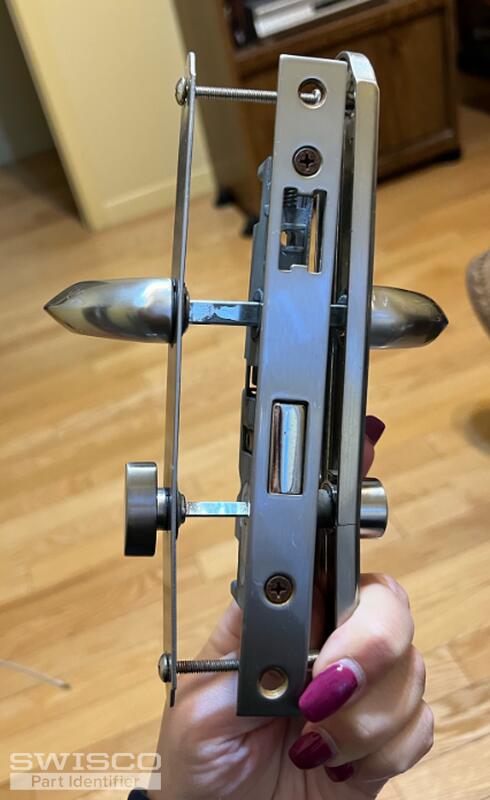

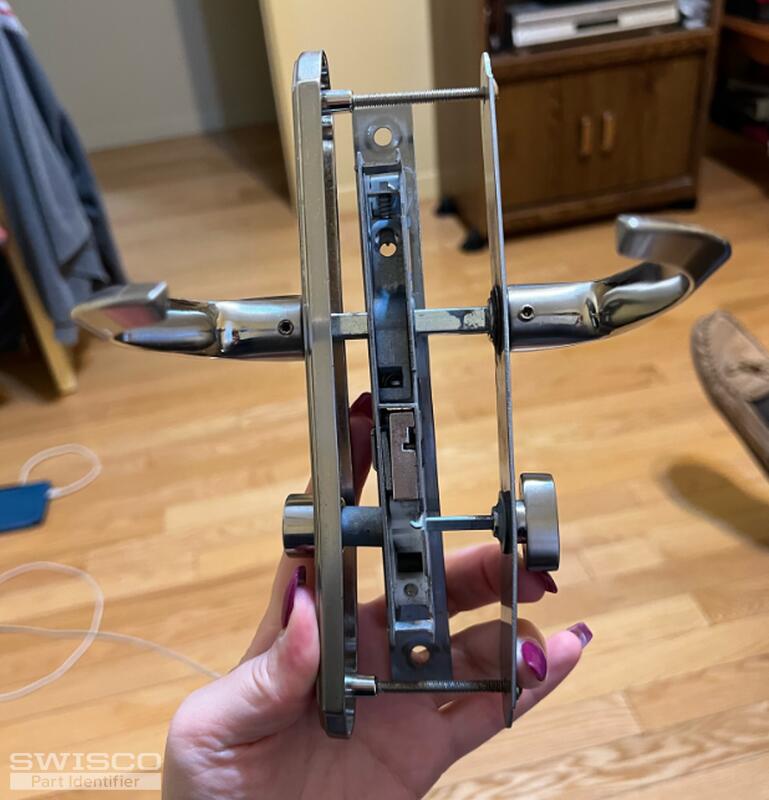

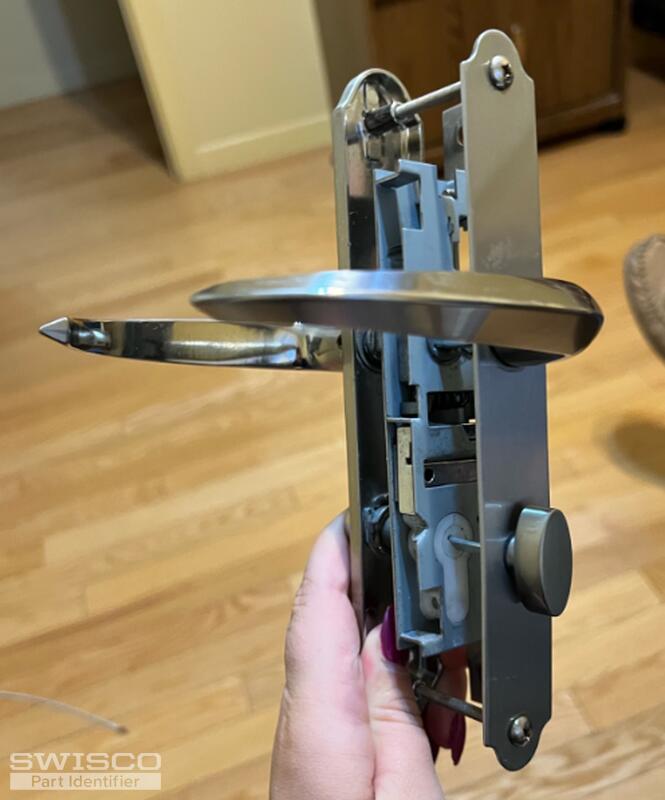

Here are the pictures you requested of the lock, we are trying to get a replacement of this part that contains the deadbolt as well.
Thanks!
(When 40-194 and 40-198 were suggested.) Either one of those would work but unfortunately the mortise measure 1 9/16 part is the only measurement that doesn't fit. Do you have any other ones with all of the same measurements except 1 6/16 mortise?
Thankyou!
Haleigh

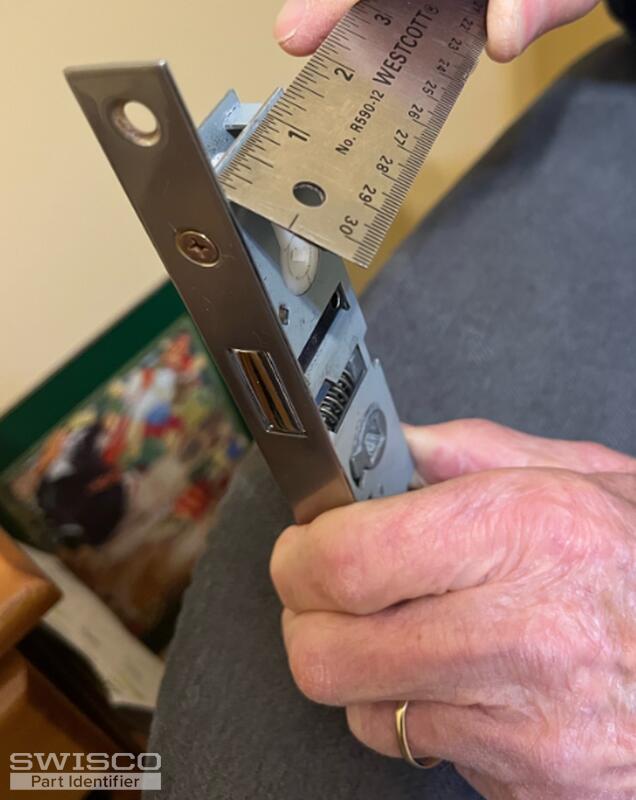

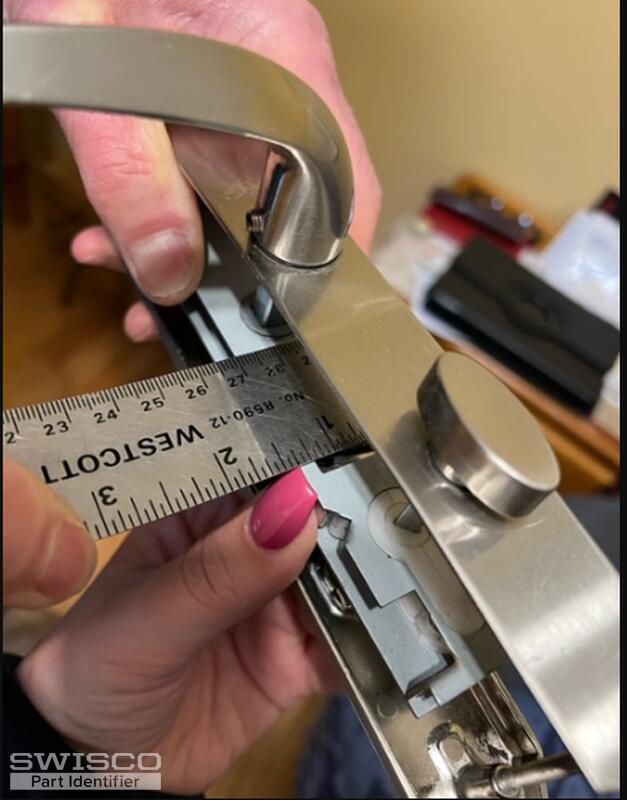

Attaching the measurement, measured again it's defintely 1 6/16 (3/8)
Hello,
The 40-194 would be our best match for the assembly shown in your photos. Please note that the 7/8" backset of the spindle insert is more important than the overall backset since the door opening is normally large enough to compensate for the difference.
If you decide to give it a try and run into any problems, our return policy can be found here. Thanks for posting.
You are welcome to order the 40-194 on our website by clicking on the product code. You can also give our customer service team a call at (888) 991-1929 to place an order over the phone.
