Locking Mechanism

Home Owner from Daytona Beach Florida

Jun 9, 2023 8:57 pm

Hello,

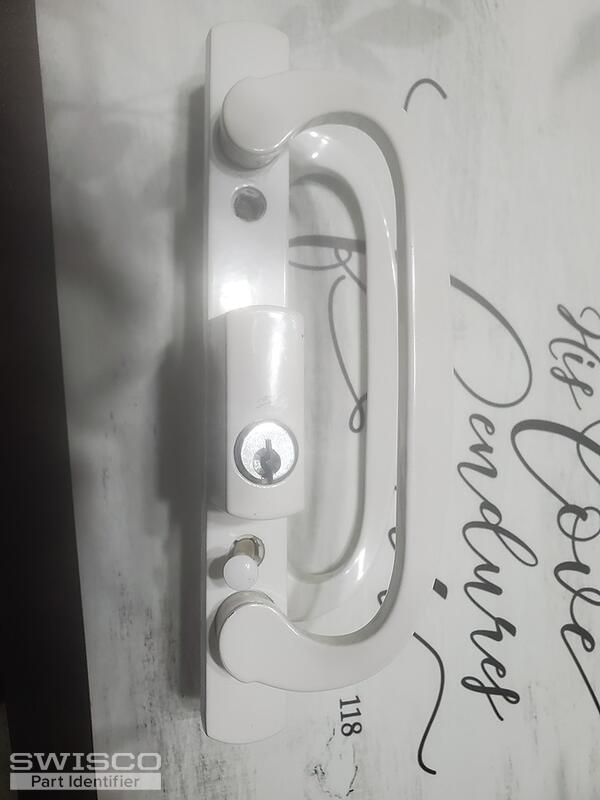

I am actually looking for the locking mechanism for this particular handle. I can't find it anywhere. I have seen some similar to it but they are smaller. I'm ready to purchase. Thank you.
Ed

5 user uploaded images

6 Replies

Bob from SWISCO

Jun 10, 2023 7:50 am

Thanks for posting. This pull looks like the inside portion of a handle set like our 82-086 or 82-089. By locking mechanism, do you mean the thumb lever? If so, our 82-107 is our best match. Take a look and compare with your old lever. Let me know if you have further questions.

Dimensions for 82-107

Home Owner from Daytona Beach Florida

Jun 10, 2023 11:06 am

I'm so sorry. I don't think I explained myself correctly.the part in question is the mortise lock. By doing my own research, I believe that part number that i need is 82-227. Please look at the pics I sent previously and advise. Thank you so much.
Ed

Bob from SWISCO

Jun 11, 2023 10:12 pm

Hi Ed. No worries. The 82-227 is definitely compatible with your handle set. However note that there's a few different mortise locks with this same body (the 82-218) that have different faceplates. For instance, besides the 82-227 there's also the similar 82-226, which just has different hole spacing on that face plate. If you're uncertain, please send us pictures of the original mortise lock if possible so that we might verify.

Home Owner from Daytona Beach Florida

Jun 11, 2023 11:28 pm

Hello Bob,

So, yes. My glass door handle is part number 82-086, so I guess I need the mortise lock for that particular handle. Thanks again.

Ed

Bob from SWISCO

Jun 12, 2023 11:38 am

You're welcome! Please let me know if you had any other questions and I'd be happy to assist.
