Locking Sliding glass door handle replacement

Question

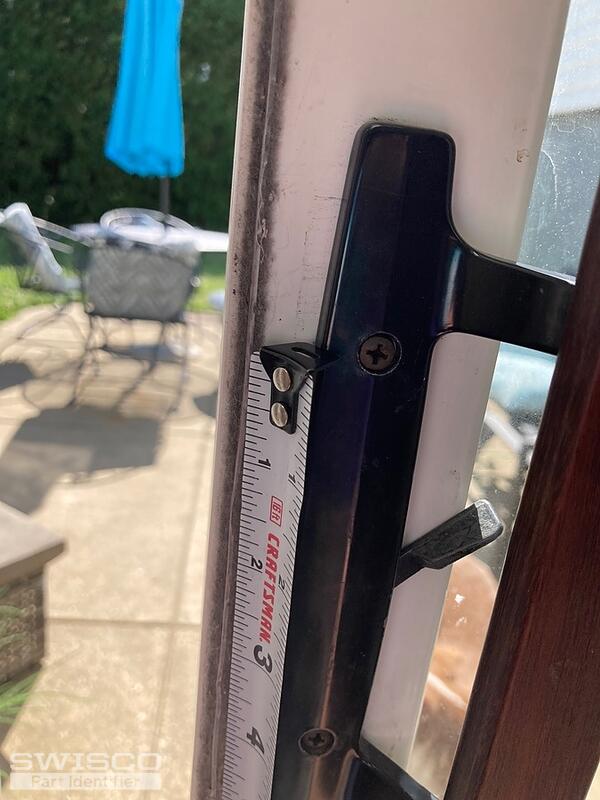

Hi I have a Simonton Window sliding glass doors and need a locking replacement handle. Door width is 1 5/8, inside door width between screws is 4".

Preferably would like a Satin nickel finish.

Your help is much appreciated!

Casey · Accepted Answer

Hello,

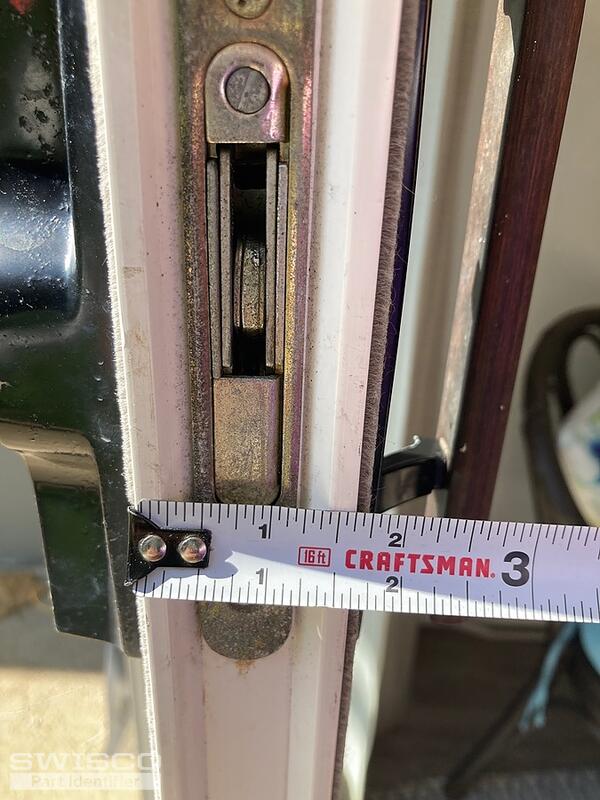

Your mortise lock resembles the 82-226, which is commonly used with the 82-030 handle set. Note that the handle set has 3-15/16" hole spacing, which is a common measurement for these sliding door parts. We also offer the 82-030A and 82-030B keyed versions depending on whether your thumb latch is centered or offset. Unfortunately, these handles are not available in Satin Nickle but take a look at the color options shown on our product page. Thank you!

Alternate image for 82-226

Hole center dimensions for 82-030
