Locking for a pivot shoe

Quick Learner from Vermont USA

Aug 12, 2024 8:50 am

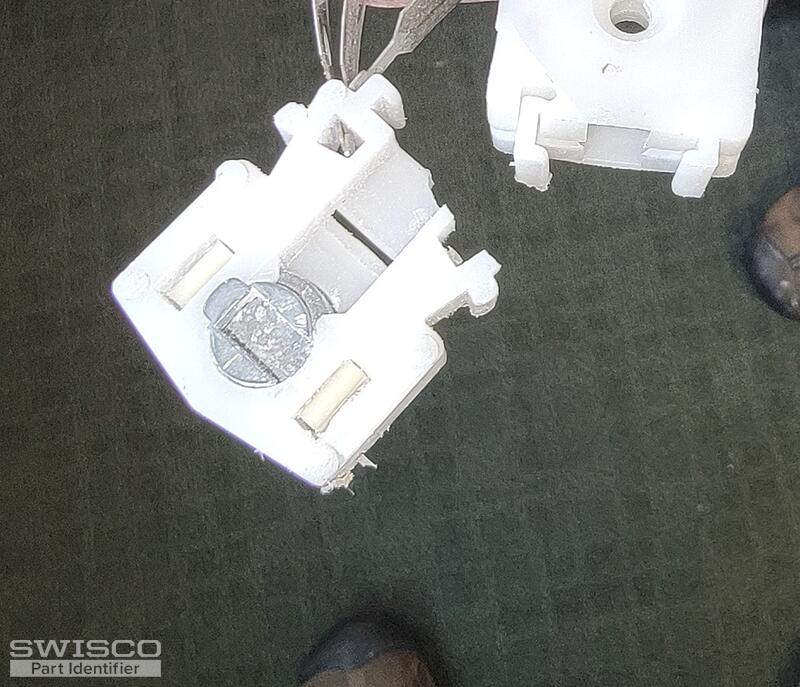

I apologize for the picture.
the measurements are 17/32" thick-1 7/32" Wide 1 3/4' tall.

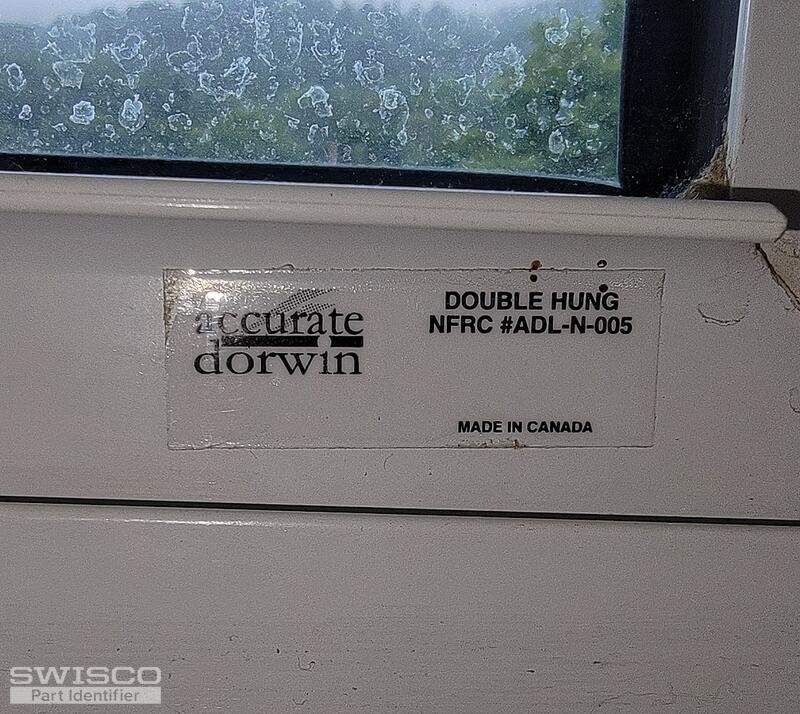

The windows are Fiberglass and very heavy
the shoe moves with the window and the balance springs are fixed the the window frame there is 3 balance springs per side that are stamped with an 8.
Any help in finding a replacement would be greatly appreciated.

2 user uploaded images

3 Replies

+ Add a Comment

Casey from SWISCO

Aug 13, 2024 3:28 pm

EXPERT

Hello,

Unfortunately, we do not carry your exact pivot shoe. If the coil springs have the same type of "T" end as the 1/2" wide Series 160, our 15-191 pivot shoe may be worth considering. Review the dimensions below to confirm it would fit your window track. The metal center cam should work with your original pivot bar. Thanks for posting.
