Locking handle for Guardian sliding doors

A quick learner from Wisconsin says:
January 3, 2021
The locking handle on my patio door broke and I'm looking for what parts I need to replace it. I've attached pictures of the model numbers on the door frame as well as the patio door itself.
Thumbnail of the uploaded file named 20210103_122711.jpg
Thumbnail of the uploaded file named 20210103_122700.jpg
Thumbnail of the uploaded file named 20210103_122653.jpg

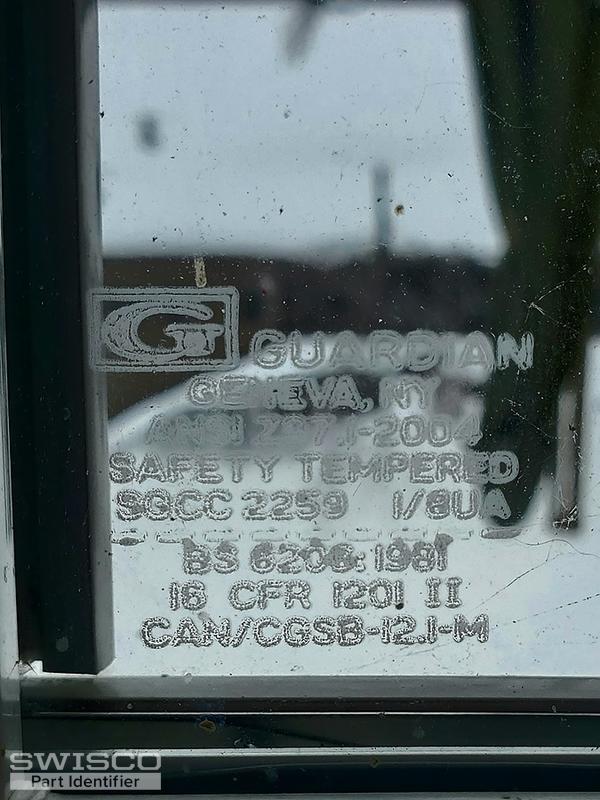

Thumbnail of the uploaded file named 20210103_123049.jpg

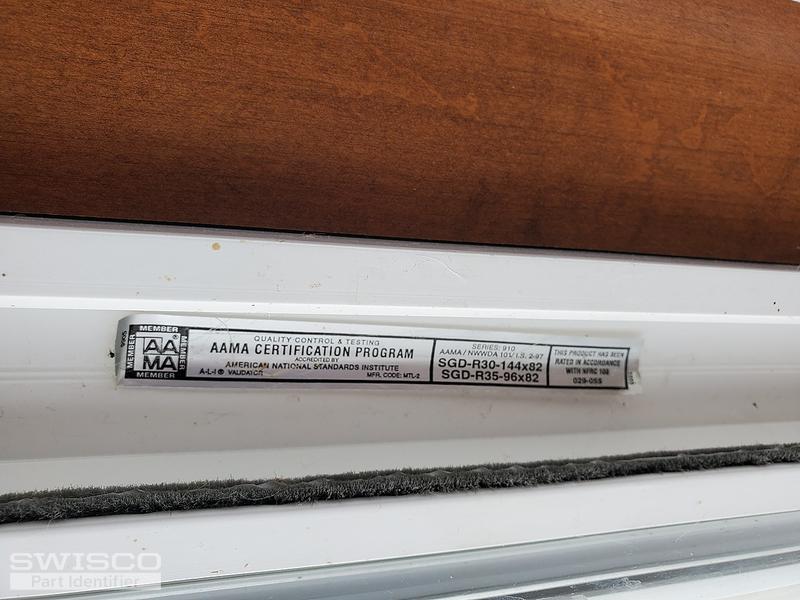

Thumbnail of the uploaded file named 20210103_115143.jpg
Profile picture of Tom
Tom from SWISCO responded:
January 5, 2021

Without seeing the old handle, I can't be 100% sure of what you have, but I think our 82-030 is a reasonable guess. This has a hole spacing of 3-15/16", so you should check that. Otherwise it will be fully compatible with your existing mortise lock.
A quick learner from Wisconsin says:
January 5, 2021

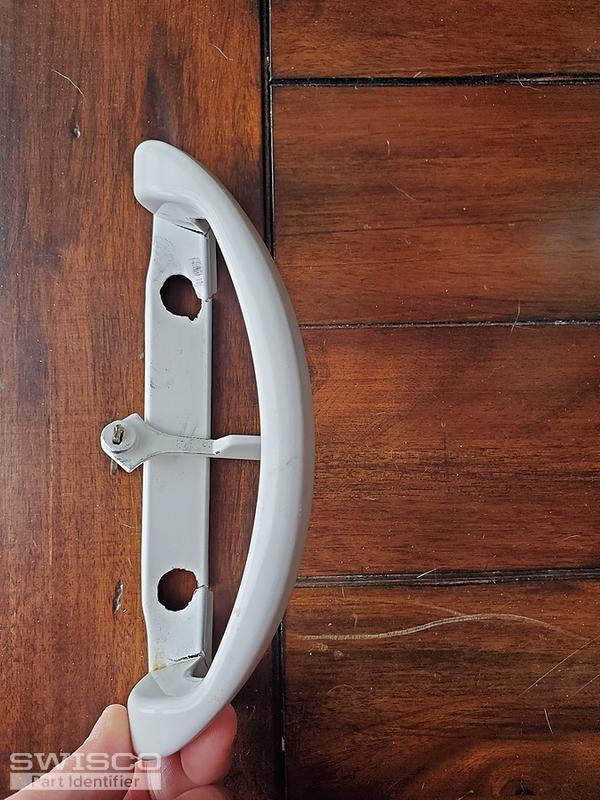

Forgot to attach the photo of the handle. Here it is. Would the 82-030 work for replacing this handle?
Thumbnail of the uploaded file named 20210103_122642.jpg
Profile picture of Tom
Tom from SWISCO responded:
January 5, 2021

Thanks! Yes, I think that it would. As long as the hole spacing is 3-15/16" then you should be good to go.
