Locking mechanism

Contractor from Apple river, il

Apr 1, 2022 11:10 am

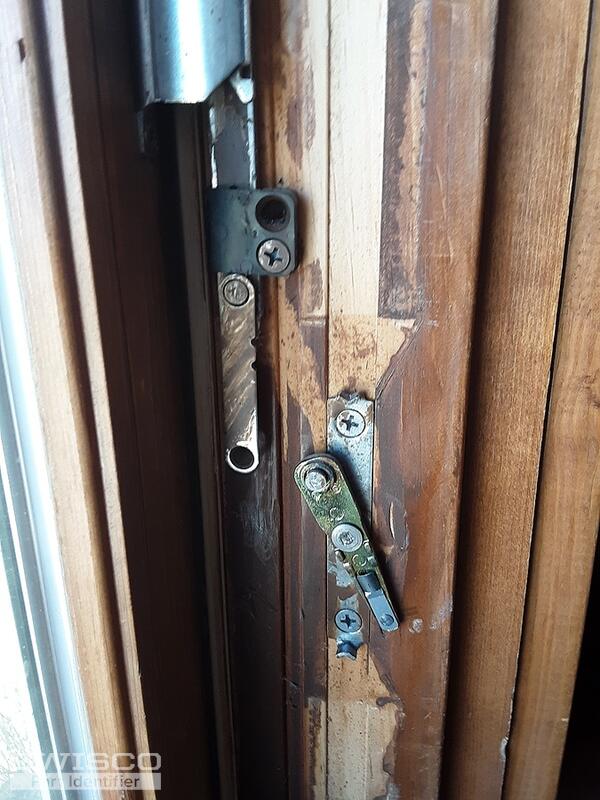

The locking mechanism is broken in this casement window. I cant find any part numbers for the part so I'm hoping you can tell me what parts I need to fix this. Thanks

1 user uploaded image

4 Replies

Casey from SWISCO

Apr 1, 2022 3:40 pm

Hello,

I don't recognize the parts in your window at first glance but if you could confirm if there is more to the assembly, as well as the window manufacturer, we'd be happy to look into this for you. Thank you!

Contractor from Apple river, il

Apr 4, 2022 9:30 pm

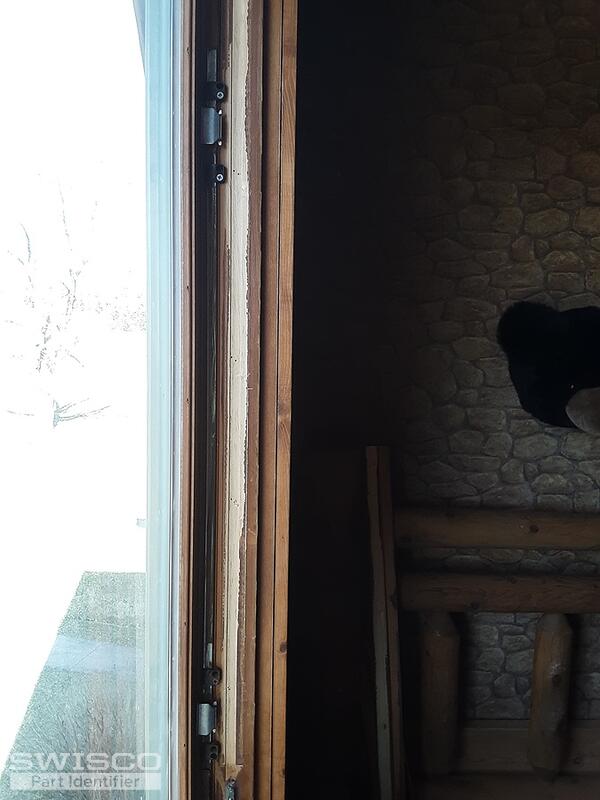

The window manufacturer is Truth Entrygard. The long steel bar in the photo is 36" long and is attached to the window jamb with black plastic clips. The assembly is broken where the lever lock connects the 36" steel bar which slides up and down to lock and unlock the window shown more closely in the previous photo. Sorry, its hard to get everything in one photo hope this helps, thanks.

1 user uploaded image

Dave Sr. from SWISCO

Apr 6, 2022 9:56 am

I suspect that your original hardware may be from Roto, which we do not carry exact replacements for. However, it may be worth considering the 38-145 lock made by Andersen since the lock flips into the handle using a spring clip like your original part. We can't guarantee that this will work for your application but this would be our best match for your hardware at this time. Take a look and see what you think.
