Locking mechanism for older, Milgard, triple light, double casement window.

Quick Learner from Seattle
Hello,

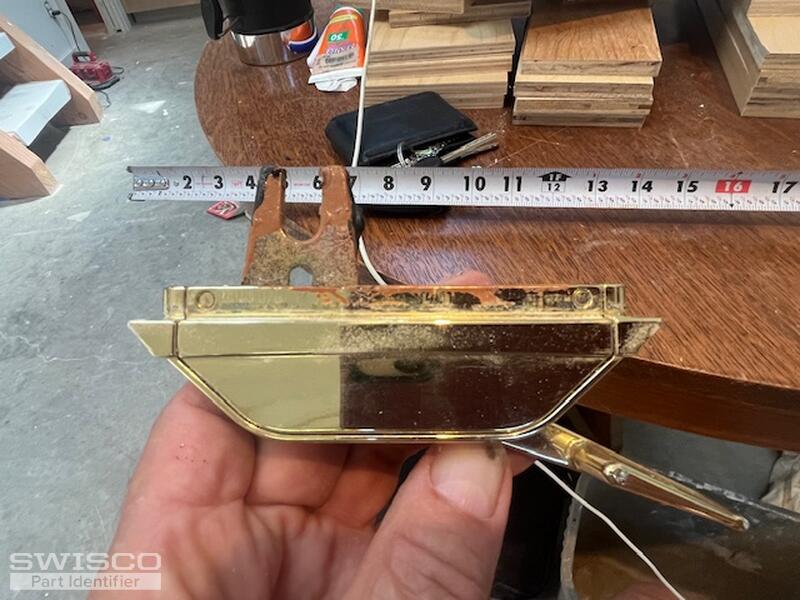

I forced the lever and broke off the mechanism and the whole part needs replacement.The mechanism is brass in color. White would be preferable. A set would save me painting the other side which still functions-not a big deal, what are my choices? The part is 4.5 inches x 3/4 overall. When measered from the jaws, to the tip of the handle the device is 5 1/4. The bolt pattern for attaching to window is 3 7/8's. Let me know if more info is needed, or better pics. Thanks You!!!
Jay
4 user uploaded images
2 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hey there!

Thanks for reaching out to us. Check out the 38-095, 38-096, and 38-139 casement locks. One of these might be what you need. I recommend you review the specifications to see if one of them matches up. Make sure to pay a close eye to the projection of the fork as well.

Alternate view of 38-095
Alternate view of 38-095

Alternate view of 38-095
Alternate view of 38-095

Side view of 38-096
Side view of 38-096

View of 38-096 Hole Centers
View of 38-096 Hole Centers

Alternate image for 38-139
Alternate image for 38-139

Alternate view of 38-139
Alternate view of 38-139
