Hello
I need help finding this part (picture #090413) for a 33"window,(picture #083531)
please advice.
I believe Guardian is the name of the windows brand.
Thank you in advance for your help
Locking system double sash window
Home Owner from canton GA
Jul 28, 2018 9:25 am
5 user uploaded images
2 Replies
Casey from SWISCO
Aug 3, 2018 8:22 am

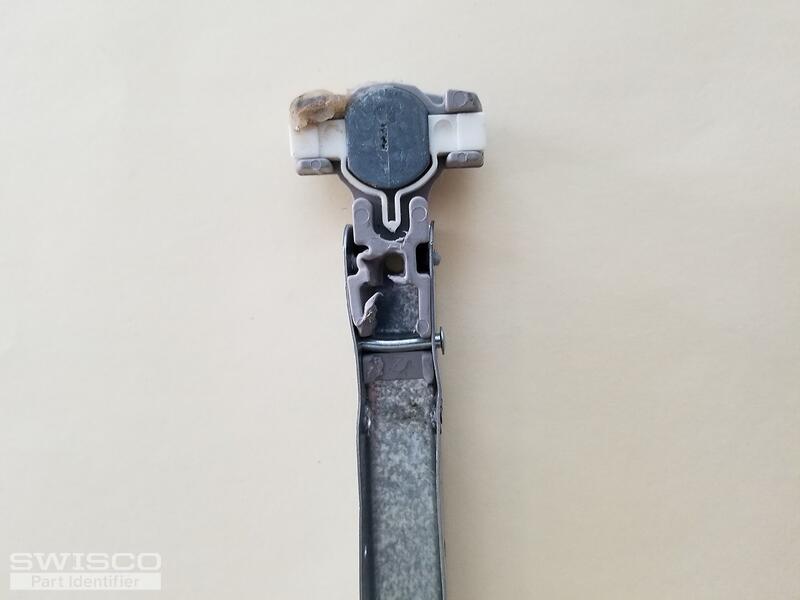

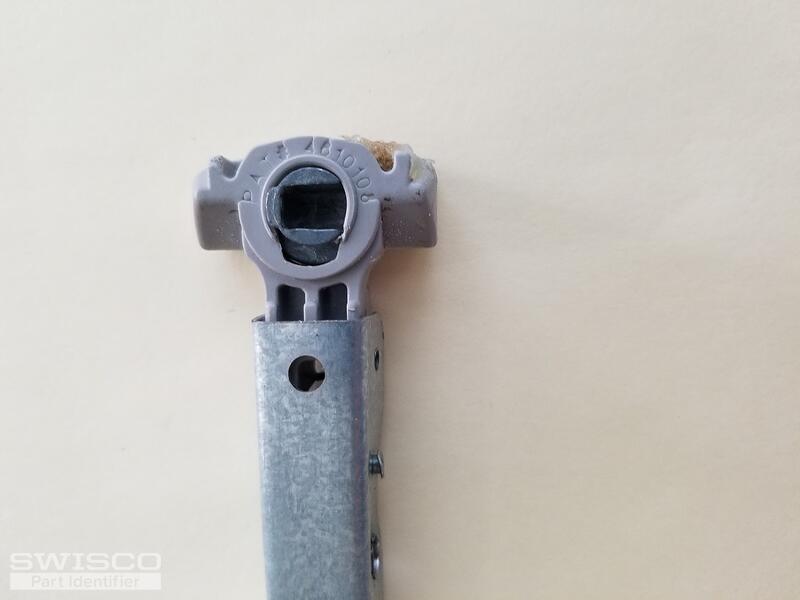

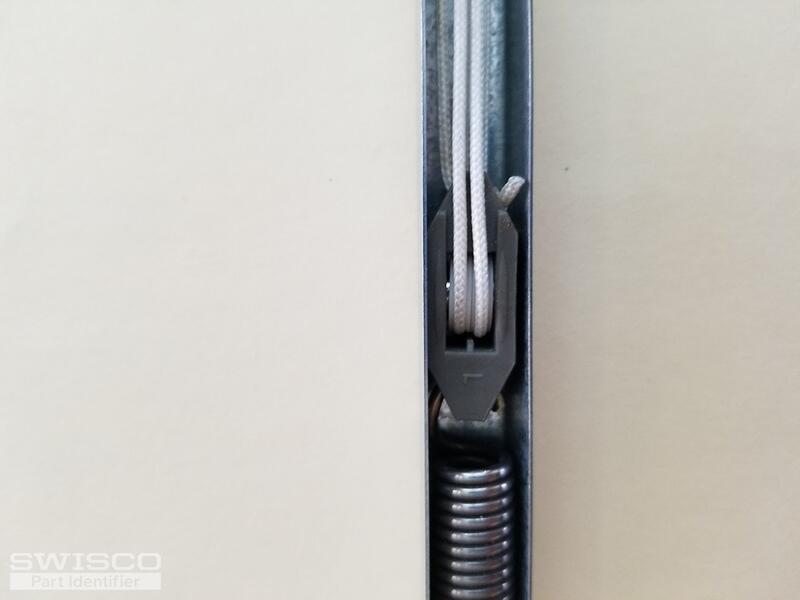

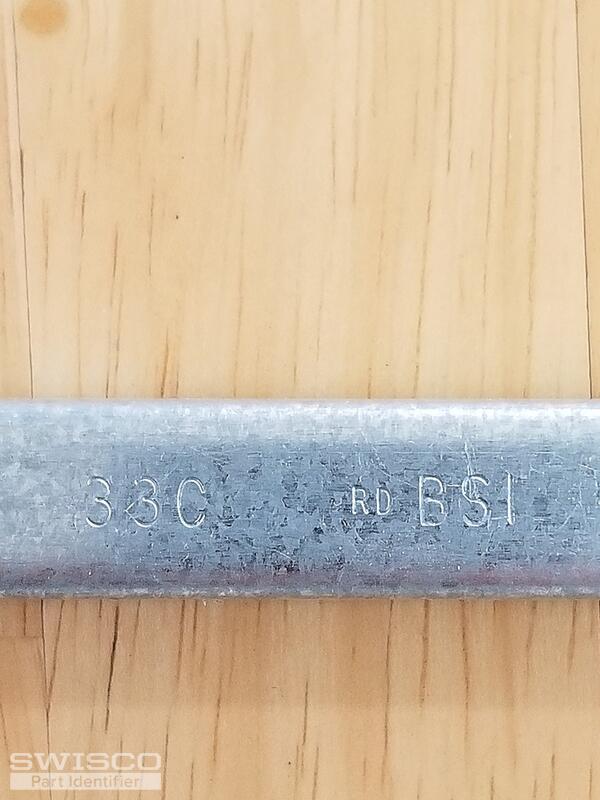

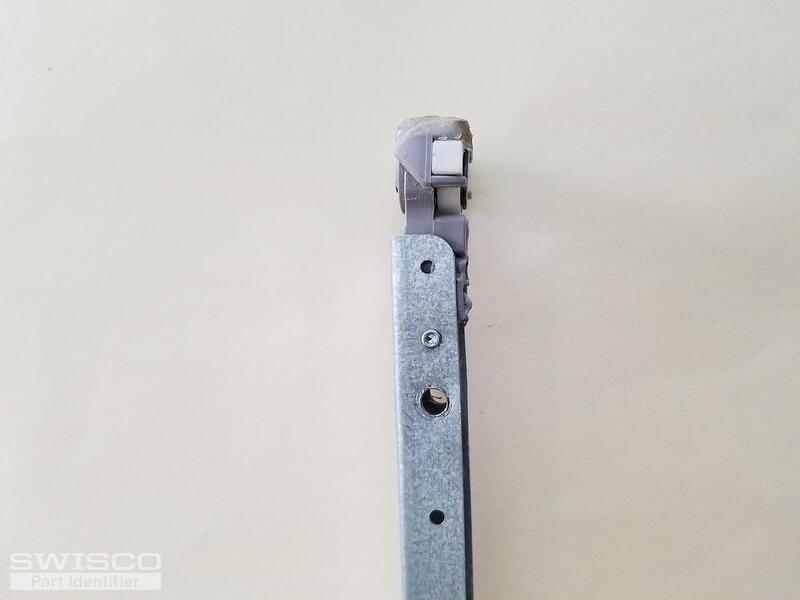

Hi there, thanks for the great photos of your balance. It looks like you need our S795-33 channel balance with 1-1/4" wide T-Lock shoe and a screw on clip on the cord. The spring weight code is 33C for a window sash weighing between 20 to 25 lbs. Please look everything over to be sure you agree.
