Looking for 2 new balancers

Handy Person from California

Oct 5, 2019 4:22 pm

The balancers I have are marked 2640. I've been trying to match them up to your options but having a tough time matching the end closest to the spring(see picture) the other end near the pulleys seems to match up to options you have available. The balancers are 1/2 wide. Please let me know if you have anything that would match.

1 user uploaded image

4 Replies

Bob from SWISCO

Oct 8, 2019 10:39 am

Thanks for writing in. Balances are actually identified by the style of the nylon fittings on both ends of the metal channel; the stamp code just refers to the calibration of the spring inside the balance. We can identify this balance for you, but we'll need to see the bottom nylon fitting as well. From there, we'll narrow down the right kind or Series you need. Many thanks.

Handy Person from California

Oct 8, 2019 8:23 pm

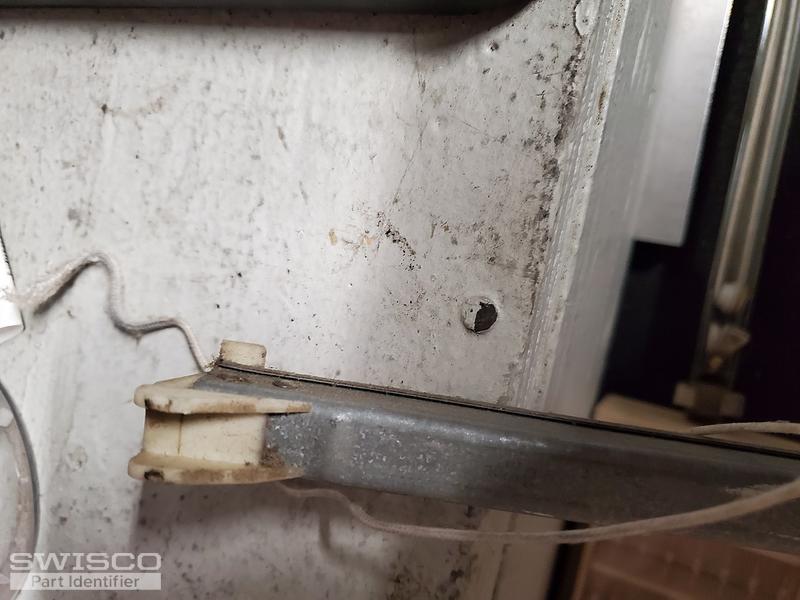

Here are more pictures of the nylon fittings on both ends. Let me know if this is enough or there is something else you need to see specifically about the ends.

3 user uploaded images

Bob from SWISCO

Oct 9, 2019 8:58 am

Thanks for replying back with more photos. Your balance looks close to both our Series 380-27 and S385-27. The difference between these two balances lie within the measurement of the bottom balance shoe. The depth of the Series 380 is 1" and for the Series 385 is 1-3/32". You will need to measure the depth of your bottom balance shoe, like in the diagram below, to determine which balance is the best match for you. Whichever one chosen will go with the 2640 option.
