Looking for 30" Channel Balance

Home Owner from Florida

Feb 19, 2026 10:36 pm

Hello,

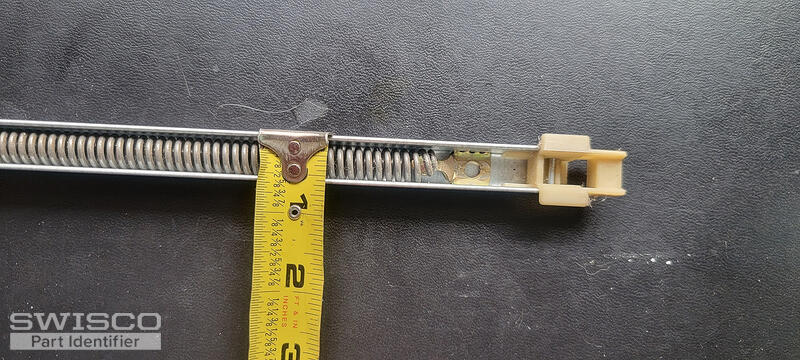

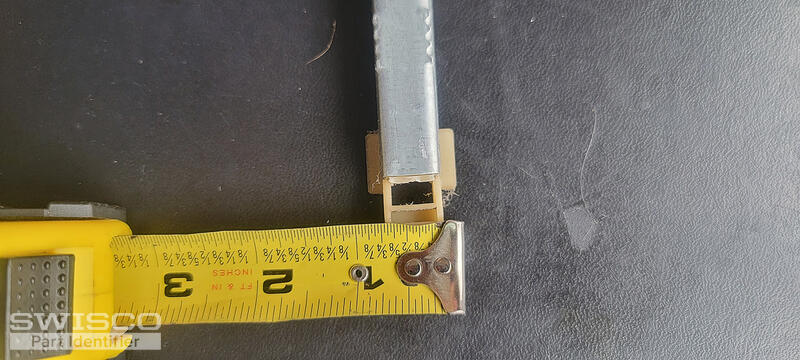

I have several channel balances that need to be replaced. All the windows are of the same non-tilt design. The balance that I have is 30" long and stamped with 29 4 DT CMC 4. Attached are the pictures of the bottom and the top. Thank you very much,
Vladimir

5 user uploaded images

4 Replies

Jasmine from SWISCO

Feb 20, 2026 11:34 am

Thanks for your post! I'm confident we can supply the replacement for this window balance. Although, to narrow down the correct match, I'll need to see a photo of the metal piece connecting the spring and cord (string) in the middle/center of the balance.

Please let me know if you have any questions.

Home Owner from Florida

Mar 3, 2026 9:58 am

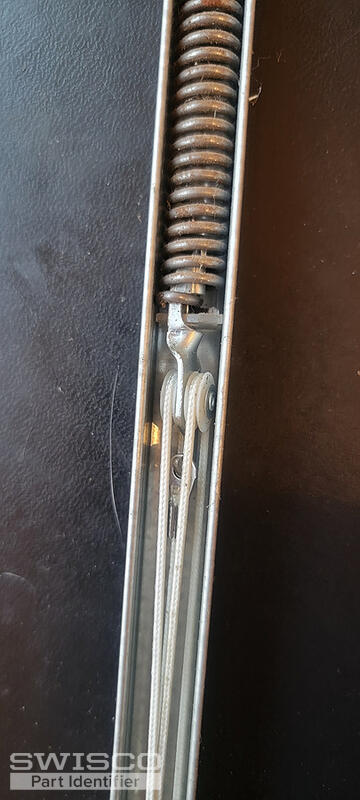

Thank you very much for your reply and I apologize for my delay. Attached is the picture you requested. Thank you for your assistance.

1 user uploaded image

Jasmine from SWISCO

Mar 3, 2026 10:43 am

Thanks for the additional photos. This window balance is a match for either the S380-30 or the S385-30. You'll need to confirm the depth of your shoe to confirm the right series.

Our 2940 stamp should work in place of the one you have but it would be a good idea to double check that the sash weight falls between 23 to 28lbs.

Comparison of the S378, S380 and S385 balance shoes.
