Looking for Bi-Fold Closet Door Parts

A quick learner from Kansas City says:
I need 2 Bottom Rollers, 1 Bottom Pivot, and 1 Top Roller. I can't find any markings on either the parts or the door. Each is about 4 inches long. Any help you could provide would be greatly appreciated!

-Don M

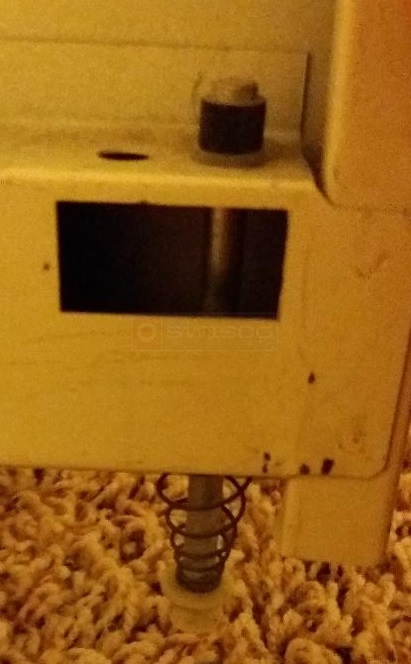

bifold pin
Profile picture of Paul
Paul from SWISCO responded:
I'm afraid I can't make out your guide and bifold pin. Could we see a clearer picture of it, perhaps out of the door? We would also like to see the pivot bracket. Finally, please tell me the diameter of the metal pins and diameter of the nylon caps.
A quick learner from KS says:

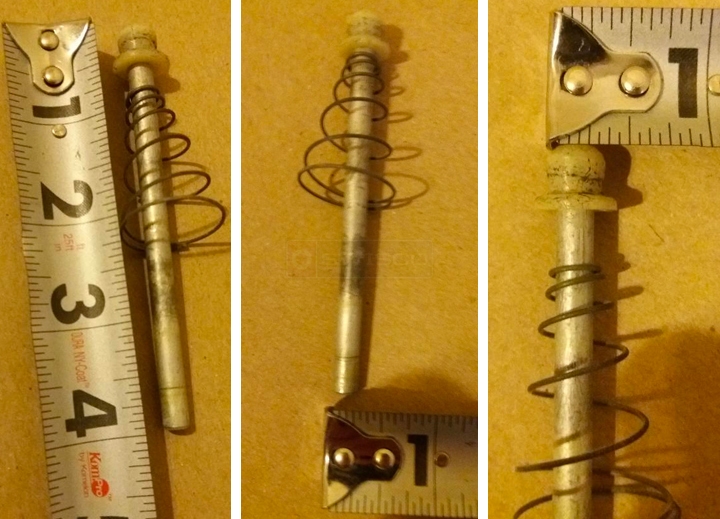

Here is the "roller" pin. It is the same top and bottom. I am having trouble getting the pivot out, will add soon.
User submitted photos of bi-fold door hardware.
A quick learner from KS says:
I no longer need the pivot. I was able to bend it back into place. If you can identify the roller part, I still need 3 of those. Thanks!
Profile picture of Paul
Paul from SWISCO responded:
We believe you need the old Peachtree guide pin, 21-071. Please compare. Is this your part?
A quick learner from KS says:
I think that may be it. Just ordered 4 of them, will let you know! Thanks for all your help.

-Don
