Looking for Glass Patio Door Handle Set

Question

The attached PDF shows several pictures of the glass sliding door where the handle goes, as well as the latch. It also includes pictures of the actual handle. The second PDF is a PDF I found online that shows the model number of the door. The third PDF is a picture of the sticker on the door that shows the model number information; Series: M-2000 - SGD-R20-180X97.

Please let me know if you need anything else.

If the handle comes in different colors, I would like dark wood.

Thanks so much for your help!

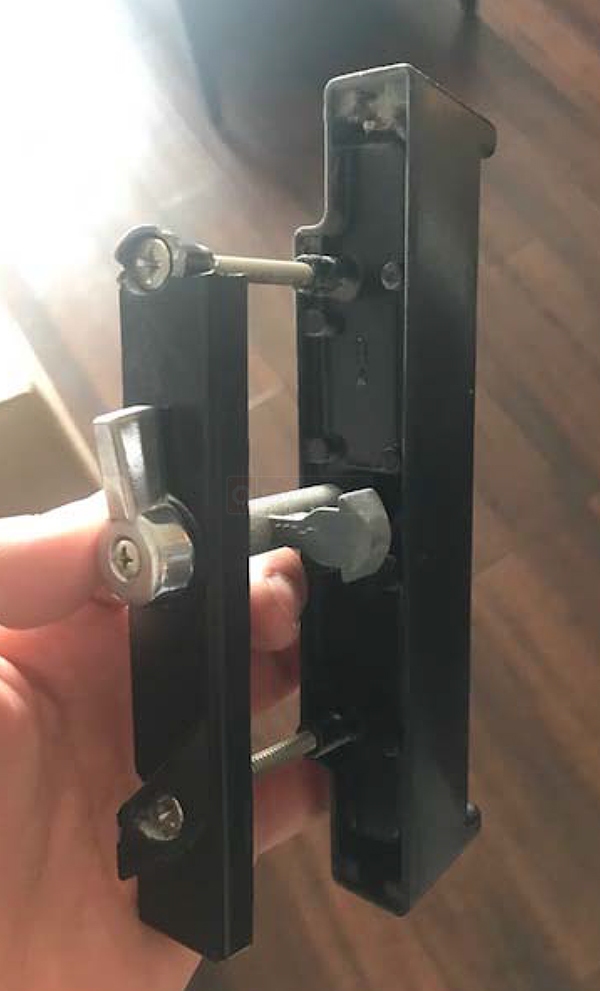

User submitted photos of patio door hardware.

Dave Sr. · Accepted Answer

I believe you could have the Acorn 82-055 handle set, which has a 3-1/2" mounting hole spacing. However, also take a look at the 82-033, handle which has a 3-15/16" hole spacing instead. Depending on your own hole spacing, one of these may be what you want.

Take note that because your door is a thermal break type might have a thicker frame. These handles are normally used on patio doors that are only 1" thick. If your door is thicker, you will need to reuse the existing screws and internal locking hook.
