Looking for Window Crank

A quick learner from Omaha, Nebraska says:

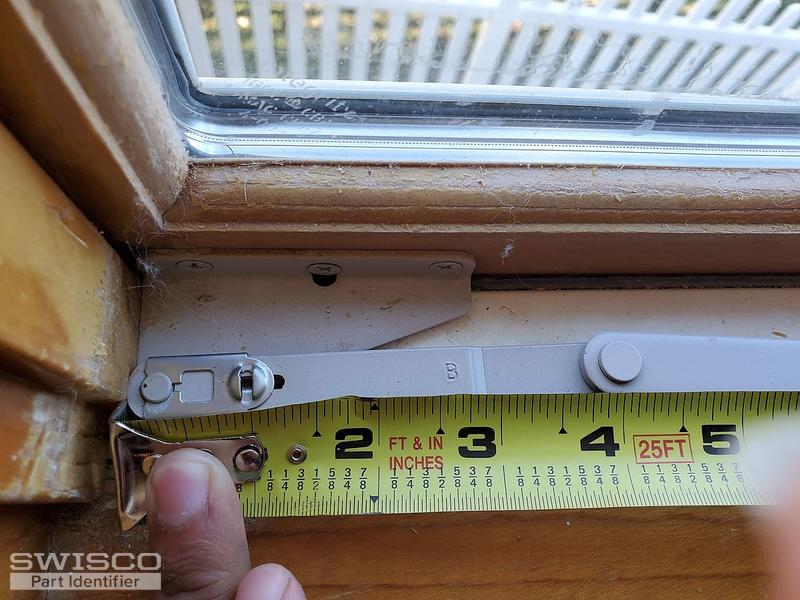

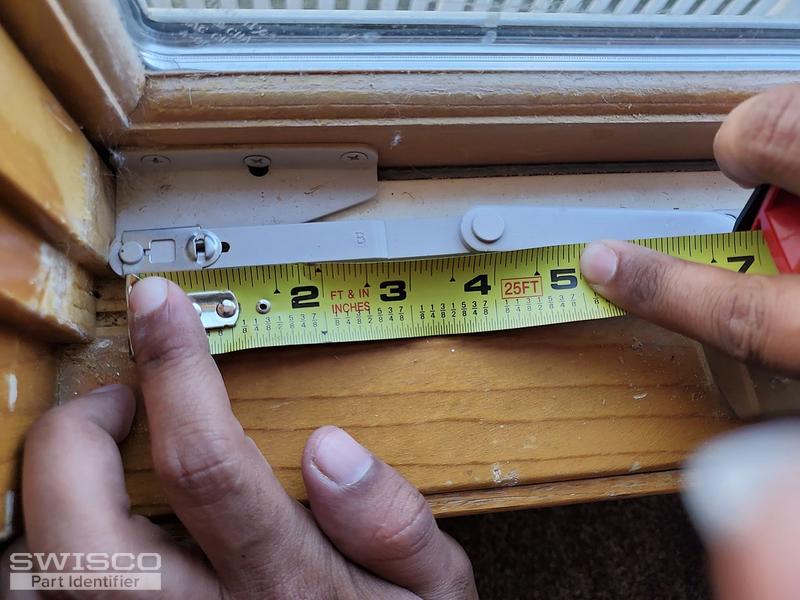

Hello, having problems locating this window crank considering it's dimensions. Please advise on which crank to purchase. Thanks for any help you can provide!
Thumbnail of the uploaded file named 91179554_254164368946922_3849994970303823872_n.jpg
Thumbnail of the uploaded file named 91215857_562287121362558_6879743842401124352_n.jpg
Thumbnail of the uploaded file named 91287599_618306612359179_5554060314854555648_n.jpg
Thumbnail of the uploaded file named 91315458_682796589135653_5156185780187561984_n.jpg
Thumbnail of the uploaded file named 91320483_829828560828708_5810445707529682944_n.jpg
Profile picture of Tom
Tom from SWISCO responded:

We don't have an exact match for this operator, but I think our 39-172 is a good contender. The only issue is that the link arm appears to be 1/2" longer than yours. It may still work as-is, but if not you might have to get creative. Ordinarily, we recommend adjusting the position of the bracket on the arm to make up the difference, but it doesn't look like you have a lot of room for that.

What you could do is drill out the arm off both the new and old arm, then install the old arm on the new operator with our 62-014 rivet. I know that's not an ideal situation but it will work for you if all else fails.

A quick learner from Omaha, Nebraska says:
thanks Tom. I ordered it and adjusted the mounting of the crank slightly to the right and we're good to go. Had to cut out a bit more of the frame but it fits fine now. Thanks again!
Profile picture of Tom
Tom from SWISCO responded:

That works, too! I'm very happy that you were able to come up with a working solution. If you ever need anything else, please let us know.
