Looking for a shoe to fit my window

Home Owner from Washington nj

Aug 9, 2019 10:13 am

Good day I can not find this part at all, I've bought a couple parts from you, and nothing seems to fit.

Bottom picture: the top drum is what I have
the bottom is what you send

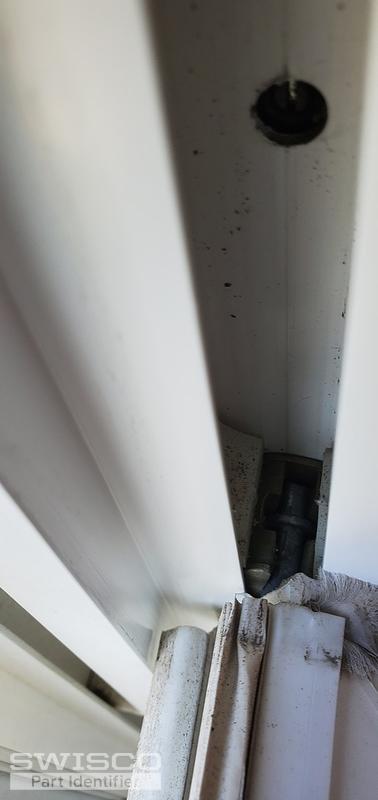

First picture: this is what I have to replace the picture next to that is what you sent me it's not wide enough to insert the window sash into,

I also included the window tag maybe this will help.

4 user uploaded images

4 Replies

Bob from SWISCO

Aug 14, 2019 12:57 pm

Thanks for writing in. This is an old Simonton Pivot Shoe that isn't made anymore. Our 15-192 is the only known substitute; however, the metal cam differs from your old shoe. You will need to re-use the old metal cam within the new pivot shoe body.

Bob from SWISCO

Aug 14, 2019 3:17 pm

We see this problem on occasion with Simonton windows. To correct the problem, we suggest switching out the metal cam in the 15-192 pivot shoe with the cam from your old shoe.

Home Owner from Washington nj

Aug 14, 2019 3:56 pm

Good day,
I had purchased this already and the opening is not big enough to insert the sash, is it possible to change out the metal pieces that insert in to the drum into the flat inserts
