Looking for a specific pivot shoe

A home owner from USA says:
June 20, 2018
Good morning!

I am looking for a specific pivot shoe for my 19 year old tilt windows in my home and was hoping you have it.

Here is a link to a nearly identical product you sell:

https://www.swisco.com/Pivot-Shoe-5_8-inch-Thick/pd/Tilt-Window-Replacement-Pivot-Lock-Shoes/15-070

The only difference is that I need an open cam. The measurements are perfect, just need the open cam.

Do you have the pivot show I need?

Thanks,
Mark
Profile picture of Tom
Tom from SWISCO responded:
June 25, 2018

I'm not sure what you mean, exactly. The term open cam generally means it's hollow straight through, but they don't make a version of our 15-070 like that. To be honest, they don't make any alternate versions of the 15-070. Could you show me a picture of your original pivot shoe out of the window? That would help us determine what you have. If there's one difference, there are likely more.
A home owner from USA says:
June 27, 2018

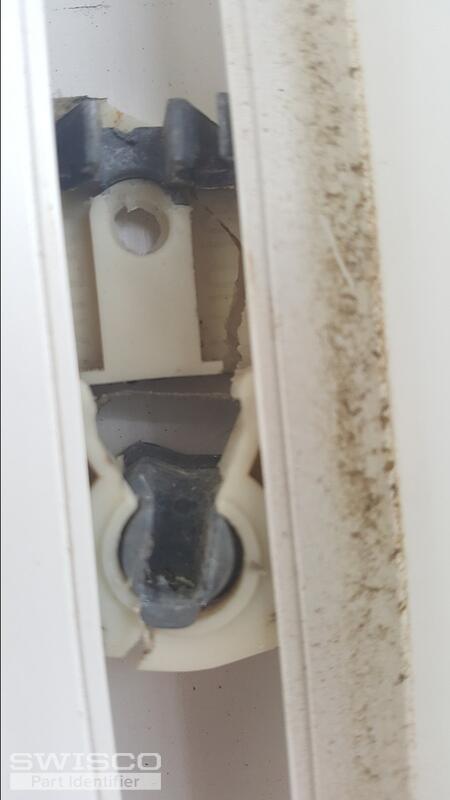

Attached is my current pivot shoe. The open cam that I am referring to is at the top. This opening allows the small piece on the window to slide in and down so that it rests inside the metal piece. I need a replacement for both pieces in 1 window.

Thank you for the assistance!
Thumbnail of the uploaded file named pivot-shoe-me.jpg
Profile picture of Tom
Tom from SWISCO responded:
June 28, 2018

Thank you! The closest match we've been able to find is our 15-167. It's not exactly the same but it is similar. I would just go over our dimensions to see  how well they compare.
Pivot Lock Shoe
Pivot Lock Shoe
15-167
$2.57
