Looking for an Anderson f-9400-8 b window operator

A quick learner says:

Like to buy some window crank replacements

Anderson part number is c-9400-1

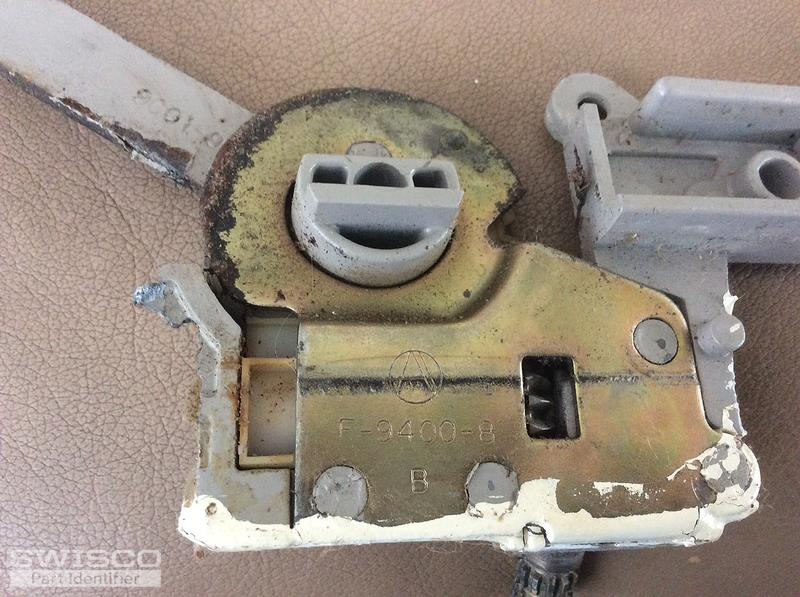

Thumbnail of the uploaded file named C5F0829E-067E-4687-942E-726B3BFA8995.jpeg

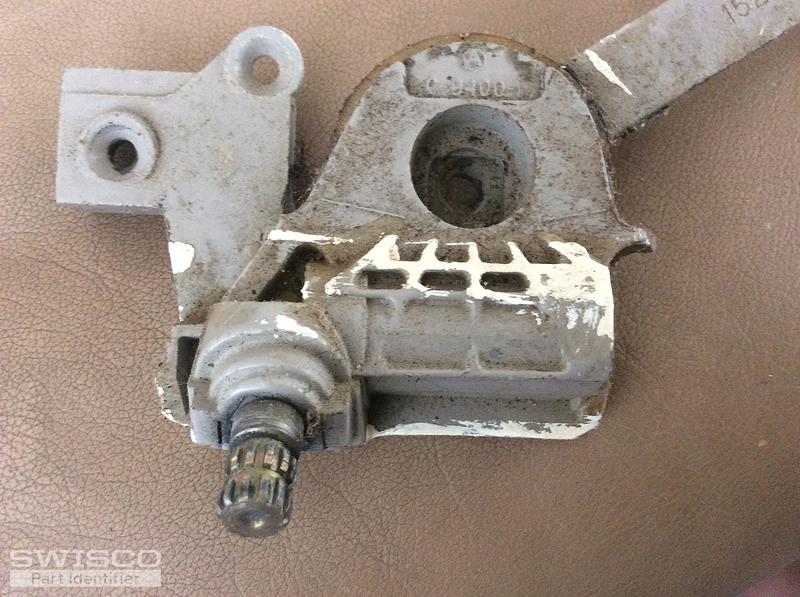

Thumbnail of the uploaded file named 764FA7FA-9481-4211-B7DA-0AB7035A24CA.jpeg

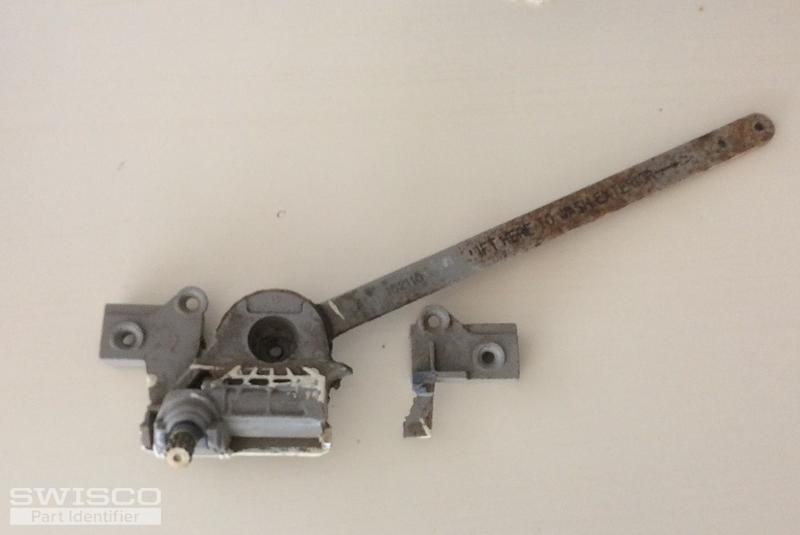

Thumbnail of the uploaded file named 74BE6855-4BAA-4FCA-ADDE-155A3D50B056.jpeg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

I notice the slider is missing at the end of the arm of your operator, but I think our 39-332 would make a fine match. Look it over and see what you think.

A quick learner from Westbrook CT says:
Pics above look exactly like my crank. I looked at your replacement 39-332 and it looks correct except the arm is 14" and my arm is only 9". Do you have the same crank in 9"? Do I need the adapter 39-362? Thank You
Profile picture of Bob
Bob from SWISCO responded:

See our 39-099 Andersen Awning Operator, which has a 9" long straight-arm. Compare and see if you think this is what you need. Now, you'll note the base of the 39-099 has a hole spacing of 3-11/16". With some older versions of this operator, the hole spacing is 2-11/16" instead. In that case you'd absolutely need the 39-362 adapter. To be honest, I would advise getting it anyway just to be safe; if it turns out you don't need it, you can return it via our Return Policy here
