Looking for both left and right window sash lock

Question

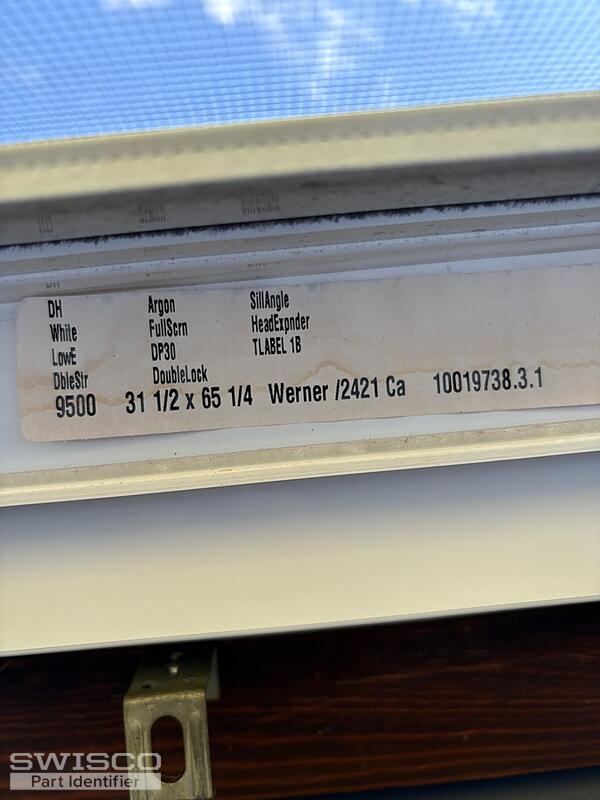

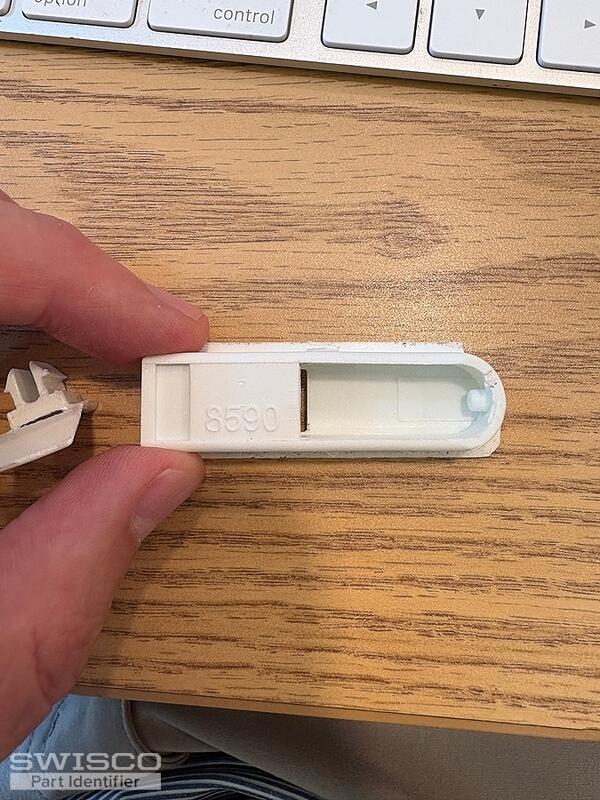

This is for a silver line window 9500 series.   The part I'm looking to replace the window sash lock on the back of it has the numbers 8590 on it I am looking for both the left and the right I need this for multiple windows. Can you assist in identifying the proper part to order

Jasmine · Accepted Answer

Your tilt latch reminds me of the left handed latch from the 26-408 Tilt Latch Pair. To confirm that this is the correct replacement, carefully review and compare the dimensions below.

Alternate image for 26-408

Alternate view of 26-408

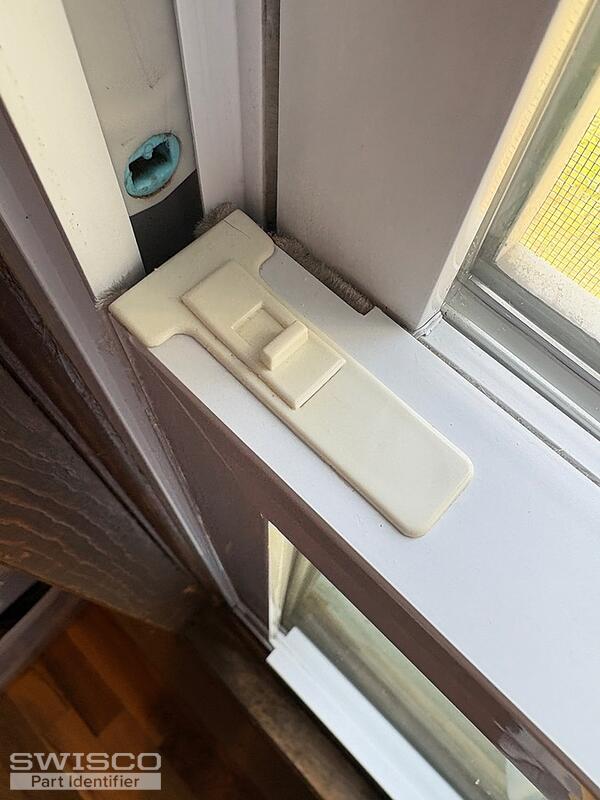

I'd also like to note that the part in the window track, right above the latch, is the 15-087 Coil Housing Pivot. This part should not be positioned where it is in the window track. It is part of the coil assembly that helps to support the sash weight, when opening and closing the window.

The pivot bar, installed on the bottom of the sash, is no longer connected to the blue cam in that shoe. This means the window may no longer stay up when open.

Be sure to double check that the balances and/or the pivot bar do not need to be replaced as well.
