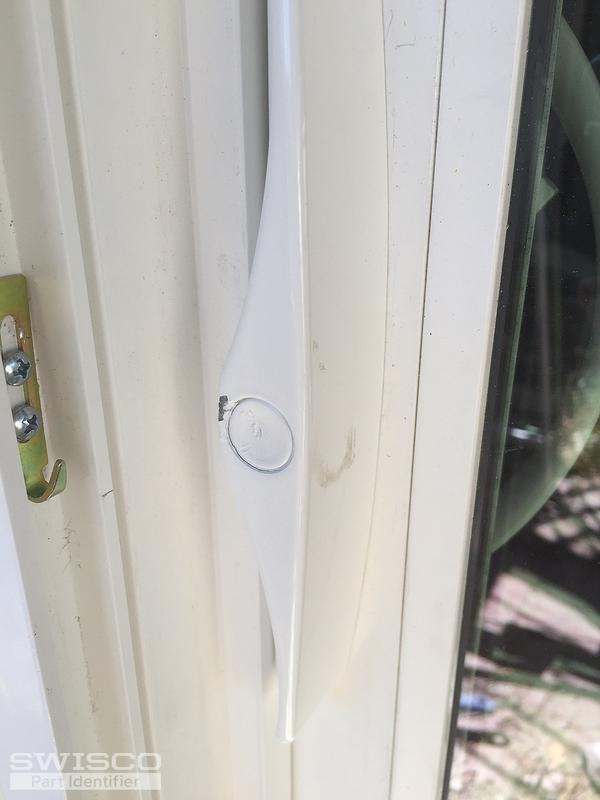

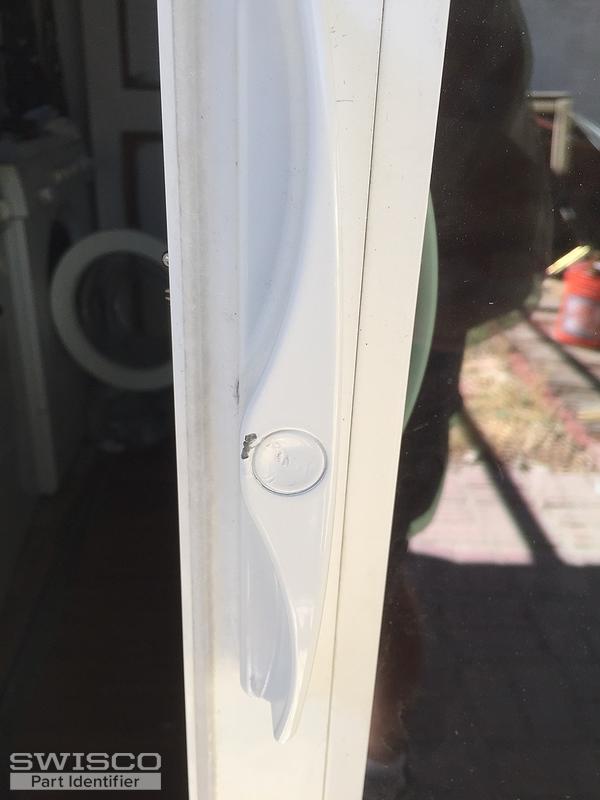

This is a new sliding glass door from "MI", model 910. It comes with an optional external key lock. I didn't get one with the install, but would like to install one. I can see a circular punch out for a key, but have no idea what to order so I can lock from the outside. Do you have any options I may consider!
Thanks,
Mike
Hi Mike, it sounds like our 82-310 would make a great option for you! Look it over to be sure you agree.
Thanks so much! After watching the instruction video, it looks like I will probably need a housing cover for this as well, but I'm not sure.
Would this product work, keyed lock with housing? https://www.swisco.com/Key-Lock-Kit/pd/Patio-Glass-Door-Replacement-Key-Cylinders/82-315
Just want to make sure it's the same lock, but with a housing cover.
Thx again
Hey, Mike. I think I can help with this question.
You actually won't need the 82-315. Your handle technically has the 82-315 housing built into it already; the curved protrusion you see along the raised pull serves the same function. All you need to do is knock out the center punch and you should be able to install the key lock normally.
I'm afraid there is no outside handle that has a hole pre-punched. I recommend watching the video below, this should tell you the proper method of getting that knock out hole out. I can tell you right off the bat that you want to take the handle off before you attempt anything.
