Looking for crank cover, handle and locks

Home Owner from Louisiana
Hello,

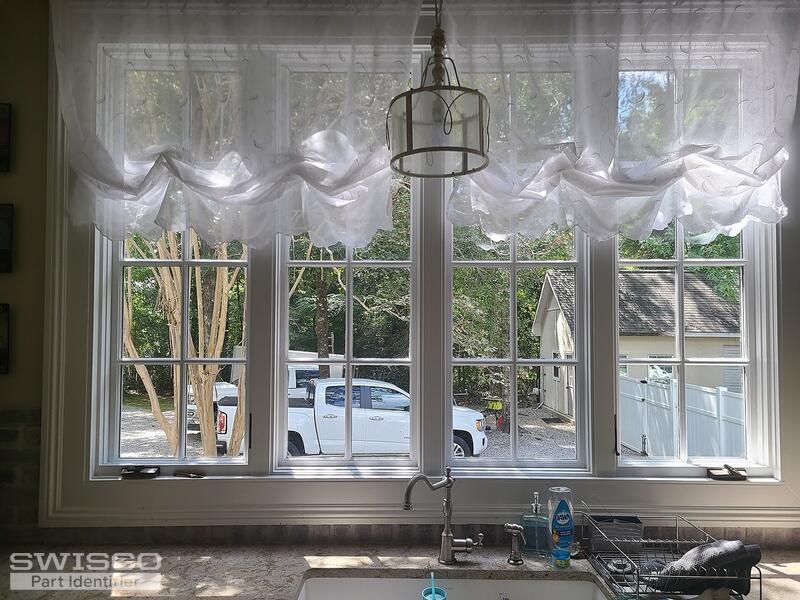

There is a double casement kitchen window in a house I purchased built around 1985-86. It appears the builder never replaced the plastic "construction" covers/handles.

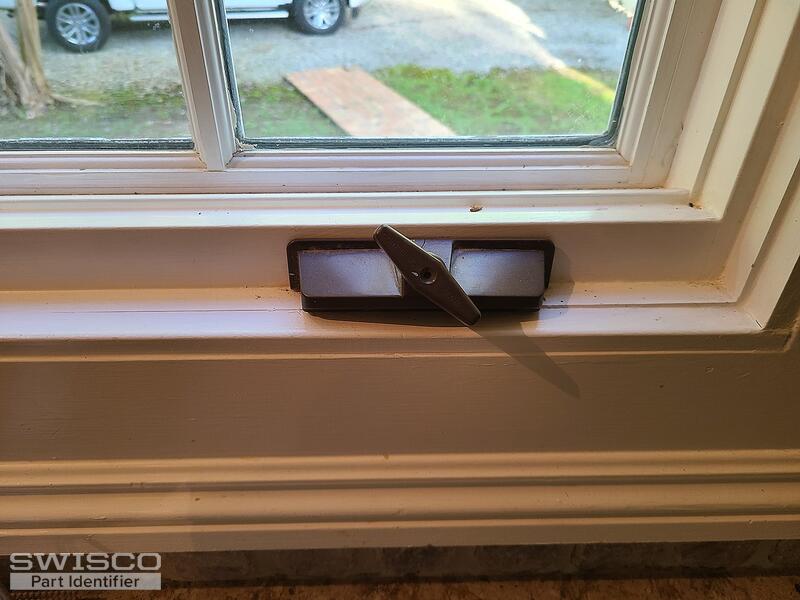

I have uploaded pictures of the crank/cover and lock handle. I did not see any other numbers or markings.

Thanks,

Tommy
5 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there Tommy.

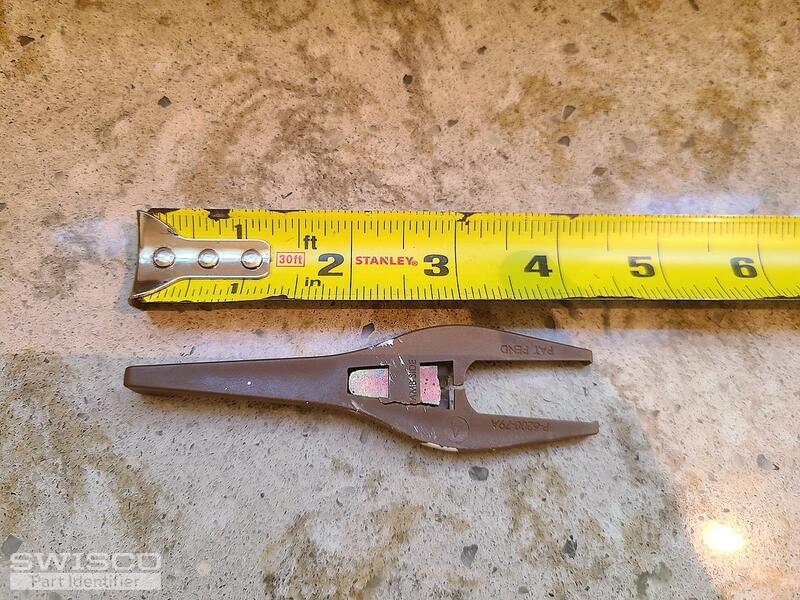

Thanks for reaching out to us. The fork-like handle reminds me of the 38-205 and 38-209. Take a look at the specifications and see how they align with your old hardware.

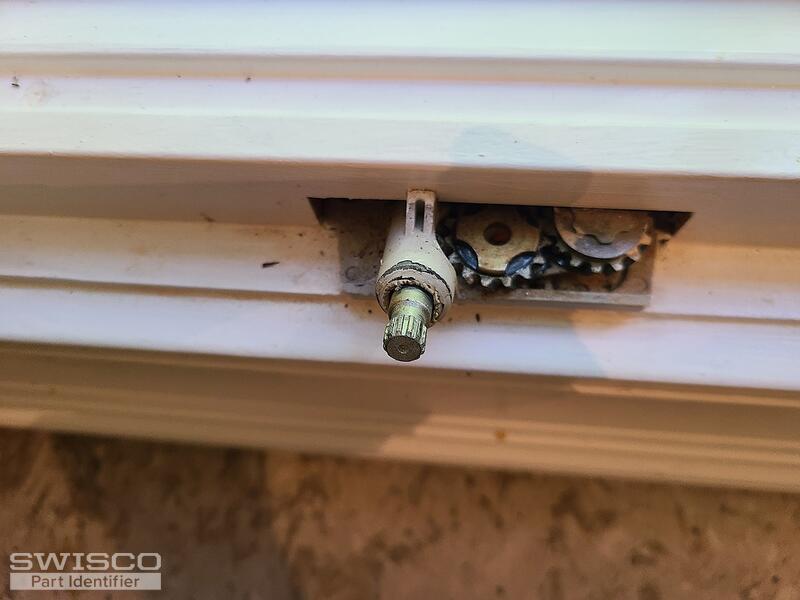

Regarding the operator in the third photo, could you remove the cover and show us the base? I'm just not sure if it's the same as the base of the operator in your first photo.

Home Owner from Louisiana
Hi Emily,

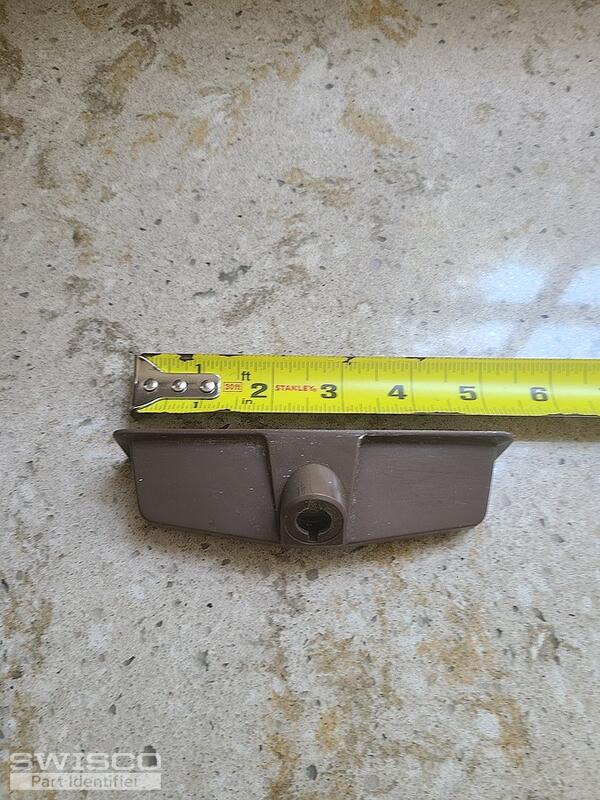

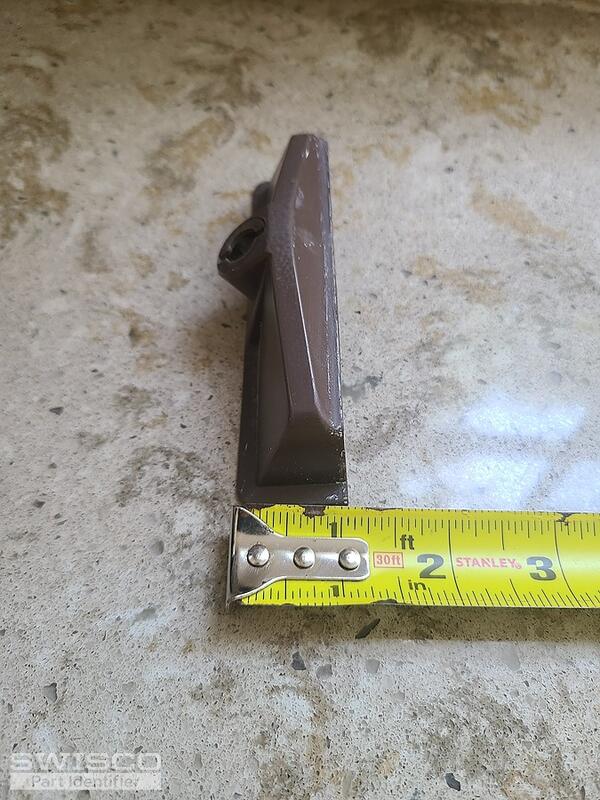

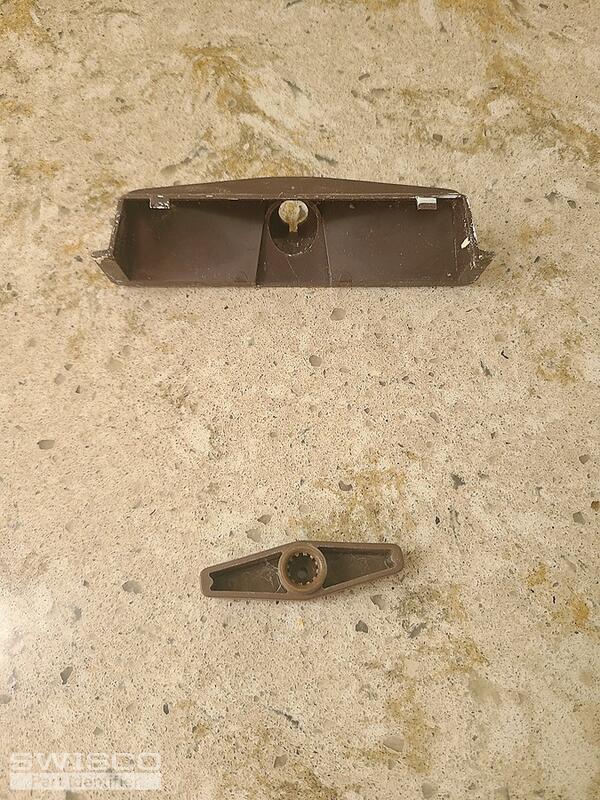

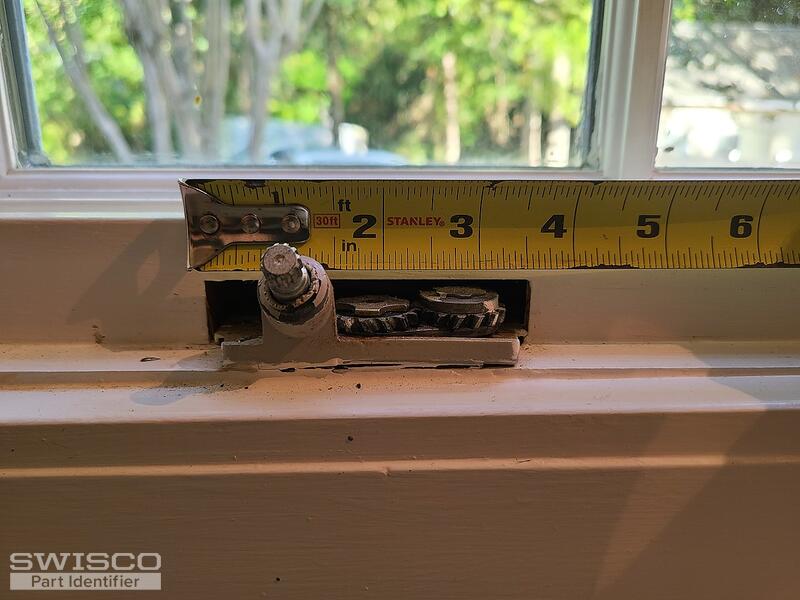

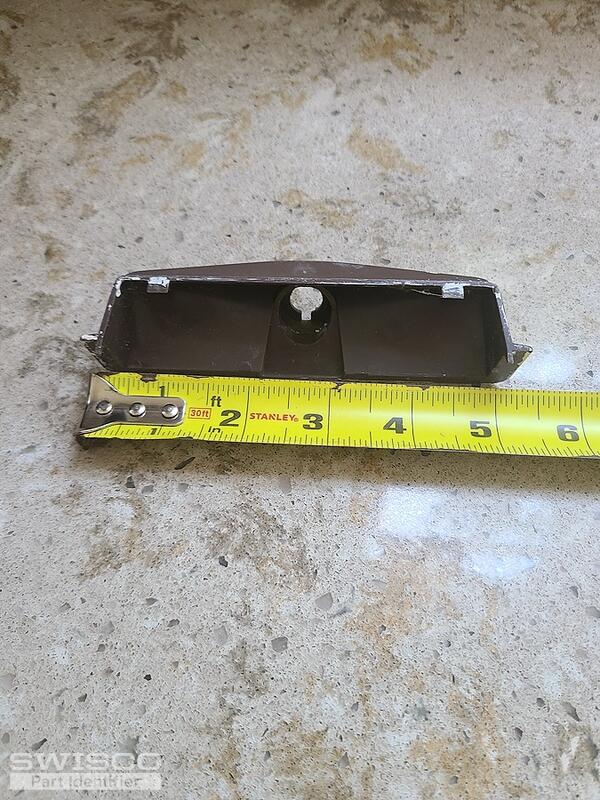

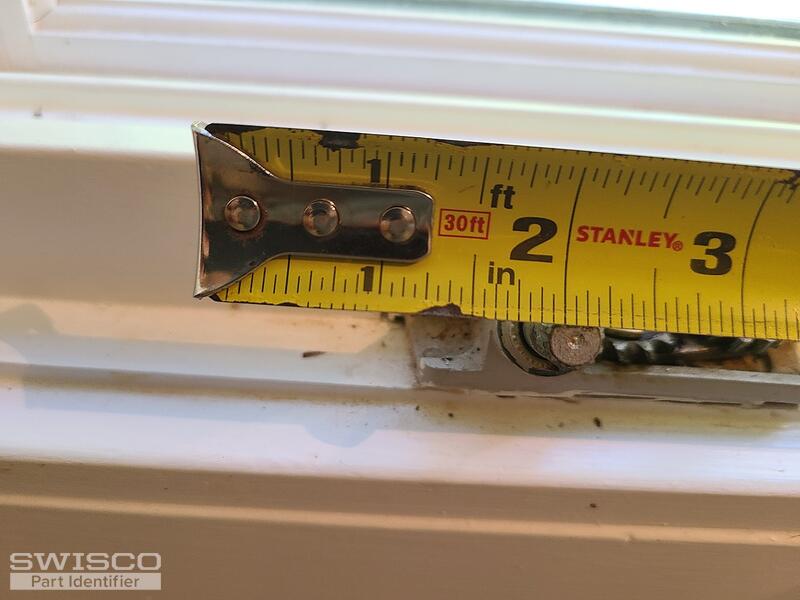

Here are some more pictures of the base with measurements. There are 2 windows (right and left) but the cover is the same for both sides.

Let me know if you need any additional info.

Thanks,

Tommy
5 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thank you, Tommy! I wonder if our 39-107 cover could be what you need. Please note that it's designed to fit on an operator base like the 39-031 for example so we don't believe it will fit the operator in your first photo in your initial discussion post.

We don't sell your exact handle but the 39-102 is similar. This is designed to fit an 11/32" spline so you'll want to ensure the old handle's hole is 11/32" in diameter as well.

Let me know if you have any questions!

View with measurements.
View with measurements.
