Looking for fitting for locking mechanism for slider handle

Quick Learner

Sep 14, 2015 2:33 pm

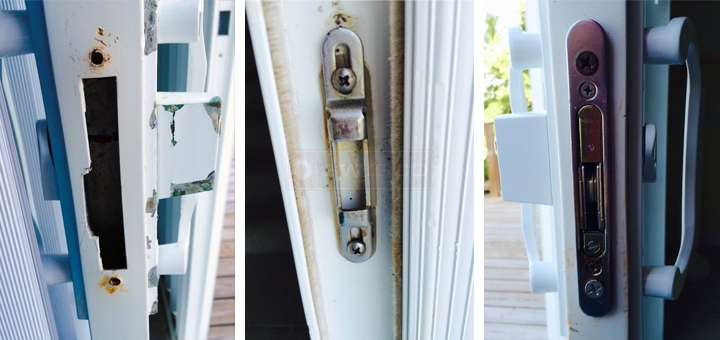

Shown is photo of same door in another room which still had casing intact. Casing for another room missing when we replaced handle and therefore we could not install the locking mechanism for that door. I ordered the door handles from you.. See conversation D55610. Can you help?

User submitted photos of patio door hardware.

4 Replies

Tom from SWISCO

Sep 15, 2015 3:58 pm

Hello again! I think we can help, yes. Assuming the missing lock is the same as the one you still have, I think our 82-226 could be a great match.

Quick Learner

Sep 16, 2015 12:02 pm

The lock on the right is installed but it does not latch into the keeper properly. Is it possible that 82-223 to be installed to the interior of the door edge rather than exterior could be a better fit?

Tom from SWISCO

Sep 16, 2015 1:08 pm

That may not be necessary. I'd wager you just have to adjust it. Do you see that slotted screw directly under the hook? Turn that to move the hook further out or further in. That should allow it to latch the keeper more securely.
