Looking for folding or nesting crank handle for casement window

Home Owner from 48307

Aug 18, 2023 10:53 pm

Hello, my house was built in 2010 with several casement windows. The handles say Weather Shield, but windows have no markings.

I want to replace handles with nesting or maybe folding to allow blinds to fully go down to sill.

Can you suggest a replacement?
Thanks

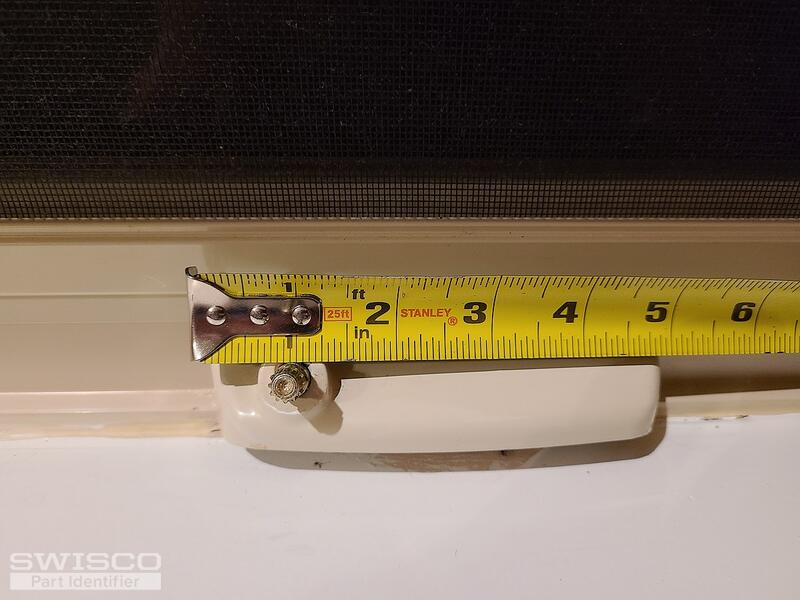

4 user uploaded images

4 Replies

Lauren from SWISCO

Aug 21, 2023 11:06 am

Hello, thank you for posting,

To further review, are you able to show us the window open where we can see a bird's eye view of the operator arm attachment(s). Once we know which style of operator you have, we can give a clearer idea of the best folding option available.

Please note that our folding handles will not provide full clearance for blinds.

Home Owner from 48307

Aug 26, 2023 5:57 pm

Thank you for your help.

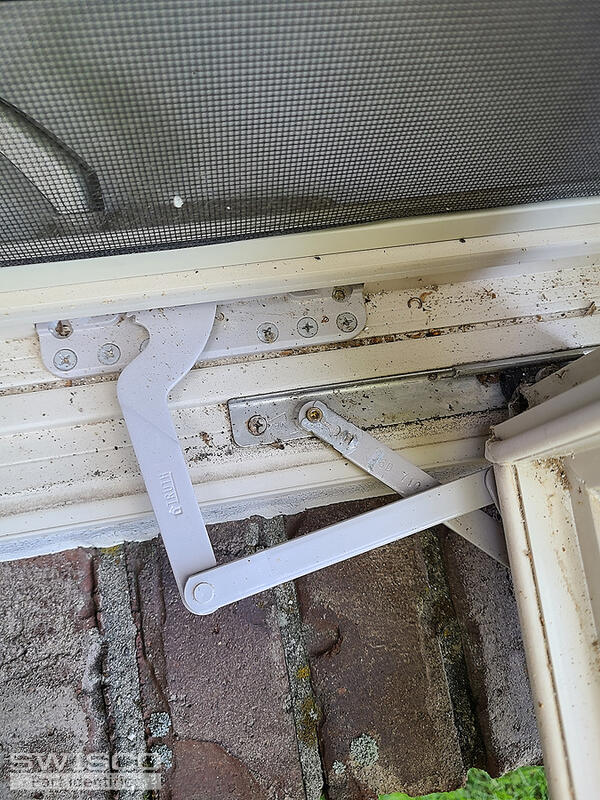

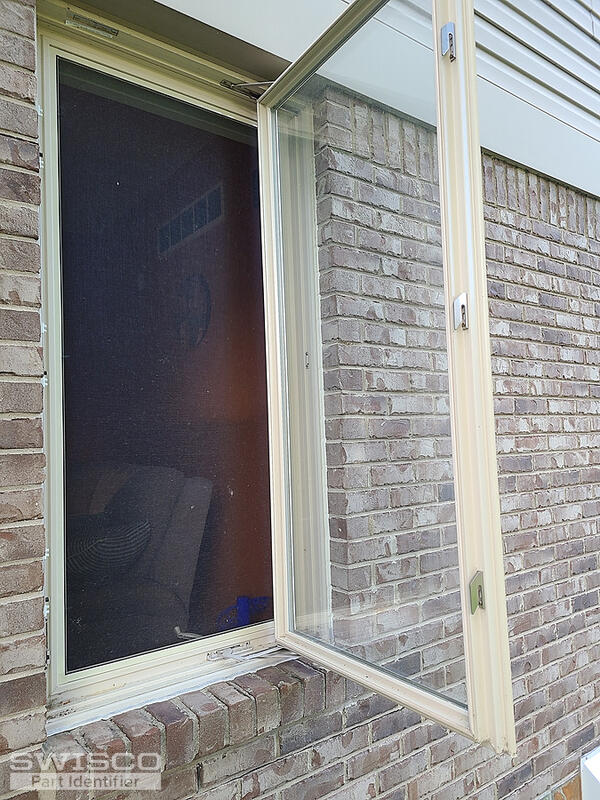

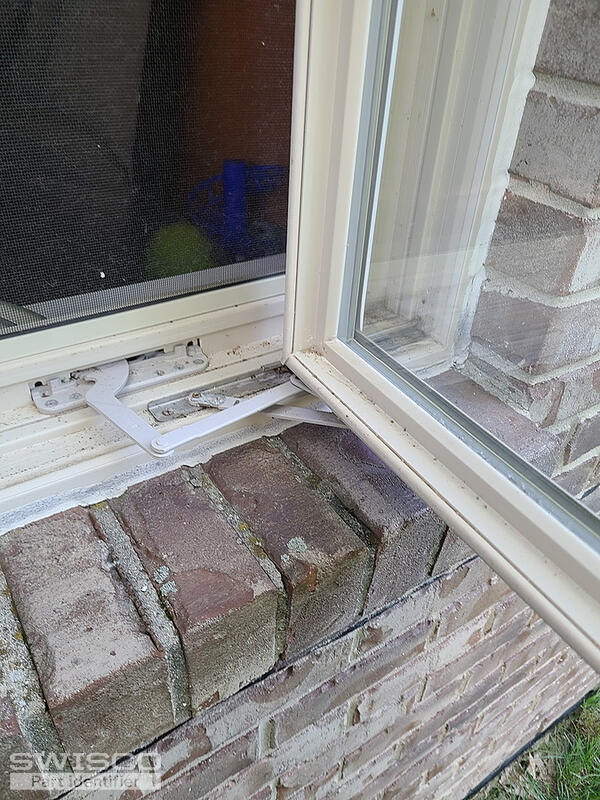

Attached are additional photos of the window and hardware.
I noticed "Truth" engraved in one of the pieces. The other piece also has an engraving which looks like "6D 710." There may be a digit scratched off before the 6.

Is there a different kind of handle you would recommend to provide clearance for blinds? I have seen some that nest and others that are very short, like a crank you would imagine for a toy.

Thanks for the help.

5 user uploaded images

Lauren from SWISCO

Aug 29, 2023 9:39 am

Thanks for getting back to me. Our 39-220B resembles what you show here. Your spline is likely 11/32" so the 39-102 and 39-205 would be our best options. However, I can't promise either will give you the clearance that you need. Most window manufacturers don't consider blinds when they design their hardware, unfortunately.
