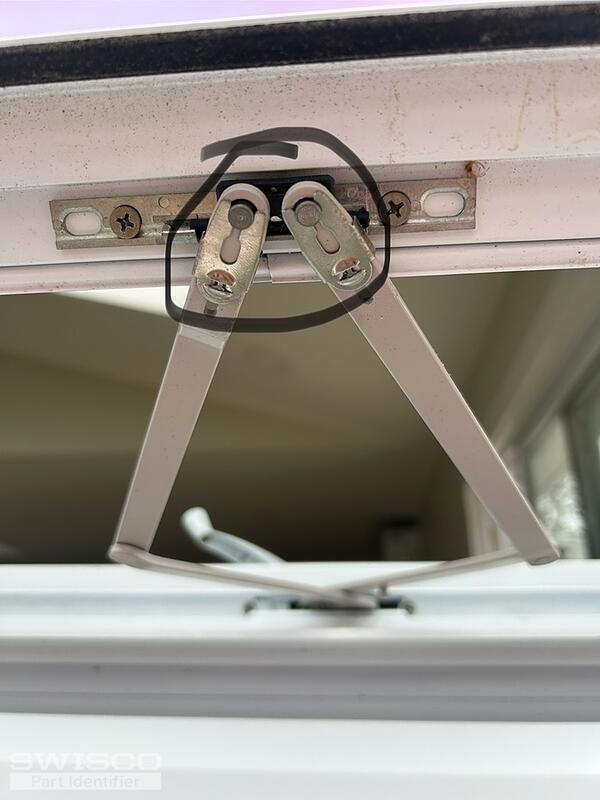

Looking for hardware/pins to connect the Arms.

Home Owner from New Jersey
I have the arms, as well as sash plate, but don't have the hardware to mount it back up. Can anyone help locate them?
The crank arms have numbers:
3236(left) 3027(right)
4 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

Thank you for reaching out to us. Are you looking for the 39-340 bracket? This is designed to be used with the 39-393 awning operator but please note that the detach clips are not sold separately. Take a look at the specifications and see if they meet your repair needs.

Let us know if you have any questions!

Dimensions for 39-340
Dimensions for 39-340

Side profile view with measurements
Side profile view with measurements

Home Owner from New Jersey
Appears to be! Just purchased, thank you.
Emily
Emily from SWISCO
SWISCO
Expert

We appreciate your order. Good luck with the repair!
