Looking for new balance

A home owner from Mount Holly NC says:
January 27, 2022
Hi, I have 7 windows in my house that do not stay open. The house is 24 years old. Only one balance is still together. I took it out of window, see attached photos. The only marks on it is "PAT. PEND." Top to bottom it is almost 29" and the part that was attached to the window is 1 3/8" wide. The window it was hold up is 16 lbs.
Thumbnail of the uploaded file named Balance_Bottom.jpg

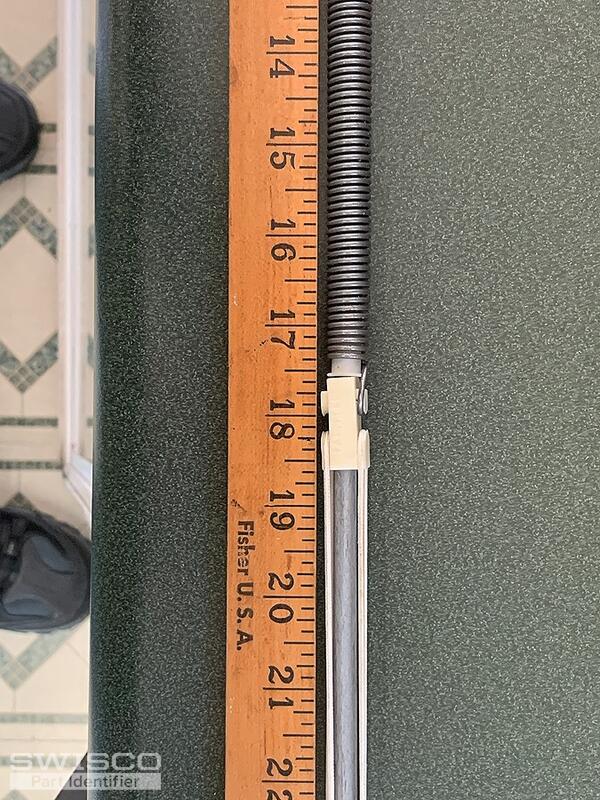

Thumbnail of the uploaded file named Balance_Middle.jpg

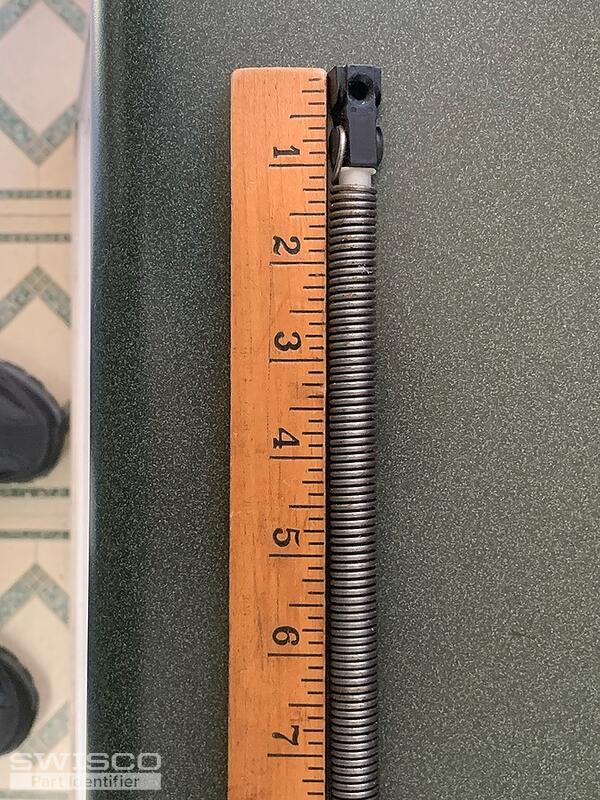

Thumbnail of the uploaded file named Balance_Top.jpg

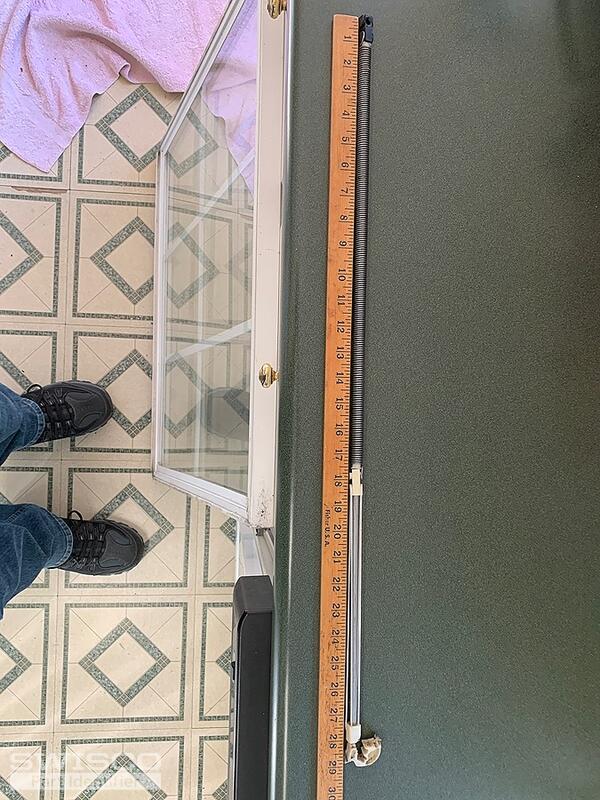

Thumbnail of the uploaded file named Balance_whole.jpg

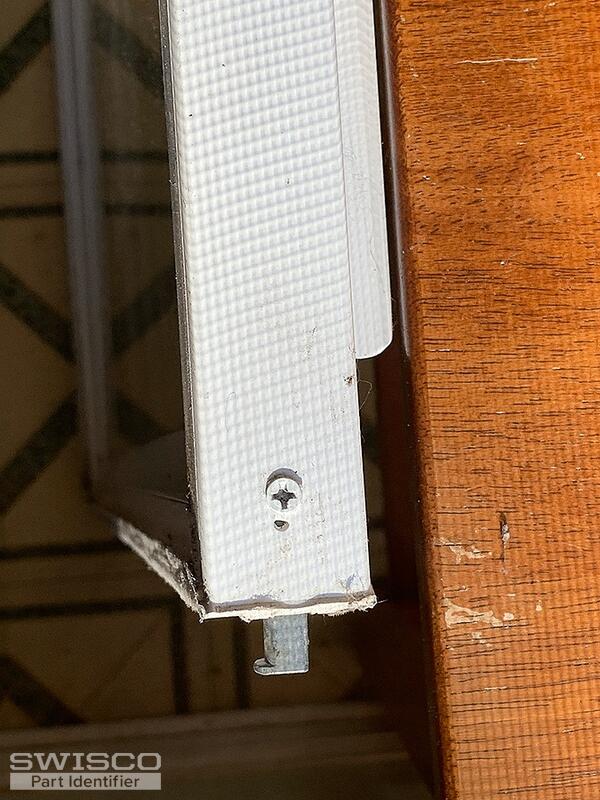

Thumbnail of the uploaded file named Window_Bottom.jpg
Profile picture of Casey
Casey from SWISCO responded:
January 28, 2022

Hello,

Your old-style rod balance is no longer available but there is a channel balance that is known to be a direct replacement. Take a look and compare the specifications of the S775-28 channel balance with a 29B strength option to yours. Thank you!
A home owner from Mount Holly NC says:
February 2, 2022
Thank You Casey! I have only done 2 of the 7 windows so far, but the S775-28 channel balance seems like a perfect fit and so easy to do. Just wanted to thank you for your help. Robert
Profile picture of Casey
Casey from SWISCO responded:
February 3, 2022

I'm happy to hear that your project is going well so far! Please let us know if there is anything else that we can help you with.
