Looking for parts

Start a new Discussion

Contractor

Jul 8, 2023 2:03 pm

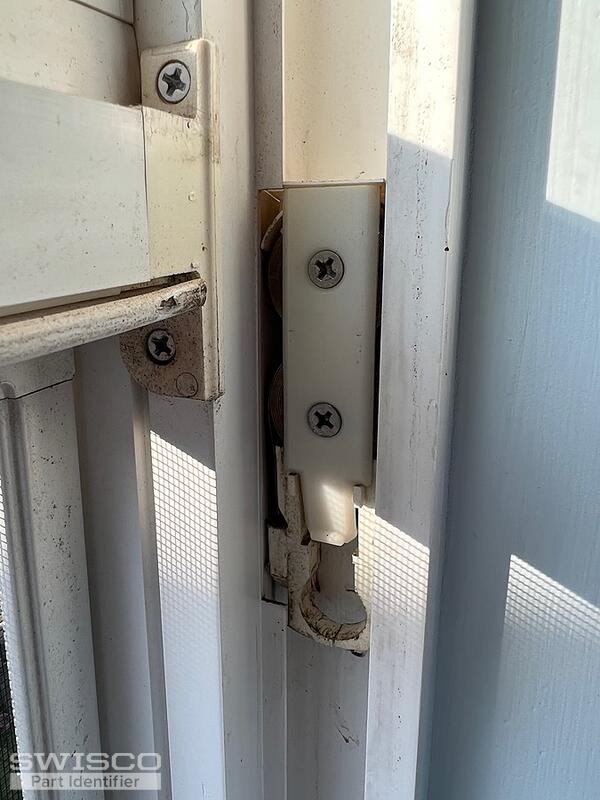

Hi please do you have from this Balance thank you

1 user uploaded image

5 Replies

Bob from SWISCO

Jul 9, 2023 9:48 pm

Thanks for posting. This looks like a 15-180 Pivot Shoe, a 15-181 Double Clip, and 15-182 Bushing. This set up uses Series 190 Coil Balances. Let me know if you have further questions.

Contractor

Jul 9, 2023 11:04 pm

Thank you for your response, so are you sure those are the parts that I need to replace the balance shoe, because it's not clear for me how and where I have to use the balance bushing.
Please if you have a video show me how to replace the same balance that will be great.
And is it same size or there is different sizes?

Thank you very much.

Contractor

Jul 9, 2023 11:09 pm

And how can I know what size should I get from series 190 coil balance ?

Tom from SWISCO

Jul 10, 2023 2:01 pm

Hello! Bob's not here today, but I'm happy to help with this inquiry.

Looking at your original photos, I'm very confident that the parts he recommended will work. The 15-182 bushing fits over the posts on the 15-181 clip; they work as a kind of "cushion" between the spring and the post. You almost certainly have them, you just can't see them while they're installed.

Same goes for the Series 190 stamp option; your springs have stamps printed on the band, but you have to remove them first to read what they say.

At this stage, your next step should be removal to confirm all relevant details. We don't have a video on this exact assembly, but we have a general guide that you may find helpful.
