Looking for replacement 2 hole tilt stud / pivot pin

A quick learner from Chicago says:
August 4, 2021

One of our window studs broke and I'm searching for a replacement. I am also interested in finding a new pivot shoe/assembly as well, since one of our windows does not have one installed on one side. Thanks for any help you can provide!

Thumbnail of the uploaded file named Pivot Pin_reduced Page 004.jpg
Thumbnail of the uploaded file named Pivot Pin_reduced Page 003.jpg
Thumbnail of the uploaded file named Pivot Pin_reduced Page 002.jpg

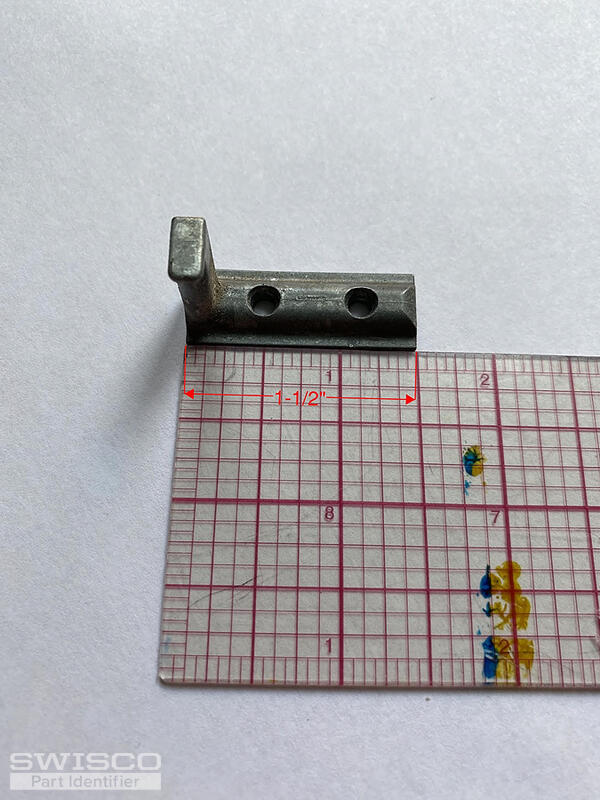

Thumbnail of the uploaded file named Pivot Pin_reduced Page 001.jpg

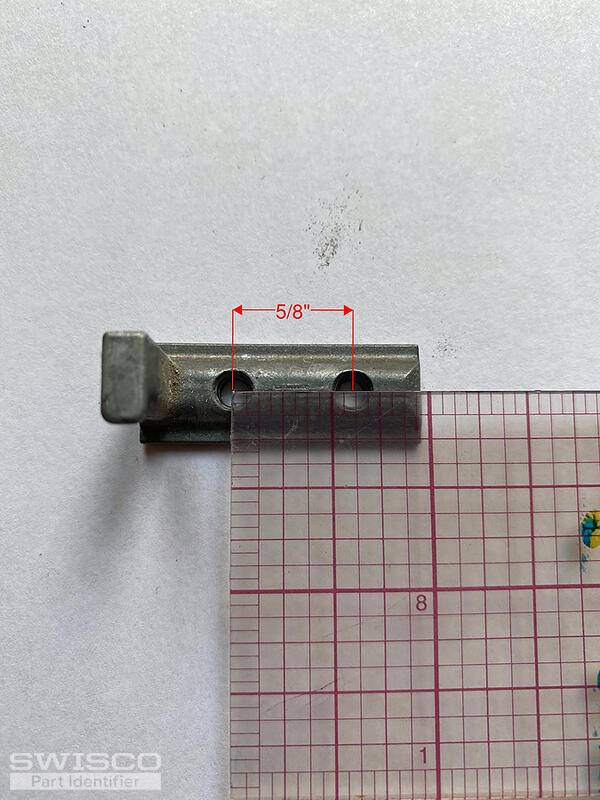

Thumbnail of the uploaded file named Pivot Pin_reduced Page 005.jpg
Profile picture of Paul
Paul from SWISCO responded:
August 10, 2021

Hello,

The closest side mounted pivot bar we carry is our 26-402. Compare our dimensions to yours and see if you can use this as a replacement.
Side Mount Pivot Bar
Side Mount Pivot Bar
26-402
$1.38
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
