Looking for replacement balances and sash attachment

Home Owner from Utah

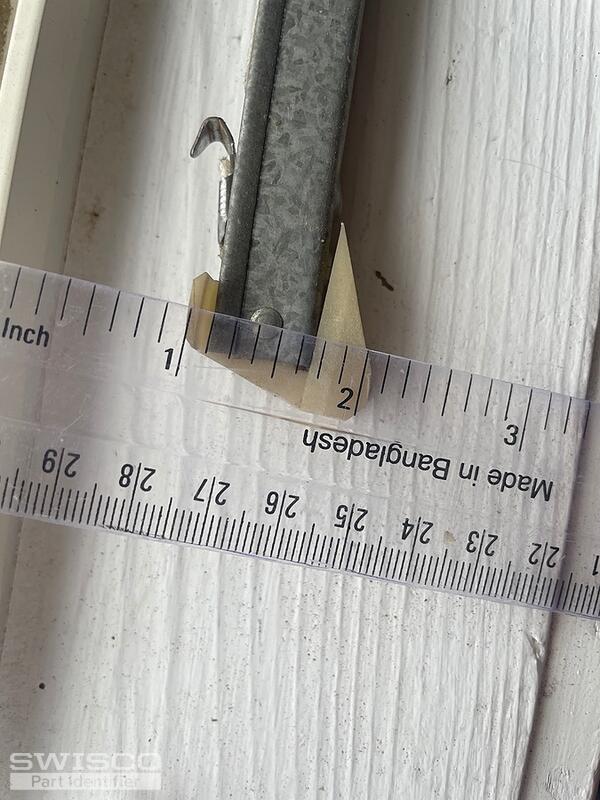

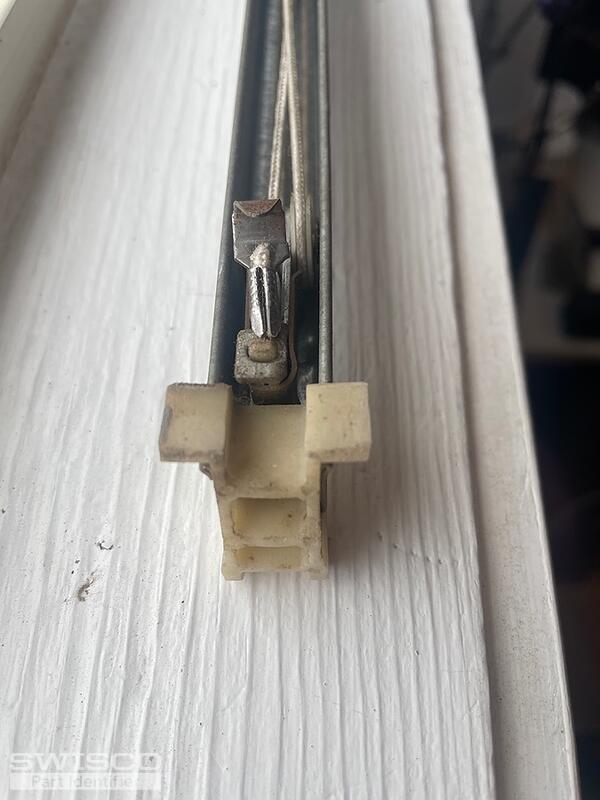

Hello, I am looking to replace these window balances and I also need a couple of the component that attaches the balances to the window sash. I would like assistance purchasing the right parts as it doesn't seem like I can find an exact match for the 14 5 ET CMC 2 or the corresponding sash fitting. Thank you for your help.
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for your post! I've narrowed down your balances to a few possible options but I'll need see just one more photos to determine the correct match. May I see a photo of the entire spring side of the channel?

I am particularly looking to see a photo of the piece connecting the spring/string in the middle of the balance channel.

Please don't hesitate to reach out with any questions you might have!

Home Owner from Utah

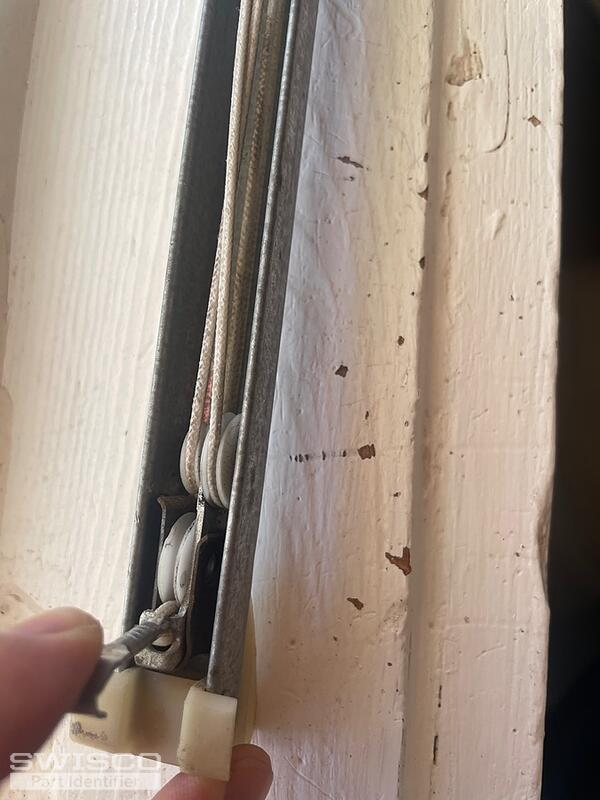

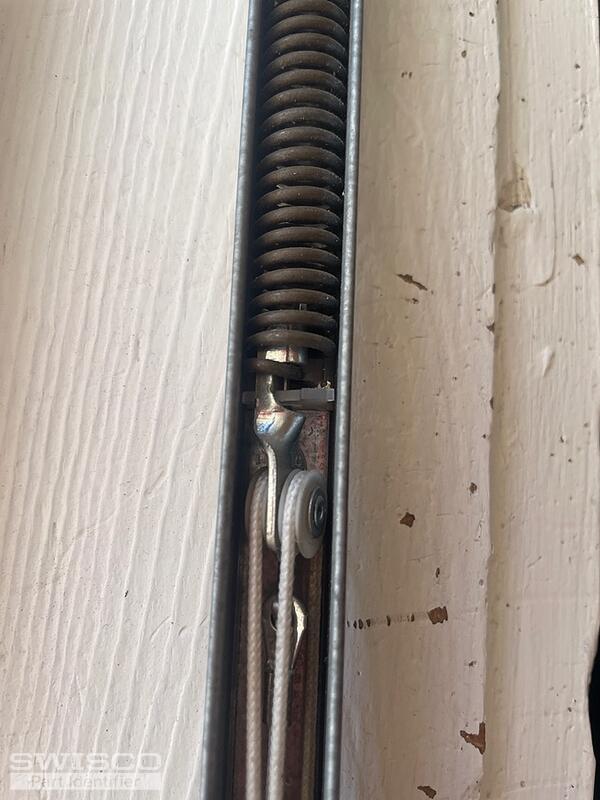

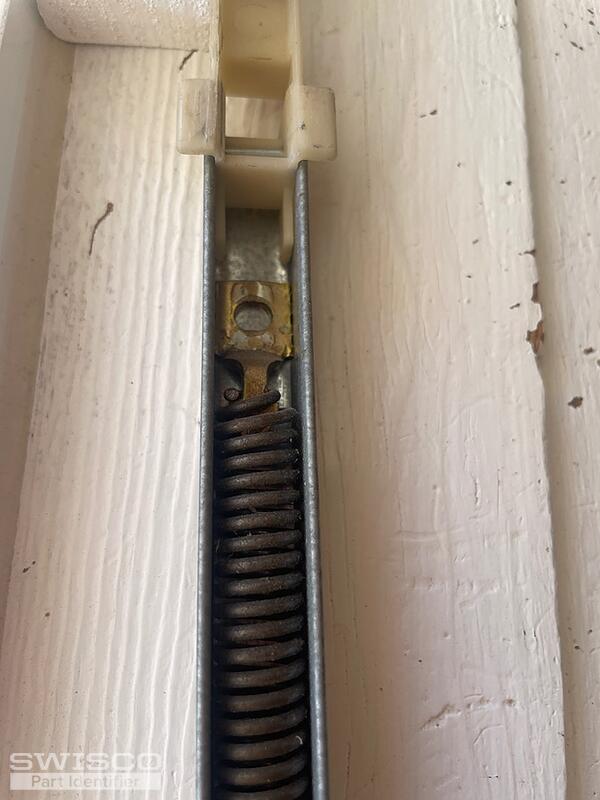

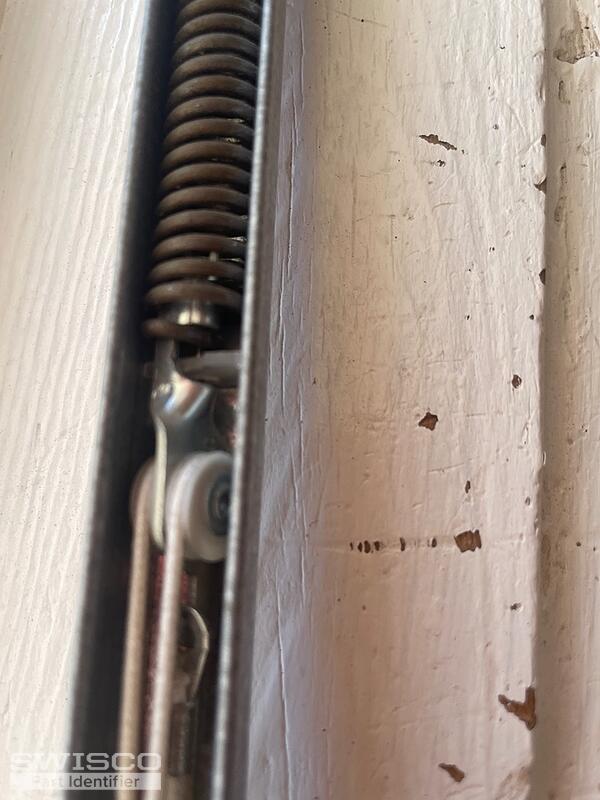

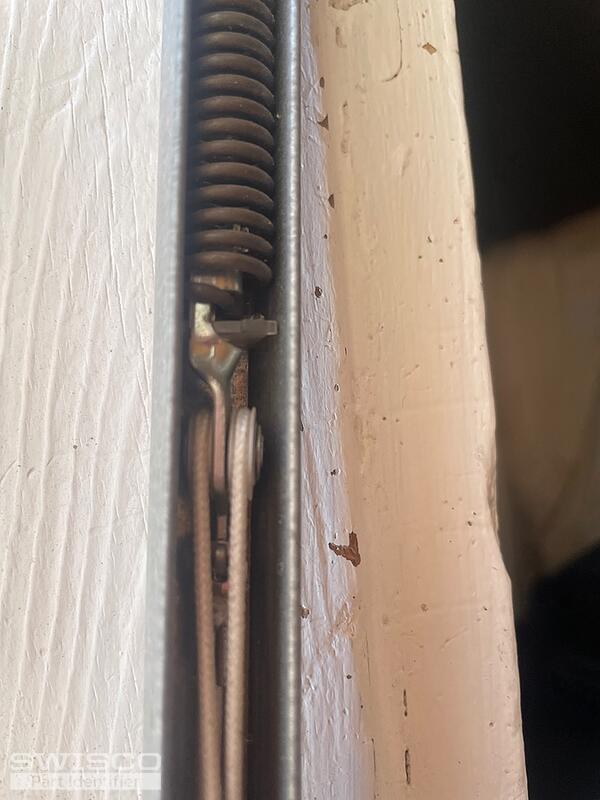

Thank you for the prompt reply. Here are additional photos of the spring and the middle connection of the balance.
I hope these photos help identify the correct replacement balances to purchase. Thank you,
Justine
5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photos. This window balance can be replaced with either the S380-15 or the S385-15. To determine the correct series, you'll need to measure the depth of your bottom shoe.

Our 1450 stamp should work for your 14 5 stamp but you may want to double check that the sash weighs between 13 to 17lbs.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
