Looking for Channel Balances

Start a new Discussion

Home Owner from Denver, Colorado

Sep 8, 2020 2:44 pm

Hi,

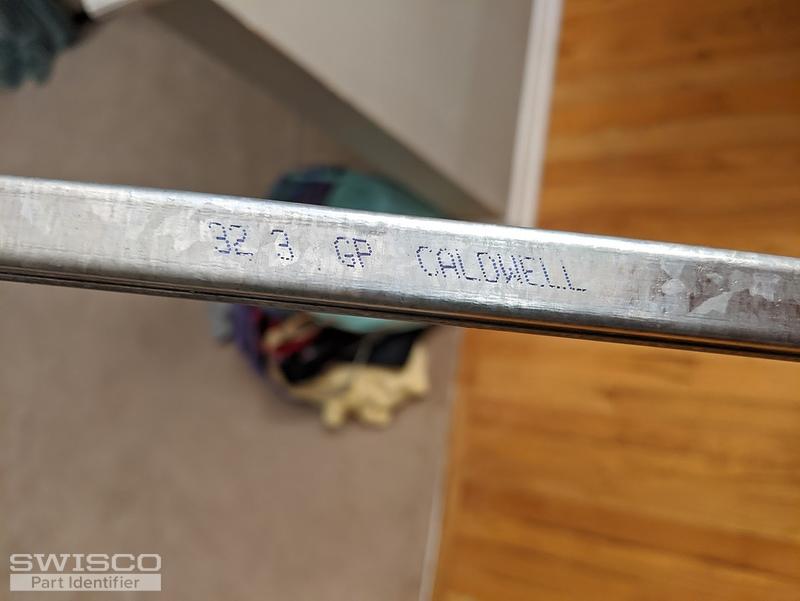

I'm looking for 32-3-GP Calwell balance replacement. Could you please suggest replacement parts?

4 user uploaded images

4 Replies

Bob from SWISCO

Sep 14, 2020 9:38 am

See our S380-33 or S385-33. The difference between these two balances is the depth of the bottom nylon shoe, so compare both with your old hardware to see what matches best. You will need a stamp option of 3230.

Quick Learner from Denver, Colorado

Feb 8, 2021 4:22 pm

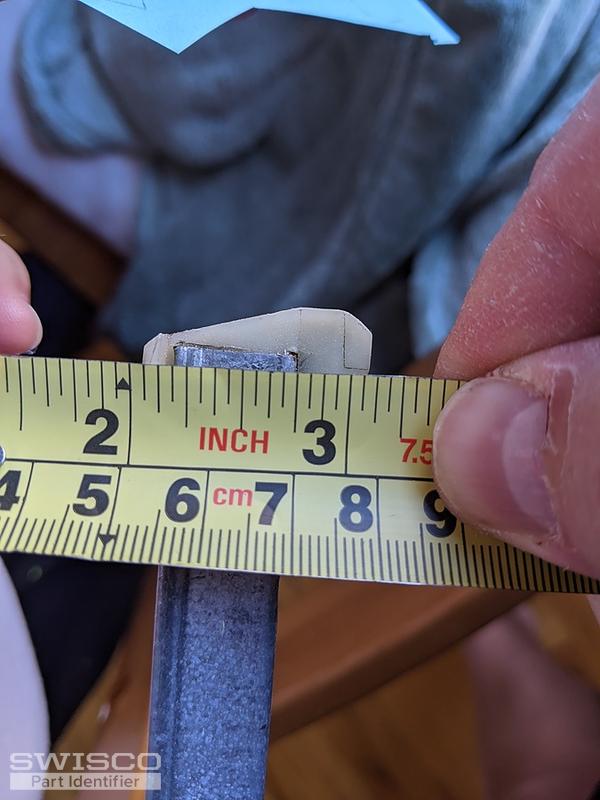

I've measures the bottom shoe and it's more like 1-2/32" but not 1" or 1-3/32". Which option would fit the best?

Thank you

1 user uploaded image

Bob from SWISCO

Feb 9, 2021 8:34 am

Generally, if the depth is anywhere more than 1", than the Series 385 is probably what you need. Even if it's slightly less than 1-3/32", the shoe can wear down a bit from wear and tear. Just be absolutely certain that depth is greater than 1". Let me know if you have further questions.
