Looking for replacement window shoe & assembly

Home Owner from Tierra santa

Aug 11, 2024 5:26 pm

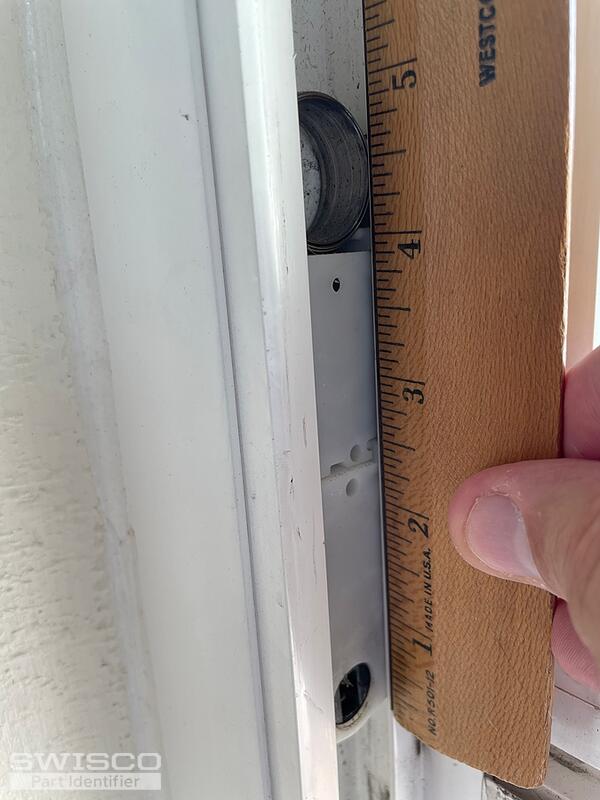

25-year-old window shoe assembly broke. Seeking replacement shoe assemblies for double hung windows. Uncertain as to best specific option.

1 user uploaded image

8 Replies

Bob from SWISCO

Aug 11, 2024 6:20 pm

Hello there. At first glance, this looks like it might be a 15-087 Shoe and 15-086 Tandem Unit. However, the cam that accepts the pivot bar from the window sash looks a bit different. Please send a clearer photo of the metal cam to be certain, as well as the pivot bar that fits into it. We should be able to narrow this down further from there.

Detail of 15-087

Home Owner from Tierra santa

Aug 12, 2024 12:42 pm

The right-side pin has one screw nearly stripped, so I don't want to pull the window out again. However, the shoe is definitely U-shaped (similar to the photo above), as is the window's pin. Is this enough information in order for you to make a determination between a 15-087 Shoe and 15-086 Tandem Unit?

Bob from SWISCO

Aug 12, 2024 3:10 pm

If you believe the cam style to be the same as your original part, then the 15-087 and its constituent parts would be my top recommendation. You may place an order for these parts directly on our site at your convenience.

Home Owner from Tierra santa

Aug 12, 2024 5:58 pm

Awesome! I'll so immediately!

Bob from SWISCO

Aug 13, 2024 9:07 am

Awesome, thanks so much for considering us! And please don't hesitate to reach out if you had any other questions, we're always here to help.

Home Owner from Tierra santa

Aug 13, 2024 11:54 am

Hello again. Actually, I do have another question. While the shoe is the right one, I will need the springs as well. Is there a combined "kit" that has two springs within a housing that connects to the shoe?

Bob from SWISCO

Aug 14, 2024 2:26 pm

We sell the Series 180 spring, which is compatible with all the parts mentioned so far, but it's only sold separately. We do not sell these as complete kits unfortunately.
